Reliable fiber management is essential in modern communication networks. As data traffic continues to increase across data centers, telecommunications rooms, enterprise networks, broadband access systems, security installations, and industrial communication environments, passive fiber infrastructure must provide more than simple connection points. It must protect delicate optical fibers, organize cable routes, simplify installation, support maintenance, and make future network changes easier to manage.
The SMT-2209-24P-1U Sliding Type Rack Mount Fiber Optical Patch Panel Terminal Box is designed for these practical requirements. It combines a compact 1U rack-mounted form factor with a sliding structure and a 24-port fiber connection capacity. The result is a fiber termination and distribution platform intended to make optical cable management more orderly, accessible, and efficient in standard equipment cabinets and network racks.
Unlike a basic fixed patch panel, a sliding fiber optical patch panel can be pulled forward to provide improved access to adapters, splice areas, pigtails, and internal cable routing. This design can reduce the difficulty of installation and inspection, particularly when several devices are installed closely together in a cabinet. It also helps technicians work from the front of the rack without repeatedly removing the entire enclosure.
The product is part of a broader structured cabling and optical fiber product portfolio manufactured by Yuyao Simante Network Communication Equipment Co., Ltd. The company integrates product design, development, sales, service, injection molding, assembly, testing, and customization capabilities. Its long-term experience in network communication equipment supports the development of practical passive infrastructure for copper and fiber structured cabling systems.
This article examines the design value, installation advantages, manufacturing strengths, application scenarios, maintenance benefits, and purchasing considerations associated with the 1U sliding rack mount fiber optical patch panel terminal box.
SMT-2209-24P-1U Sliding type Rack Mount Fiber Optical Patch Panel Terminal box
1. The Role of a Fiber Optical Patch Panel in a Structured Cabling System
A fiber optical patch panel is a passive equipment enclosure used to terminate, organize, protect, and interconnect optical fibers. It provides a controlled transition between incoming fiber optic cables and outgoing patch cords or equipment connections. In a typical network, the panel may be positioned in a server cabinet, telecommunications rack, equipment room, distribution cabinet, or optical distribution frame.
Fiber cables contain glass or polymer optical elements that transmit information through light. Although the optical fiber itself is extremely small, the cable assembly must be handled carefully. Excessive bending, pulling, twisting, crushing, or poorly controlled routing can reduce transmission performance or make future maintenance difficult. A properly designed patch panel creates a dedicated space in which these fibers can be terminated and arranged safely.
The panel also provides a clear physical interface between permanent cabling and active equipment. Instead of connecting a long incoming cable directly to a switch, optical line terminal, media converter, or transmission device, installers can terminate the cable at the patch panel and use manageable patch cords for equipment connections. This arrangement makes network changes less disruptive and improves the visual organization of the rack.
In structured cabling, organization is directly connected with reliability. A clearly labeled and logically arranged fiber panel helps technicians identify ports, trace circuits, replace patch cords, and isolate faults. A poorly arranged panel can create congestion, accidental disconnections, and unnecessary service interruptions. For this reason, the mechanical structure of a fiber patch panel is as important as its port capacity.
Fiber termination and distribution
The SMT-2209-24P-1U terminal box is designed for rack-mounted fiber termination and distribution. Its 24-port configuration allows multiple optical connections to be concentrated in a compact horizontal space. The 1U height is suitable for standard 19-inch equipment racks and cabinets, making it easier to combine the panel with switches, optical distribution equipment, cable managers, power equipment, and other network components.
In many installations, the panel serves as the demarcation point between backbone fiber and shorter internal patch cords. This approach allows the permanent link to remain stable while equipment-side connections can be changed as network requirements evolve. It can therefore support both initial deployment and later expansion or reconfiguration.
Protection of optical components
Optical fibers and splice assemblies require protection from accidental contact, sharp edges, excessive movement, and unstructured cable pressure. A dedicated terminal box helps keep the internal components within a controlled enclosure. The enclosure also reduces exposure to dust, handling damage, and unintentional pulling during work on neighboring rack equipment.
Protection is especially important in dense network rooms. When numerous cables are installed in a small cabinet, an unprotected fiber route can become difficult to inspect and vulnerable to disturbance. A purpose-built panel gives installers a defined location for fiber entry, termination, routing, and patching.
2. Product Design Overview
The SMT-2209-24P-1U is identified by four important design characteristics: a 24-port configuration, a 1U rack-mount format, a sliding construction, and a fiber optical patch panel terminal box function. Each characteristic contributes to the product’s suitability for compact, serviceable network installations.
| Product characteristic | Practical value | Typical installation benefit |
|---|---|---|
| 24-port fiber configuration | Provides a concentrated interface for multiple optical connections | Supports organized fiber distribution in a limited rack area |
| 1U rack-mount format | Uses a compact standard rack height | Preserves cabinet space for active and passive equipment |
| Sliding structure | Allows the working section to move forward for access | Improves installation, inspection, and maintenance convenience |
| Terminal box design | Creates a protected area for fiber termination and routing | Helps reduce cable disorder and accidental handling damage |
| Fiber patch panel application | Separates permanent cabling from equipment patching | Supports easier changes, troubleshooting, and circuit identification |
Compact 1U construction
Rack space is a valuable resource in server rooms and telecommunications cabinets. A 1U panel can be installed without occupying the space required by taller fiber distribution frames. This is particularly useful in network upgrades where the cabinet already contains switches, routers, power distribution units, cable managers, and backup equipment.
The compact height also helps create a predictable rack layout. Installers can reserve 1U positions for fiber termination at the top, middle, or bottom of a rack according to the cable entry plan. The panel can be combined with horizontal cable management components to maintain controlled patch cord routing.
24-port capacity
The 24-port arrangement offers a balance between connection density and working accessibility. It provides more termination positions than a small low-density enclosure while avoiding the congestion that may occur when too many ports are concentrated in a very limited working area. For many access, distribution, enterprise, and small data center applications, 24 ports can provide a practical level of capacity for initial deployment and moderate expansion.
Port capacity should always be evaluated together with the selected adapter configuration, fiber type, connector type, splice method, and cable entry arrangement. The appropriate configuration depends on project requirements. The product can therefore be considered as a structured platform whose detailed connector and internal arrangement should be confirmed during technical selection.
Sliding access mechanism
The sliding design is one of the product’s main practical advantages. A fixed enclosure requires technicians to work through a restricted front opening or remove surrounding components to reach the internal fiber management area. A sliding tray or sliding working section can be pulled forward, making the termination area easier to see and reach.
This access method is useful during several stages of the product life cycle. During installation, technicians can route and organize fibers with more direct visibility. During commissioning, they can inspect connections and labels more efficiently. During maintenance, they can identify a port, check a patch cord, or inspect a fiber route without dismantling the entire rack arrangement.
The sliding structure may also improve safety and reduce unnecessary strain. Technicians do not need to reach as deeply into a crowded cabinet, and the risk of pressing against neighboring cables can be reduced. Better access can lead to more consistent workmanship because installers have a clearer view of the cable path and termination area.
3. Advantages Compared with Conventional Fixed Fiber Panels
Fiber panels vary significantly in mechanical design. A basic fixed panel may provide termination positions but offer limited access to the internal working area. The sliding type addresses several of these limitations while retaining the space efficiency of a standard rack-mounted enclosure.
Improved maintenance access
Maintenance access is a major differentiator. In a fixed panel, technicians may need to work through a narrow front opening. If internal splice trays, pigtails, or routing channels are located behind the front interface, visibility can be restricted. A sliding assembly allows the working area to be brought closer to the technician.
This can shorten routine inspection time. A technician may more easily check whether a connector is fully seated, confirm the identity of a port, inspect cable slack, or review the internal routing arrangement. Improved access is particularly valuable in cabinets installed against walls or in narrow equipment rooms where access from the rear is limited.
Reduced disruption during service work
When maintenance is performed on a fixed and crowded panel, cables connected to neighboring ports may be disturbed accidentally. The technician may need to move patch cords or remove equipment to reach the intended area. The sliding design can reduce the need for such intervention, helping preserve the stability of adjacent connections.
Any fiber maintenance procedure must still be performed carefully. Technicians should follow the site’s change-control process, identify the correct circuit, protect disconnected connectors, and avoid exceeding the permissible bend and pulling conditions of the installed cable. However, a more accessible panel makes it easier to follow these procedures correctly.
Better use of rack space
A sliding panel does not require a large floor-standing fiber distribution frame for a moderate number of connections. It can provide a compact interface within the same cabinet that houses active network equipment. This reduces the need for additional wall or floor space and can simplify cable pathways between the optical panel and network devices.
Compared with a larger enclosure, the 1U format may also help project planners standardize cabinet layouts. Multiple panels can be distributed across different racks, or a single panel can be positioned close to the equipment that uses its connections. The best arrangement depends on the network topology and cable lengths, but the compact form provides flexibility.
More orderly fiber management
A well-organized patch panel provides designated positions for ports, labels, patch cords, and internal cable routing. This is superior to loose termination boxes or exposed connection points that can create confusion in a high-density cabinet. Orderly management supports faster fault isolation and reduces the chance of connecting a patch cord to the wrong circuit.
Clear organization also helps during future changes. A network may begin with only a portion of its available ports in use. As additional customers, devices, or services are added, spare positions can be identified and assigned without redesigning the entire termination area.
Professional appearance and project consistency
In enterprise, telecommunications, and data center installations, visual consistency is an important part of professional infrastructure. A standard rack-mounted panel creates a uniform appearance alongside other 19-inch equipment. Consistent installation improves documentation, makes cabinet inspection easier, and supports repeatable practices across multiple sites.
For contractors and system integrators, the use of standardized 1U panels can simplify installation planning. Rack elevations, bill-of-materials documents, labeling methods, and service procedures can be developed around a consistent form factor.
4. Manufacturing Strength and Product Development Capability
The performance of a fiber patch panel depends not only on its visible design but also on the manufacturing discipline used to produce it. Dimensional accuracy, material consistency, assembly quality, surface finish, mechanical stability, and inspection procedures all influence the field experience of the product.
Yuyao Simante Network Communication Equipment Co., Ltd. has developed its business around network cabling solutions and optical fiber products. The company integrates design, development, sales, and service, allowing product requirements to move through a connected development and manufacturing process rather than being treated as isolated activities.
Experience in network communication products
Nearly 20 years of service in the network communication field provide a foundation for understanding installation conditions and customer requirements. Fiber patch panels are used in practical environments where technicians need dependable interfaces, manageable cable routing, and straightforward maintenance. Product development based on these conditions can help avoid designs that look efficient on paper but are inconvenient in actual cabinets.
The company’s wider product range includes keystone jacks, patch panels, wall face plates, data sockets, and related structured cabling components. This broader product knowledge is valuable because copper and fiber systems are often installed together. A manufacturer familiar with both systems can better understand the relationship between rack organization, cable management, outlet layout, and equipment connectivity.
Engineering and technical personnel
The company maintains a research and development system supported by more than 10 engineers and over 30 full-time technical personnel. This technical team contributes to product improvement, manufacturing support, quality control, and production updates.
For a rack-mounted fiber terminal box, engineering work may involve the relationship between the sliding mechanism, enclosure dimensions, mounting positions, port alignment, cable entry, internal working space, and assembly sequence. Each detail affects installation convenience and long-term usability. A dedicated technical team can evaluate these factors during product development and manufacturing preparation.
Injection molding resources
Plastic components are widely used in structured cabling products because they can provide electrical insulation, dimensional repeatability, design flexibility, and controlled production cost. The company operates automatic and semi-automatic injection molding equipment, including 10 fully automatic injection molding machines and 20 semi-automatic machines.
Injection molding capability can support consistent production of components used in network communication equipment. Stable molding conditions help maintain repeatable dimensions, fit, appearance, and assembly performance. For products that include covers, holders, clips, guides, or other molded parts, dimensional consistency can influence the quality of the finished product.
Internal manufacturing resources may also improve responsiveness. Instead of relying entirely on external component suppliers, a manufacturer with its own molding capacity can coordinate mold adjustment, material management, production scheduling, and quality inspection more directly. This is especially useful for custom orders or product updates.

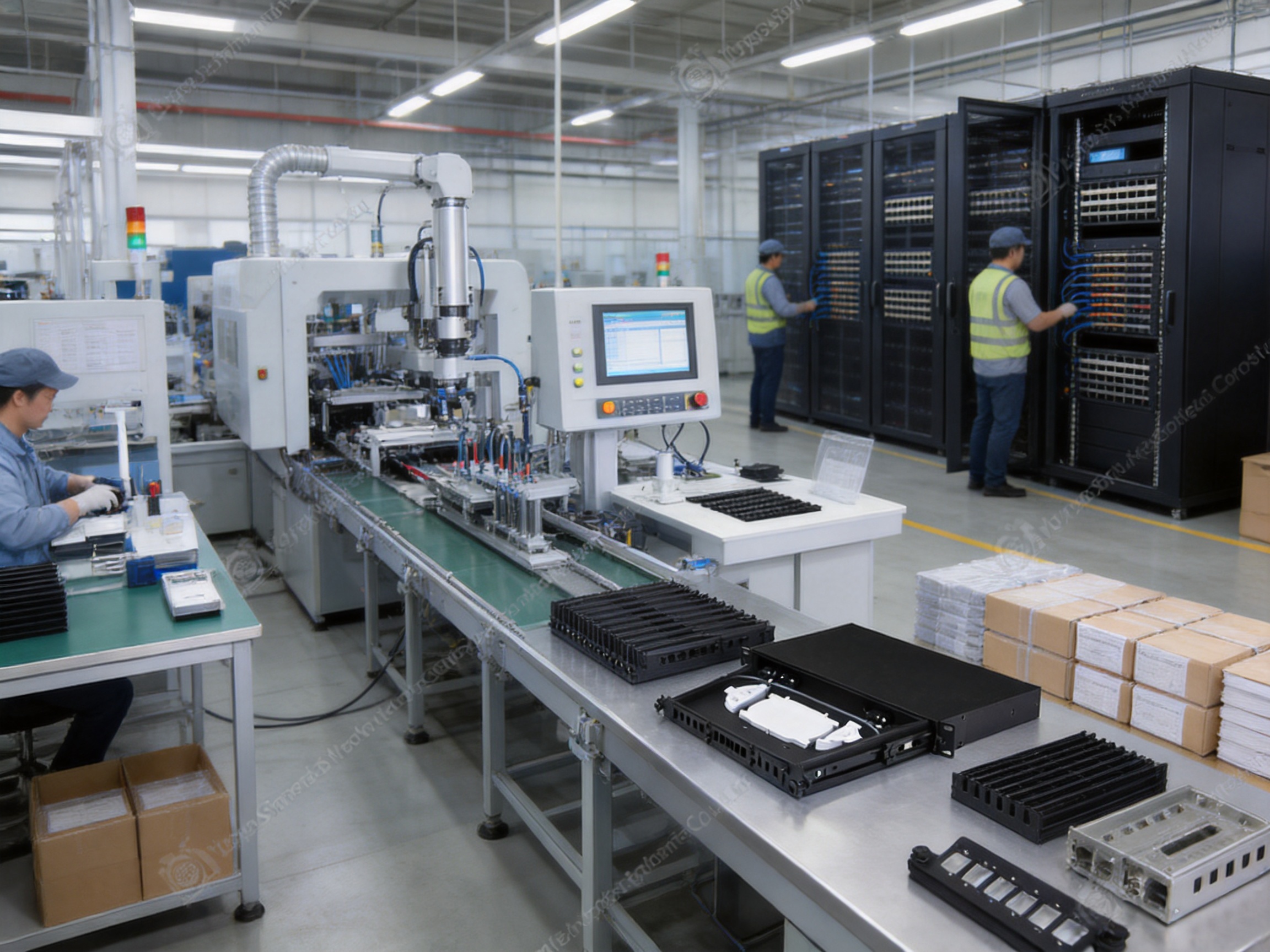

Automated assembly capability
The company also operates multiple automatic installation machines and maintains 10 regular and customization production lines. Assembly equipment and organized production lines can help improve repeatability across batches. In a fiber patch panel, repeatable assembly is important because the sliding action, mounting alignment, panel fit, and internal component positioning must remain consistent from one unit to the next.
Automation does not replace technical supervision. It works together with process control, operator training, inspection, and production documentation. The combination of equipment and experienced personnel can create a more stable manufacturing environment than manual assembly alone.
Production capacity and supply support
The factory maintains an annual output of more than 9 million units across its product range. This production scale indicates an established manufacturing system capable of supporting regular orders as well as larger project requirements. For distributors, installers, and OEM customers, supply continuity is an important consideration when selecting a network component manufacturer.
High production capacity can also support consistent product availability, coordinated delivery schedules, and repeat orders for multi-site deployments. Customers should still confirm product-specific lead times, order quantities, packaging requirements, and customization details before placing a project order.
5. Quality Management and Testing Considerations
Fiber patch panels are passive components, but their quality has a direct effect on installation efficiency and network reliability. A panel may not generate or amplify a signal, yet poor mechanical construction, inaccurate dimensions, weak assembly, or inadequate protection can create problems throughout the life of the network.
Quality management should begin at the design source. Material selection, component geometry, assembly sequence, and inspection points should be considered before mass production. This approach helps reduce the risk of producing a component that cannot be assembled consistently or does not perform well in a real rack.
Mechanical quality
The sliding structure should operate smoothly and remain stable when extended for installation or maintenance. Mounting holes and front-panel dimensions should be consistent with the intended rack environment. The enclosure should support organized internal routing without creating sharp contact points or unnecessary pressure on fiber cables.
Mechanical inspections may include dimensional checks, sliding operation checks, attachment verification, visual inspection, and assessment of surface quality. The exact inspection plan depends on the product design and customer requirements, but the objective is to confirm that the finished unit can be installed and serviced consistently.
Component and assembly consistency
A fiber panel often includes several different parts, including the outer enclosure, front interface, adapter holders, internal routing elements, fasteners, sliding hardware, and protective components. Each part must fit correctly within the final assembly. Inconsistent components can cause loose interfaces, difficult movement, misalignment, or unwanted stress on internal fibers.
Controlled assembly processes help reduce these risks. Production personnel can follow defined work instructions, while inspection staff can verify key points during and after assembly. Where automation is used, machine settings and maintenance also become important factors in process stability.
Testing for customer requirements
The company emphasizes performance testing to meet comprehensive customer requirements. Testing can be adapted to the product type and project specification. For a fiber optical patch panel, customers may request checks related to mechanical operation, appearance, component fit, connector compatibility, packaging, labeling, and other project-specific criteria.
Optical performance is normally determined by the installed adapters, connectors, pigtails, splice methods, and fiber components. For this reason, the complete optical link should be evaluated using the appropriate test procedures and instruments. The patch panel provides the management and termination platform, while the assembled optical system must be verified according to the project’s technical standard.
6. Installation Guidance
Correct installation is necessary to achieve the full benefit of a sliding rack mount fiber patch panel. The installer should review the rack layout, cable entry direction, port assignment, adapter type, fiber mode, labeling plan, and maintenance access before beginning work.
Rack preparation
The rack or cabinet should be structurally suitable for a standard 1U rack-mounted component. The installation position should provide enough clearance for the panel to slide forward without striking a door, neighboring equipment, vertical cable managers, or other obstructions.
Installers should check that the rack is level and that mounting rails are correctly aligned. Misaligned rails can make installation difficult and may place unnecessary stress on the panel or sliding mechanism. Appropriate rack screws and cage nuts should be selected for the cabinet design.
Cable preparation
Incoming optical cables should be routed to the panel with sufficient service length. Excess fiber should be managed in a controlled manner rather than compressed into a small space. The cable route should avoid sharp bends, excessive pulling force, and areas where the cable may be crushed by rack doors or neighboring equipment.
Before termination, the installer should confirm the cable type and the required connector or splice arrangement. Fiber should be cleaned and inspected according to accepted fiber installation practices. Dust or contamination on optical end faces can cause insertion loss, reflection, or unreliable service.
Port assignment and labeling
Each port should be labeled according to the project documentation. Labels may identify the rack, panel, port number, destination, cable number, service, or circuit reference. A consistent labeling scheme makes future maintenance faster and reduces the chance of incorrect patching.
The 24-port layout should be assigned before final connection whenever possible. A port schedule can identify active ports, reserved ports, backbone links, equipment connections, and expansion capacity. Good documentation ensures that spare capacity remains visible instead of being mistaken for an unused or unidentified connection.

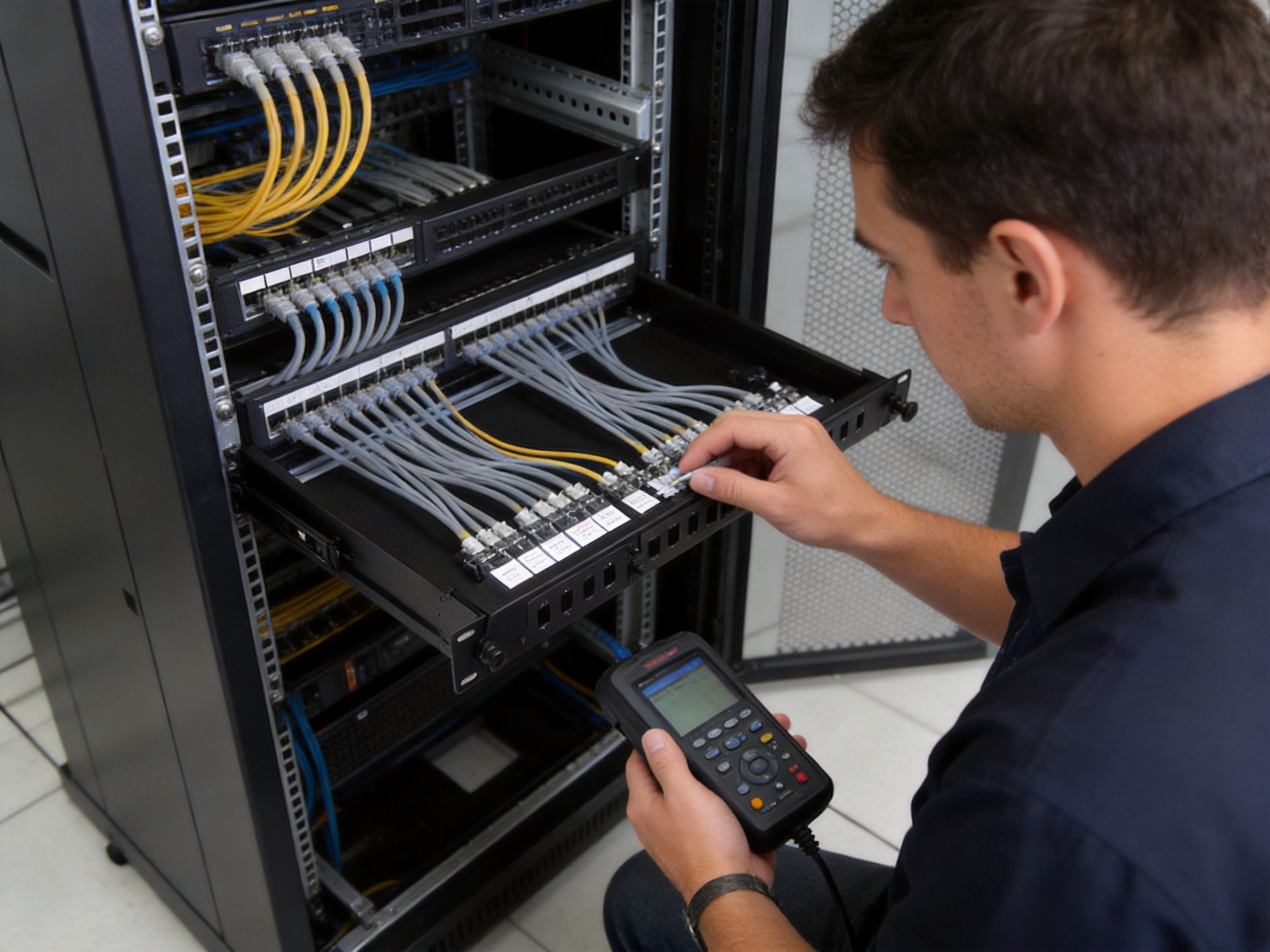

Use of the sliding mechanism
The sliding section should be extended carefully and supported according to the product’s intended operating method. Technicians should avoid pulling on fiber cables, patch cords, or internal components to move the tray. The panel should be returned to its operating position after installation or inspection so that the enclosure remains properly positioned within the rack.
During service work, technicians should maintain control of patch cords and ensure that fiber bend conditions remain acceptable while the panel is extended. Any movement should be slow and deliberate, particularly when the panel is populated with multiple connections.
Final inspection
After installation, the technician should verify rack attachment, panel alignment, port labels, fiber routing, cable slack, connector seating, and the condition of protective elements. The sliding operation should be checked before the cabinet door is closed. The completed optical links should then be tested and recorded in the project documentation.
7. Application Scenarios
Enterprise network rooms
Enterprise networks often combine fiber backbones with copper horizontal cabling. A 1U fiber panel can provide an organized termination point for inter-floor links, building-to-building connections, server room uplinks, or connections between network cabinets. The compact design is suitable for environments where rack space is limited and equipment is frequently upgraded.
Data centers
Data centers require high-density organization, clear labeling, and efficient maintenance procedures. The sliding design can be useful in cabinets where multiple devices are installed close together and rear access is restricted. It allows technicians to inspect fiber connections from the front and can help separate permanent backbone cables from equipment patch cords.
Data center operators should select the exact connector arrangement and fiber configuration according to the installed transceivers, trunk cables, patch cords, and optical architecture. The panel should be integrated into the overall cabinet design rather than treated as an isolated component.
Telecommunications equipment rooms
Telecommunications rooms may contain distribution equipment, access systems, transmission units, optical network terminals, and power systems. A rack-mounted terminal box can consolidate optical terminations and create a clear interface between outside plant or backbone cables and indoor equipment.
The sliding structure is particularly helpful where cabinets are densely populated or positioned near walls. Front access can reduce the time required for inspection and make planned changes more manageable.
Broadband and access networks
Fiber access networks require organized termination and distribution at many points, including central offices, headend rooms, network cabinets, and building distribution locations. A 24-port panel can support a moderate number of connections in a compact footprint. It may be used as part of a larger distribution arrangement, depending on the required port density and network architecture.
Security and monitoring systems
Large security systems often use fiber to connect cameras, control rooms, remote buildings, and network switches. A dedicated fiber panel can help keep video and data links organized while making troubleshooting easier. Clear port labeling is especially valuable when a network supports many remote locations.
Industrial communication systems
Factories, transportation facilities, utilities, and automation environments may use fiber to overcome electromagnetic interference or cover long distances. A rack-mounted panel can provide a protected transition between field fiber cables and communication equipment. Industrial users should verify that the installation environment, temperature, vibration, dust control, and enclosure requirements are suitable for the selected product.
OEM and customized projects
Different network projects may require variations in port configuration, labeling, packaging, adapter arrangement, or product appearance. The manufacturer supports OEM and ODM projects, allowing customers to discuss customized requirements. Customization should be reviewed early so that engineering, tooling, testing, packaging, and delivery schedules can be coordinated.
8. Advantages for Distributors, Contractors, and System Integrators
The product offers value not only to end users but also to companies that design, supply, and install communication infrastructure.
For distributors
Distributors can benefit from a compact product that serves several common applications. The 1U rack format is familiar to network installers, while the 24-port capacity covers many small and medium fiber distribution needs. A sliding structure provides a clear selling point compared with basic fixed panels.
A manufacturer with a broad structured cabling portfolio can also support product bundling. Distributors may source fiber panels together with copper patch panels, keystone jacks, face plates, data sockets, and other network accessories. This can simplify purchasing and help create a more consistent product offering.
For contractors
Contractors need products that are easy to install, document, and service. The front-access sliding design can reduce the difficulty of working in crowded cabinets. Standard rack mounting helps contractors prepare repeatable installation procedures, while the 24-port interface can simplify port scheduling and labeling.
Contractors should still confirm the technical requirements of each project, including connector standards, fiber type, splice capacity, cable entry method, rack depth, and environmental conditions. A clear technical confirmation before delivery helps prevent installation delays.
For system integrators
System integrators often combine products from several categories into a complete communication solution. A manufacturer that understands both copper and fiber structured cabling can provide useful coordination across the passive infrastructure. The panel can be integrated into network, security, data center, building automation, and smart home projects.
Engineering support, product customization, and testing cooperation can also be valuable for integrators developing repeatable cabinet designs. OEM and ODM capability may help integrators adapt the product to project-specific branding, labeling, packaging, or interface requirements.
9. Comparison with Alternative Fiber Termination Solutions
When selecting a fiber termination method, buyers may compare rack-mounted sliding panels with fixed panels, wall-mounted boxes, standalone splice closures, and larger optical distribution frames. Each option has an appropriate use case.
Compared with fixed rack panels
The main advantage of the sliding model is access. A fixed panel may be suitable when the installation is simple, the cabinet is spacious, and internal maintenance is infrequent. The sliding type is more attractive when technicians need regular access or when the rack is densely populated.
The trade-off is that the sliding assembly may require additional attention to cabinet clearance and mechanical operation. Buyers should confirm the available depth and the space needed to extend the panel.
Compared with wall-mounted terminal boxes
Wall-mounted boxes can be appropriate for building distribution points, small communication rooms, or locations without equipment racks. However, they may not integrate as neatly with rack-mounted switches and transmission equipment. The 1U rack-mount panel is better suited to standardized cabinets and equipment-room layouts.
Compared with large optical distribution frames
Large optical distribution frames provide high capacity for major central offices and backbone facilities. They may be unnecessary for a smaller cabinet or a moderate number of connections. The 24-port 1U panel offers a more compact alternative where space efficiency and front access are more important than very high density.
Compared with loose termination arrangements
Loose or improvised termination arrangements may reduce initial equipment cost but can create long-term problems. Uncontrolled cable routing, unclear labels, exposed connectors, and difficult maintenance can increase operational risk. A purpose-built panel provides a more professional and repeatable solution.
10. Selecting the Correct Configuration
Although the SMT-2209-24P-1U provides a defined 24-port, 1U sliding platform, the complete selection process should consider the entire optical link.
Connector requirements
The required connector type should match the patch cords, adapters, transceivers, and equipment interfaces used in the project. Common optical connector families have different dimensions and application practices. The customer should confirm whether the project requires simplex or duplex interfaces and whether a particular adapter arrangement is necessary.
Fiber type
Single-mode and multimode fiber systems serve different transmission requirements. The selected panel and associated components should be compatible with the fiber type used in the network. The panel itself is a passive management platform, but the adapters, pigtails, and patch cords must be selected consistently.
Splicing requirements
Some installations require fusion splicing between incoming cables and pigtails. Others may use pre-terminated trunk cables or direct adapter connections. The internal space and accessory arrangement should be confirmed according to the selected termination method.
Rack and cabinet conditions
Before ordering, buyers should check the rack width, mounting rail position, available depth, front-door clearance, rear cable access, neighboring equipment, and vertical cable management. Sliding products require sufficient extension space, so the cabinet layout must be reviewed carefully.
Documentation and customization
Projects with multiple cabinets or sites benefit from consistent labels, port numbering, packaging, and installation instructions. Customers should provide documentation requirements early. The manufacturer’s OEM and ODM capabilities may support special labeling, product configurations, or project packaging where appropriate.
11. Maintenance and Long-Term Operation
A fiber patch panel is designed to remain in service for many years, but good maintenance practices are necessary to preserve network reliability.
Routine inspection
Routine inspections should check that the panel remains securely mounted, labels are legible, patch cords are not excessively bent, and the sliding mechanism operates correctly. Technicians should also inspect for dust accumulation, loose hardware, damaged cable jackets, and signs of accidental impact.
Connector cleanliness
Optical connectors should be cleaned and inspected before connection. Unused ports should be protected with suitable dust caps. Cleaning materials and inspection procedures should be compatible with the connector type. Contamination can spread from one connector to another, so careless handling should be avoided.
Change management
Every patching change should be recorded. Documentation should identify the original port, the new port, the destination, the responsible technician, and the date of the change. This information helps prevent confusion during later troubleshooting and supports accurate network records.
Protection during expansion
When new cables are added, installers should avoid pulling against existing terminations. New cable routes should be planned so that they do not block the sliding movement or overload the internal management area. Spare capacity should be preserved where possible to support future growth.
12. Sustainability and Operational Efficiency
Efficient fiber management can contribute to more sustainable network operation. A well-organized panel reduces the likelihood of accidental damage, unnecessary replacement, and repeated installation work. Easier maintenance can also reduce the time technicians spend in equipment rooms and lower the operational disruption associated with network changes.
Manufacturing efficiency is another part of product sustainability. Automatic injection molding, organized production lines, engineering process control, and repeatable assembly can help reduce defects and material waste. Stable production also supports longer-term product availability, which is valuable when customers need matching components for network extensions or repairs.
Customers should evaluate sustainability together with durability, repairability, packaging, shipping efficiency, and the expected service life of the installation. A compact 1U design can reduce the physical space required for moderate-capacity fiber distribution, which may be beneficial in facilities where cabinet space and cooling resources are limited.
13. Why Manufacturing Partnership Matters
Choosing a fiber patch panel is not only a product decision. It is also a supply-chain and engineering decision. A reliable manufacturing partner can support product consistency, technical communication, customization, quality testing, and repeat supply.
Yuyao Simante Network Communication Equipment Co., Ltd. combines product development with manufacturing resources and technical personnel. This integrated structure can help customers communicate requirements more directly. Instead of treating the panel as a generic catalog item, the manufacturer can review its role within a broader structured cabling solution.
The company exports products to Europe, Australia, Africa, the Middle East, and Southeast Asia. Experience across international markets can support an understanding of different customer expectations, packaging needs, documentation practices, and project requirements. Customers should still confirm applicable standards and certifications for their specific destination and installation environment.
OEM and ODM services further expand the possible partnership model. A customer may require a standard product for immediate deployment or a customized version for a long-term product line. In both cases, early communication about specifications, tooling, minimum order quantities, testing, and delivery planning is recommended.
14. Frequently Asked Questions
Q1: What is the main function of the SMT-2209-24P-1U?
The product is a 1U rack-mounted fiber optical patch panel terminal box designed to organize, terminate, protect, and distribute optical fiber connections. Its 24-port configuration provides a compact interface for fiber cabling in network cabinets and equipment racks.
Q2: What does the 1U designation mean?
1U refers to one standard rack unit of vertical space. The compact format allows the panel to be installed in a standard equipment rack while preserving additional space for switches, cable managers, power equipment, and other components.
Q3: What is the advantage of a sliding fiber patch panel?
The sliding structure brings the working area forward, improving visibility and access during installation, inspection, labeling, testing, and maintenance. It can reduce the need to remove neighboring equipment or reach deeply into a crowded cabinet.
Q4: Is the product suitable for data centers?
It can be suitable for data centers and other structured cabling environments where a compact, rack-mounted, front-access fiber management solution is required. The exact suitability depends on the connector configuration, fiber type, cabinet dimensions, project standards, and environmental conditions.
Q5: Can the panel be used with both single-mode and multimode fiber?
The panel is a passive fiber management platform, but the adapters, pigtails, patch cords, and other optical components must match the selected fiber type. The required configuration should be confirmed with the manufacturer before ordering.
Q6: Does the product support fiber splicing?
The product is intended for fiber optical termination and management. Whether a particular configuration supports the customer’s preferred splice method, splice tray, or internal accessory arrangement should be confirmed according to the project requirements.
Q7: What should be checked before installation?
Customers should check rack compatibility, available cabinet depth, sliding clearance, cable entry direction, connector type, fiber type, port assignment, labeling, splice requirements, and maintenance access. These checks help ensure that the panel fits the complete network design.
Q8: How does the product compare with a wall-mounted fiber box?
A wall-mounted box is useful where no equipment rack is available. The 1U sliding panel is better suited to standardized 19-inch racks and cabinets, especially when it must be installed near switches or other rack-mounted network equipment.
Q9: Does the manufacturer provide customization?
The company undertakes OEM and ODM projects. Customers can discuss customized product requirements, labeling, packaging, configuration, and other project details with the manufacturer’s technical and sales teams.
Q10: What manufacturing capabilities support this product range?
The company operates automatic and semi-automatic injection molding equipment, automatic installation machines, regular production lines, and customization production lines. Its engineering and technical personnel support product development, production improvement, and quality control.
Q11: How should optical connectors be maintained?
Connectors should be cleaned and inspected before connection, protected with dust caps when unused, and handled without touching the optical end face. Technicians should follow the cleaning and inspection procedures specified for the installed connector and fiber system.
Q12: How can buyers request product information?
Buyers can contact the manufacturer to discuss product configuration, technical requirements, customization, testing, order quantities, and delivery planning. Project information should be provided as early as possible so that the correct configuration can be confirmed.
15. Conclusion
The SMT-2209-24P-1U Sliding Type Rack Mount Fiber Optical Patch Panel Terminal Box is designed for organized, compact, and accessible fiber management. Its combination of 24-port capacity, 1U rack compatibility, and sliding access addresses several practical challenges found in modern communication cabinets.
The product can help separate permanent fiber cabling from equipment patching, improve technician access, support clearer labeling, reduce cabinet disorder, and make future network changes easier to control. Compared with a conventional fixed panel, its sliding structure provides a meaningful advantage in installation and maintenance convenience.
Product value is strengthened by the manufacturing capabilities behind it. Yuyao Simante Network Communication Equipment Co., Ltd. integrates design, development, technical support, production, assembly, testing, OEM, and ODM services. Its engineering personnel, injection molding resources, automatic installation equipment, regular production lines, customization lines, and international market experience provide a foundation for serving distributors, contractors, system integrators, and network operators.
For customers selecting a fiber patch panel, the final decision should consider the complete optical architecture rather than port count alone. Rack dimensions, connector format, fiber type, splice method, cable routing, labeling, environmental conditions, and maintenance procedures should all be reviewed. When properly selected and installed, the 1U sliding fiber terminal box can become a practical and dependable part of a structured cabling system.
References
1. Structured Cabling System Design Principles, industry training and installation guidance materials.
2. Optical Fiber Connector Inspection and Cleaning Practices, professional fiber installation procedures.
3. Telecommunications Rack and Cabinet Integration Guidelines, equipment-room planning references.
4. Passive Optical Network Infrastructure Management, fiber distribution and maintenance guidance.
5. Injection Molding Process Control for Communication Equipment Components, manufacturing quality references.
6. Network Cabling Documentation and Labeling Practices, structured cabling administration guidance.
7. Product information supplied for the SMT-2209-24P-1U Sliding Type Rack Mount Fiber Optical Patch Panel Terminal Box.
8. Corporate manufacturing and company information supplied for the optical fiber and structured cabling product portfolio.
