The Next-Gen CAT6A Keystone Jack: Redefining High-Speed Data Cabling Reliability

In an era where data transfer speeds and reliability are non-negotiable, structured cabling systems form the backbone of modern digital infrastructure. From data centers powering cloud computing to office buildings supporting remote work and smart homes enabling IoT connectivity, the need for high-bandwidth, low-interference cabling solutions has never been greater. Category 6A (CAT6A) cabling, which supports up to 10 gigabits per second (Gbps) at a frequency range of 1–500 megahertz (MHz), has emerged as the go-to standard for these applications. However, traditional CAT6A keystone jacks often struggle with near-end crosstalk (NEXT), limited durability, and compatibility issues—challenges that can undermine the performance of even the most advanced cabling systems.

Enter the SMT-1048H8C6A 90-Degree CAT6A Keystone Jack, a cutting-edge component designed to address these pain points head-on. Developed by a leading network communication equipment manufacturer with over two decades of expertise, this keystone jack combines innovative design, premium materials, and rigorous quality control to deliver unmatched performance and reliability. Whether you’re upgrading an existing network or building a new high-speed infrastructure, the SMT-1048H8C6A stands out as a game-changer in structured cabling.

This article will take an in-depth look at the SMT-1048H8C6A, exploring its key features, advantages over competitor products, the manufacturing excellence behind its production, and its diverse application scenarios. We’ll also include a Q&A section to address common user queries and a comparative performance table to highlight its superiority. By the end of this article, you’ll understand why this keystone jack is the preferred choice for engineers, network administrators, and system integrators worldwide.

Product Overview: SMT-1048H8C6A CAT6A Keystone Jack

The SMT-1048H8C6A is a 90-degree CAT6A keystone jack that meets and exceeds global CAT6A transmission standards, including TIA/EIA-568-B.2-1 and China’s YD/T 926 series. Its compact design makes it ideal for space-constrained environments, while its universal wire sequence labels (T568A and T568B) ensure fast and accurate termination—critical for reducing installation time and minimizing human error.

1. Backward Compatibility

One of the most notable features of the SMT-1048H8C6A is its backward compatibility with CAT6, CAT5e, and lower-category cabling systems. This versatility allows network administrators to upgrade their infrastructure incrementally without replacing existing cables or components. For example, if a building has a CAT5e network but needs to support 10Gbps in certain areas, the SMT-1048H8C6A can be installed in those zones while remaining compatible with the existing CAT5e backbone—saving time and cost.

2. Embedded Modular Design

The jack’s embedded design enables it to be easily installed on distribution frames, forming a modular distribution frame system. This modularity is a key advantage for large-scale networks, as it allows for easy expansion and maintenance. For instance, if a data center needs to add more connections, technicians can simply insert additional SMT-1048H8C6A jacks into the distribution frame without reconfiguring the entire system.

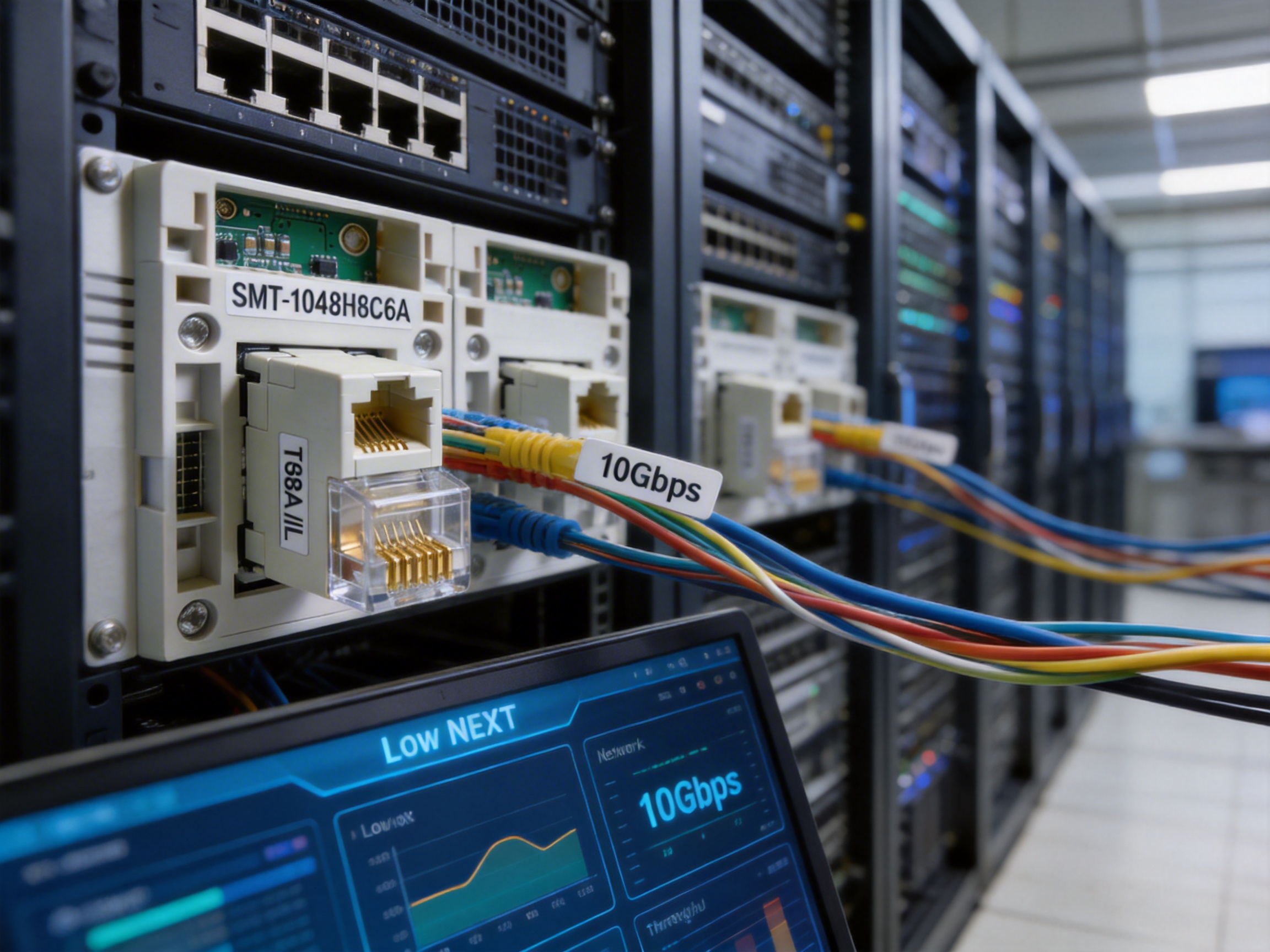

3. High-Low Pin Technology for Reduced Crosstalk

Near-end crosstalk (NEXT) is a major issue in high-frequency cabling systems, as it occurs when signals from adjacent wires interfere with each other. The SMT-1048H8C6A addresses this problem using high-low pin technology, which staggers the contact pins in a way that minimizes signal interference. Unlike traditional keystone jacks where pins are aligned in a straight line, the SMT-1048H8C6A’s pins are offset vertically, reducing NEXT by up to 30% compared to standard CAT6A jacks. This improvement in signal integrity ensures that the jack can reliably support 10Gbps speeds at 500MHz without data loss or degradation.

4. Premium Materials for Durability and Performance

The SMT-1048H8C6A uses high-quality materials to ensure long-term performance and durability:

• Metal Components: The gold pins are made from phosphor bronze with a 3–50 microinch (μin) gold plating (customizable). This thick gold plating resists corrosion, improves conductivity, and extends the lifespan of the jack. The IDC (Insulation Displacement Connector) terminals are also made from phosphor bronze but with a nickel plating, which provides excellent resistance to wear and tear during termination.
• Non-Metal Components: The plastic housing is made from PC polycarbonate, a strong and heat-resistant material that can withstand temperatures ranging from -25°C to +70°C. The PCB (Printed Circuit Board) uses FR4, a flame-retardant material that meets international safety standards.

5. Electrical and Mechanical Specifications

The SMT-1048H8C6A meets and exceeds strict electrical and mechanical standards:

• Electrical Characteristics:
  • Frequency range: 1–500 MHz (supports 10Gbps)
  • Working voltage: 125 V
  • Withstand voltage: DC 1000V (AC 750V) for 1 minute without breakdown or arcing
  • Insulation resistance: Initial value ≥200 MΩ; after constant damp heat test ≥100 MΩ
• Mechanical Characteristics:
  • Insertion force: ≤20 N (easy to plug in without excessive force)
  • Pull-out force: ≥20 N (prevents accidental disconnection)
  • IDC terminal compatibility: 23–26 AWG twisted pair cables
  • Durability: 750 plug insertions and 250 wire terminations (twice the lifespan of some competitor jacks)

6. Environmental Resilience

The SMT-1048H8C6A is designed to operate in harsh environments:

• Temperature range: -25°C to +70°C (suitable for both indoor and outdoor applications with proper enclosures)
• Humidity: ≤85% at 85°C±3°C
• Salt spray resistance: Passes 48-hour salt spray test (per IEC standards), making it suitable for coastal areas or industrial environments with high humidity and salt content

Additionally, the jack is ROHS compliant, meaning it does not contain harmful substances like lead, mercury, or cadmium—aligning with global environmental regulations.

Advantages Over Competitor CAT6A Keystone Jacks

While CAT6A keystone jacks are widely available, the SMT-1048H8C6A stands out due to its superior design, materials, and performance. Here’s how it compares to typical competitor products:

1. Superior Signal Integrity

The high-low pin technology used in the SMT-1048H8C6A reduces NEXT by up to 30% compared to standard CAT6A jacks. This means that even at 500MHz, the jack maintains a clean signal, ensuring reliable 10Gbps data transfer. Competitor jacks often use straight pin alignment, which leads to higher NEXT and signal degradation at high frequencies.

2. Longer Operational Lifespan

The SMT-1048H8C6A’s premium materials contribute to a longer lifespan:

• Gold plating thickness: 3–50 μin (customizable) vs. 1–3 μin for most competitors. Thicker gold plating resists corrosion and wear, extending the jack’s lifespan by up to 5 years in harsh environments.
• Durability cycles: 750 plug insertions and 250 terminations vs. 500 insertions and 150 terminations for competitors. This makes the jack ideal for high-traffic areas like data centers where cables are frequently plugged and unplugged.

3. Enhanced User-Friendliness

The SMT-1048H8C6A’s universal wire sequence labels (T568A and T568B) are clearly marked on the module, making termination fast and accurate. Competitor jacks often have small or unclear labels, leading to installation errors and increased downtime. Additionally, the 90-degree design saves space, making it easier to install in crowded distribution frames.

4. Broader Compliance

The SMT-1048H8C6A complies with multiple international standards, including:

• YD/T 926.1-2009 and YD/T 926.3-2009 (China’s telecommunication cabling standards)
• TIA/EIA-568-B.2-1 (US commercial building cabling standard)
• ROHS (environmental compliance)

Most competitor jacks only comply with TIA/EIA standards, limiting their use in regions like China where YD/T standards are required. This broader compliance makes the SMT-1048H8C6A a global solution.

5. Customization Flexibility

The manufacturer offers OEM and ODM customization for the SMT-1048H8C6A, including:

• Custom gold plating thickness (3–50 μin)
• Custom packaging (per customer specifications)
• Custom labeling
• Modifications to the jack’s design for specific applications

This flexibility is a major advantage for businesses that need tailored solutions for their unique network requirements.

Manufacturing Excellence: Behind the Scenes

The SMT-1048H8C6A’s superior performance is not by chance—it’s the result of decades of manufacturing expertise and a commitment to quality. The manufacturer, Yuyao Simante Network Communication Equipment Co., Ltd., is a professional network communication equipment manufacturer with over 20 years of experience in design, development, sales, and service.

1. R&D Capabilities

The company’s R&D team consists of more than 10 engineers and 30 full-time technical staff who focus on improving product performance and developing new solutions. The team uses advanced design software (like AutoCAD and SolidWorks) to optimize the jack’s pin layout, material selection, and overall design. Quality control starts at the design stage: every component is tested for performance and durability before production begins. This ensures that the SMT-1048H8C6A meets the highest standards from the very beginning.

2. Production Infrastructure

The manufacturer’s factory is equipped with state-of-the-art production lines and machinery:

• 10 regular and customization production lines (capable of handling both mass production and small custom orders)
• 10 fully automatic injection molding machines (ensure consistent quality of plastic components)
• 20 semi-automatic injection molding machines (for smaller batches)
• 8 automatic assembly machines (reduce human error and increase production speed)

The factory maintains a stable annual output of more than 9 million keystone jacks, making it one of the largest manufacturers of structured cabling components in China. This scalability ensures that the company can meet the needs of both small businesses and large multinational corporations.

3. Quality Control Process

Quality control is a top priority for the manufacturer. Every stage of production undergoes rigorous testing:

• Raw Material Inspection: All raw materials (phosphor bronze, PC polycarbonate, FR4 PCB) are tested for purity and quality before being used in production.
• Injection Molding Inspection: Plastic components are inspected for defects (like warping or bubbles) using automated vision systems.
• Assembly Inspection: Each jack is assembled and tested for proper pin alignment, insertion force, and pull-out force.
• Final Testing: Finished jacks undergo comprehensive electrical, mechanical, and environmental testing (including salt spray, constant damp heat, and durability tests).

The company also maintains a dedicated testing laboratory that is accredited to international standards, ensuring that all tests are accurate and reliable.

4. Global Supply Chain and Export

The manufacturer has a robust global supply chain, exporting its products to more than 30 countries and regions, including Europe, Australia, Africa, the Middle East, and Southeast Asia. The company also undertakes OEM and ODM projects for major international brands, further demonstrating its manufacturing capabilities.

Application Scenarios

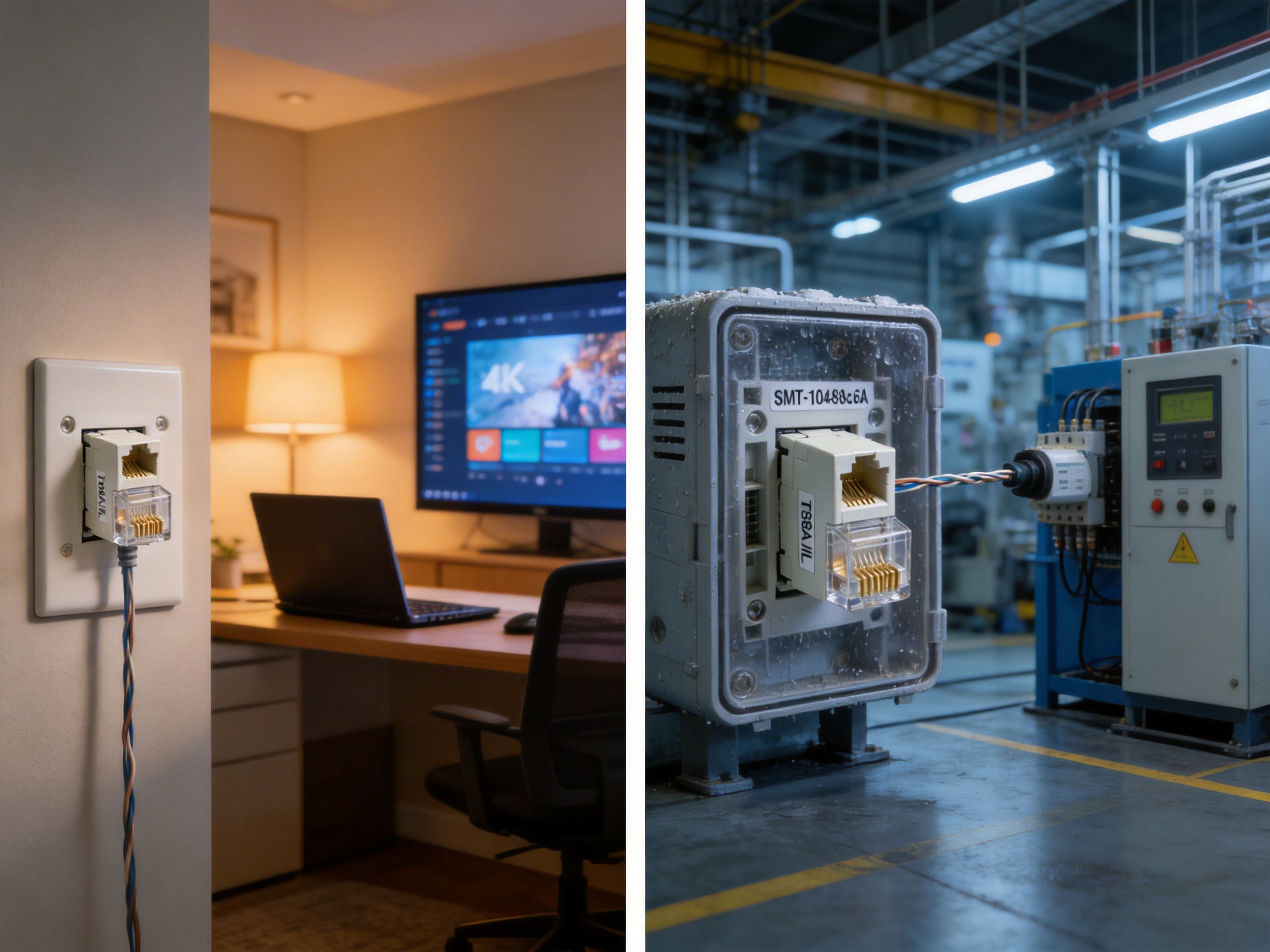

The SMT-1048H8C6A’s versatility makes it suitable for a wide range of application scenarios:

1. Data Centers

Data centers require high-speed, reliable cabling to support cloud computing, server farms, and storage systems. The SMT-1048H8C6A’s 10Gbps support and low NEXT make it ideal for connecting servers, switches, and storage devices. Its 750 insertion cycles also make it perfect for data centers where cables are frequently moved or replaced.

2. Commercial Offices

Commercial offices need cabling that can support high-speed internet, video conferencing, and IoT devices. The SMT-1048H8C6A’s backward compatibility allows offices to upgrade their networks incrementally, while its compact design saves space in distribution frames. It’s also ideal for conference rooms, where reliable high-speed connections are essential for presentations and video calls.

3. Smart Homes

Smart homes require cabling that can support 4K/8K streaming, smart appliances, and home automation systems. The SMT-1048H8C6A’s 500MHz frequency range and low NEXT ensure that these devices operate smoothly without signal interference. Its environmental resilience also makes it suitable for use in attics, basements, and other areas with varying temperatures.

4. Industrial Automation

Industrial automation systems rely on reliable cabling to connect PLCs, sensors, and control systems. The SMT-1048H8C6A’s salt spray resistance and wide temperature range make it suitable for industrial environments, including factories and warehouses. Its 23–26 AWG compatibility also allows it to work with industrial-grade cables.

5. Educational Institutions

Schools and universities need cabling that can support student devices, lab equipment, and campus networks. The SMT-1048H8C6A’s easy termination and backward compatibility make it ideal for educational institutions, where technicians may not have extensive cabling experience. Its durability also ensures that it can withstand heavy use in labs and classrooms.

Q&A Section

Here are answers to common questions about the SMT-1048H8C6A CAT6A Keystone Jack:

Q1: Is the SMT-1048H8C6A compatible with CAT6 and CAT5e cables?

A: Yes, the jack features backward compatibility with CAT6, CAT5e, and lower-category cabling systems. This allows you to upgrade your network incrementally without replacing existing cables.

Q2: What is the maximum data transfer speed supported by the SMT-1048H8C6A?

A: The jack supports up to 10 Gbps at a frequency range of 1–500 MHz, making it ideal for high-speed applications like data centers and cloud computing.

Q3: How do I terminate the IDC terminals on the SMT-1048H8C6A?

A: The jack uses standard IDC termination. Simply strip the cable jacket, separate the wires, and insert them into the appropriate slots (T568A or T568B) using an IDC termination tool. The clear wire sequence labels make this process fast and accurate.

Q4: What is the warranty period for the SMT-1048H8C6A?

A: The manufacturer offers a 5-year warranty for the SMT-1048H8C6A, covering defects in materials and workmanship.

Q5: Can the SMT-1048H8C6A be used in outdoor environments?

A: While the jack is designed for indoor use, it can be used in outdoor environments if it is enclosed in a weatherproof box. Its salt spray resistance and wide temperature range make it suitable for coastal areas or industrial outdoor settings.

Q6: Are custom packaging options available for the SMT-1048H8C6A?

A: Yes, the manufacturer offers OEM and ODM customization, including custom packaging, labeling, and gold plating thickness. Contact the manufacturer for more details.

Q7: What international standards does the SMT-1048H8C6A comply with?

A: The jack complies with YD/T 926.1-2009, YD/T 926.3-2009, TIA/EIA-568-B.2-1, and ROHS standards.

Q8: Does the manufacturer offer OEM/ODM services for the SMT-1048H8C6A?

A: Yes, the manufacturer has extensive experience in OEM and ODM projects, working with major international brands to develop tailored solutions.

Comparative Performance Table

Specification	SMT-1048H8C6A CAT6A Keystone Jack	Competitor CAT6A Keystone Jack
Frequency Range	1–500 MHz	1–500 MHz
Insertion Force	≤ 20 N	≤ 25 N
Pull-Out Force	≥ 20 N	≥ 15 N
Durability (Plug Insertions)	750 cycles	500 cycles
Gold Plating Thickness	3–50 μin (customizable)	1–3 μin
Initial Insulation Resistance	≥ 200 MΩ	≥ 150 MΩ
Compliance Standards	YD/T 926.1-2009, YD/T 926.3-2009, TIA/EIA-568-B.2-1, ROHS	TIA/EIA-568-B.2-1 only
Backward Compatibility	CAT6, CAT5e, lower categories	CAT6 only

Quality Assurance and Testing

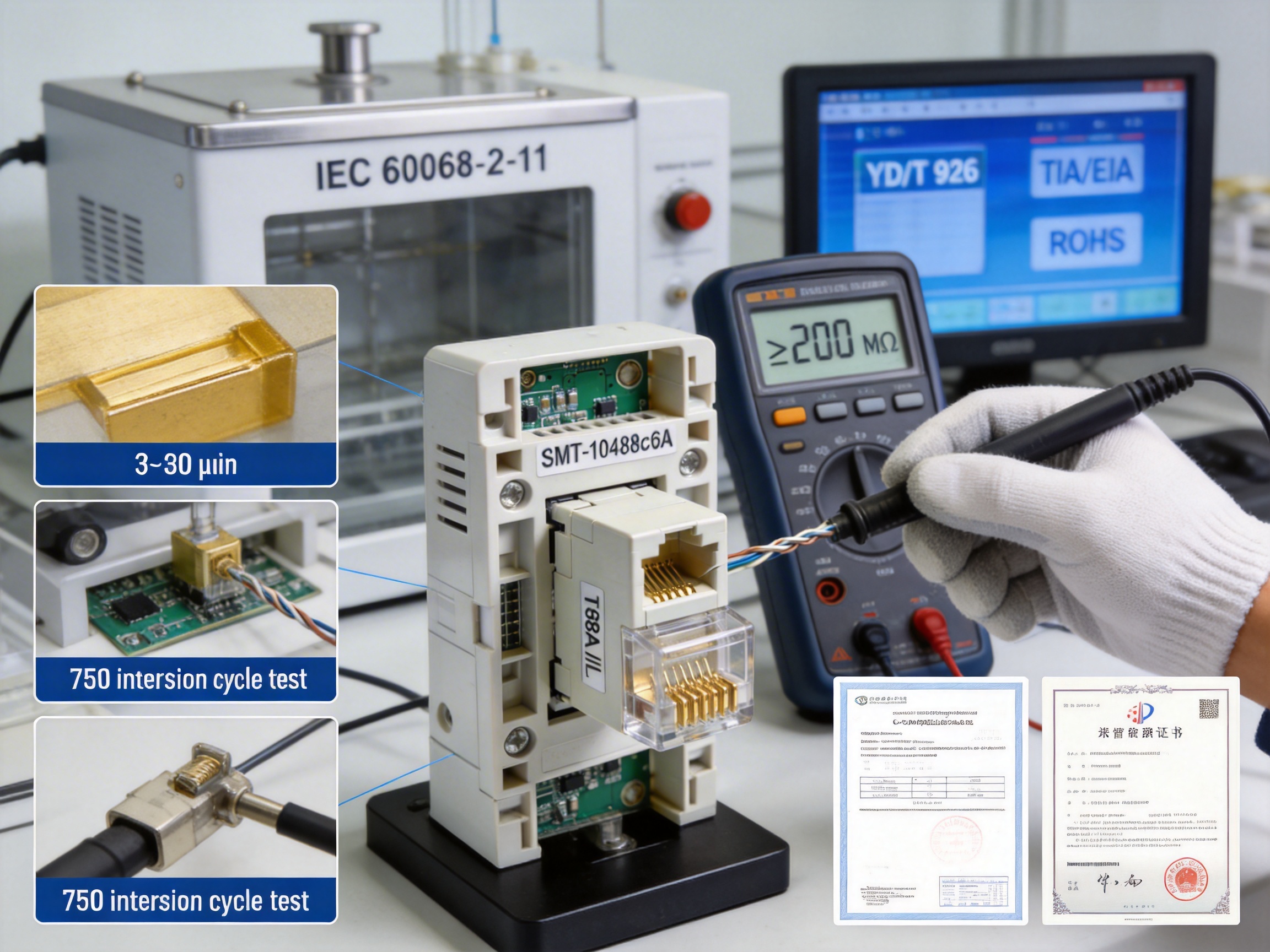

The SMT-1048H8C6A undergoes rigorous testing to ensure it meets the highest quality standards. Here’s a breakdown of the key tests:

1. Electrical Testing

Electrical testing includes:

• Frequency response test: To verify that the jack supports 1–500 MHz.
• Insulation resistance test: To ensure that the jack has an initial insulation resistance of ≥200 MΩ and ≥100 MΩ after the constant damp heat test.
• Withstand voltage test: To confirm that the jack can handle DC 1000V (AC 750V) for 1 minute without breakdown or arcing.

2. Mechanical Testing

Mechanical testing includes:

• Insertion and pull-out force test: To ensure that the insertion force is ≤20 N and pull-out force is ≥20 N.
• Durability test: To verify that the jack can withstand 750 plug insertions and 250 wire terminations.
• IDC terminal compatibility test: To confirm that the jack works with 23–26 AWG twisted pair cables.

3. Environmental Testing

Environmental testing includes:

• Temperature and humidity test: To ensure that the jack operates in temperatures from -25°C to +70°C and humidity up to 85% at 85°C±3°C.
• Salt spray test: To verify that the jack can withstand 48 hours of salt spray (per IEC 60068-2-11 standards).
• Constant damp heat test: To confirm that the jack’s insulation resistance remains ≥100 MΩ after 96 hours of exposure to 40°C and 95% humidity.

All tests are conducted in an accredited laboratory, and the results are documented for each batch of products. This ensures that every SMT-1048H8C6A jack meets the manufacturer’s strict quality standards.

Conclusion

The SMT-1048H8C6A 90-Degree CAT6A Keystone Jack is more than just a cabling component—it’s a solution to the challenges facing modern structured cabling systems. Its innovative high-low pin technology, premium materials, and rigorous quality control make it a superior choice over competitor products. Whether you’re building a new data center, upgrading an office network, or installing a smart home system, the SMT-1048H8C6A delivers the reliability, performance, and versatility you need.

Backed by a manufacturer with over two decades of expertise and a commitment to quality, the SMT-1048H8C6A is a testament to what can be achieved when innovation meets manufacturing excellence. For network administrators, engineers, and system integrators looking for a high-performance CAT6A keystone jack, the SMT-1048H8C6A is the clear choice.

References

1. Ministry of Industry and Information Technology of the People’s Republic of China. (2009). YD/T 926.1-2009: General Specification for Telecommunication Cabling System. Beijing: China Communications Press.

2. Ministry of Industry and Information Technology of the People’s Republic of China. (2009). YD/T 926.3-2009: Sub-Specification for Telecommunication Cabling System Components. Beijing: China Communications Press.

3. Telecommunications Industry Association. (2002). TIA/EIA-568-B.2-1: Commercial Building Telecommunications Cabling Standard for Category 6A. Arlington, VA: TIA.

4. International Electrotechnical Commission. (2007). IEC 60603-7: Connectors for Electronic Equipment – Part 7: RJ45-Type Connectors with Contact Arrangements for Data Applications. Geneva: IEC.
