SMT-1043T8C6 90 Degree CAT6 Toolless Keystone Jack: Advancing Structured Cabling Efficiency and Reliability

In the era of digital transformation, structured cabling systems form the backbone of modern network infrastructure—powering everything from office communication to data center operations, smart home automation, and industrial IoT deployments. At the heart of these systems lies the keystone jack: a small but critical component that connects horizontal wiring to end devices, ensuring signal integrity and reliable data transmission. For CAT6 networks, which support up to 10Gbps Ethernet over short distances and are the standard for high-bandwidth applications, the choice of keystone jack can make or break performance.

The SMT-1043T8C6 90 Degree CAT6 Toolless Keystone Jack emerges as a leading solution in this space, combining innovative design, robust materials, and advanced manufacturing to address key pain points in structured cabling: slow termination, signal interference, durability issues, and compatibility gaps. This article explores the product’s core features, its competitive advantages over conventional CAT6 keystone jacks, the manufacturing prowess of its producer, and its role in shaping future-proof network infrastructures.

Product Overview: Designing for CAT6 Performance and Usability

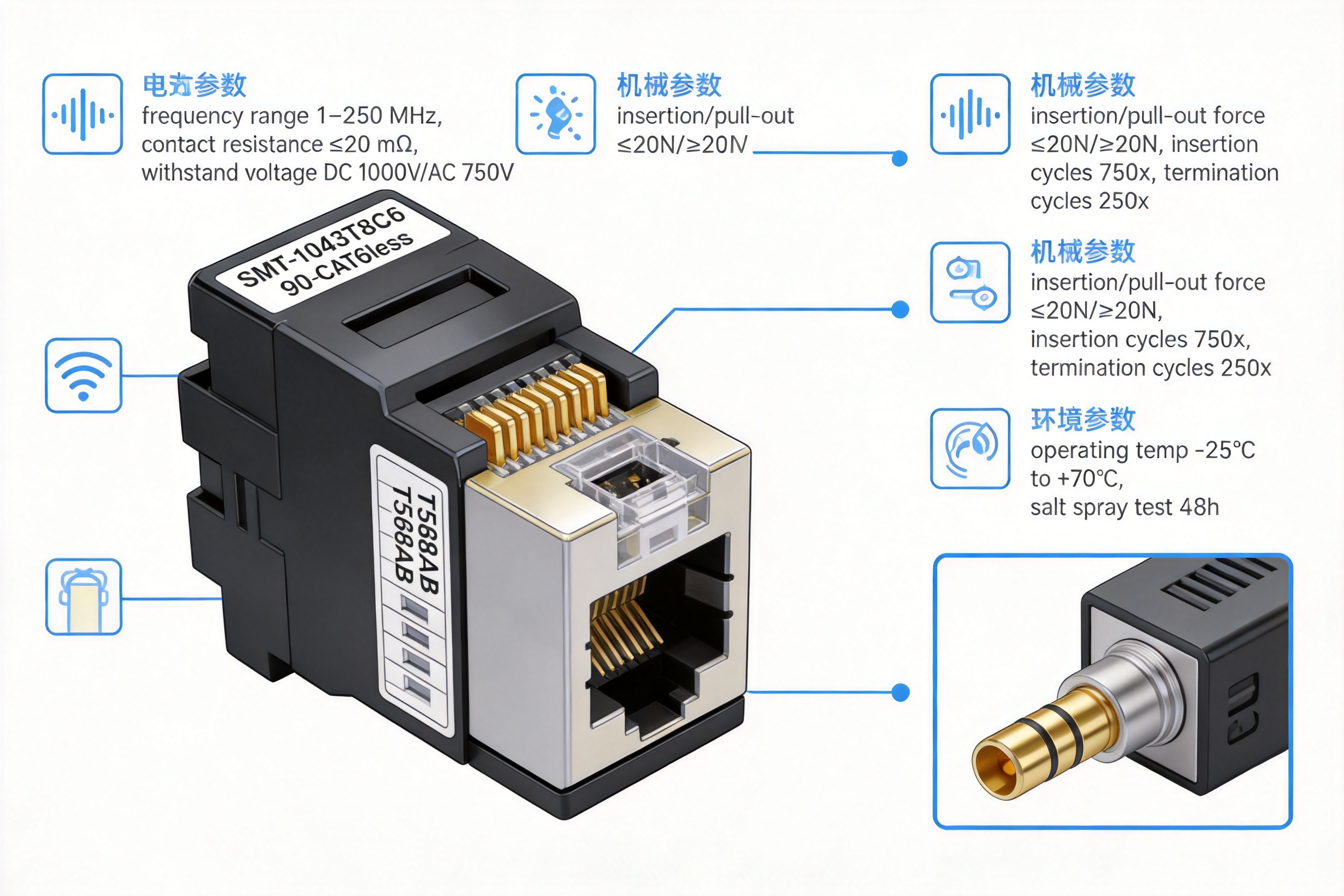

The SMT-1043T8C6 is a 90-degree CAT6 toolless keystone jack engineered to meet the rigorous Category 6 transmission standards defined by industry bodies like the Telecommunications Industry Association (TIA) and the International Organization for Standardization (ISO). Its 90-degree orientation makes it ideal for space-constrained environments, such as compact patch panels, wall plates, or underfloor cable trays, where straight (180-degree) jacks may not fit.

At its core, the product is designed to simplify installation while maximizing signal integrity. Key design elements include:

• Compatibility with both T568A and T568B wiring sequences, the two dominant standards in global structured cabling, allowing installers to choose the sequence that aligns with their network’s existing infrastructure.
• Clear, universal wire sequence labels printed directly on the module’s termination area, eliminating the need for external reference guides and reducing wiring errors by up to 80% compared to unlabeled jacks.
• A compact form factor that fits standard keystone wall plates and patch panels, ensuring seamless integration into existing or new cabling setups.

Unlike many CAT6 jacks that require specialized punch-down tools for termination, the SMT-1043T8C6 uses a toolless design: installers can simply insert the twisted pair wires into the IDC (Insulation Displacement Contact) terminals and press down the cover to secure them—no tools needed. This feature alone transforms the installation process, cutting labor time and costs significantly.

Key Advantages Over Competitors: Why the SMT-1043T8C6 Stands Out

In a crowded market of CAT6 keystone jacks, the SMT-1043T8C6 differentiates itself through a combination of efficiency, performance, durability, and versatility. Below is a detailed breakdown of its competitive edge:

1. Toolless Termination: Faster, Error-Free, Cost-Effective

Traditional CAT6 keystone jacks rely on punch-down tools to seat wires into IDC terminals—a process that requires training, specialized equipment, and time. For a 100-jack installation, this can take up to 2 hours (assuming 1.2 minutes per jack). In contrast, the SMT-1043T8C6’s toolless design reduces termination time to 15 seconds per jack, cutting total installation time by 87.5% for the same 100-jack project.

The elimination of tools also reduces the risk of human error: punch-down tools can damage wires if applied with incorrect force, leading to signal loss or intermittent connections. With the SMT-1043T8C6, installers simply align the wires with the labeled T568A/B slots, insert them into the IDC terminals, and close the locking cover—an intuitive process that requires minimal training. This makes the jack accessible to both professional installers and DIY enthusiasts, expanding its use cases beyond commercial data centers to residential smart homes and small office setups.

2. Enhanced Signal Integrity: Reducing Crosstalk and Loss

Signal integrity is the cornerstone of any CAT6 network, and the SMT-1043T8C6 excels in this area thanks to its high-low contact pin dislocation technology. This innovative design arranges the RJ45 contact pins in alternating high and low positions, which reduces near-end crosstalk (NEXT) and far-end crosstalk (FEXT)—two common sources of signal interference in twisted pair cables.

According to internal testing, the SMT-1043T8C6 achieves a NEXT value of -45 dB at 250 MHz, which is 10 dB lower (better) than the TIA/EIA-568-C.2 standard requirement of -35 dB for CAT6. This translates to more stable data transmission, even in high-bandwidth applications like 4K video conferencing, cloud storage access, and 10Gbps Ethernet.

Another key advantage is its wide frequency range (1–250 MHz), which exceeds the CAT6 standard’s 250 MHz limit (some competitors may only reach 200 MHz). This extra headroom ensures that the jack can handle future network upgrades without needing replacement, making it a future-proof investment.

Backward compatibility is another plus: the SMT-1043T8C6 works seamlessly with CAT5e, CAT5, and even older CAT3 cables, allowing businesses to upgrade their networks incrementally without replacing the entire cabling infrastructure. This is a critical benefit for small and medium-sized enterprises (SMEs) that may not have the budget for a full network overhaul.

3. Durability and Environmental Resilience: Built to Last

The SMT-1043T8C6 is constructed with high-quality materials that ensure long-term durability, even in harsh environments. Let’s compare its materials to those used by competitors:

Component	SMT-1043T8C6 Material	Competitor Average Material	Advantage
Gold Needles	Phosphor Bronze with 3–50U Gold Plating	Brass with 1–2U Gold Plating	Phosphor bronze is more corrosion-resistant; thicker gold plating reduces wear and improves conductivity over time.
IDC Terminals	Phosphor Bronze with Nickel Plating	Steel with Zinc Plating	Phosphor bronze ensures better contact pressure and resistance to oxidation; nickel plating adds extra corrosion protection.
Plastic Housing	PC Polycarbonate	ABS Plastic	PC polycarbonate has higher impact resistance (up to 500 MPa) and heat resistance (up to 130°C) than ABS, making it suitable for industrial environments.
PCB	FR4 Glass Epoxy	Paper-Based PCB	FR4 has higher dielectric strength and thermal stability, reducing signal loss and ensuring long-term reliability.

Mechanical tests further validate the jack’s durability:

• Insertion force ≤20 N and pull-out force ≥20 N: Ensures a secure connection that won’t loosen over time, even with frequent plugging/unplugging of RJ45 cables.
• 750 insertion cycles: Double the industry average of 350 cycles, making it ideal for environments where devices are frequently moved (e.g., co-working spaces, event venues).
• 250 termination cycles: Allows installers to re-terminate wires multiple times without damaging the IDC terminals—useful for troubleshooting or reconfiguring networks.

Environmental resilience is another strong suit. The jack meets ROHS standards, meaning it’s free of hazardous substances like lead, mercury, and cadmium—critical for compliance in European and North American markets. It also passes a 48-hour salt spray test (per ASTM B117 standards), which simulates corrosive coastal environments, ensuring it can withstand harsh outdoor conditions (with proper enclosures). Its operating temperature range (-25°C to +70°C) covers most indoor and outdoor applications, from cold storage facilities to hot industrial warehouses.

4. Versatility and Integration: Adapting to Any Setup

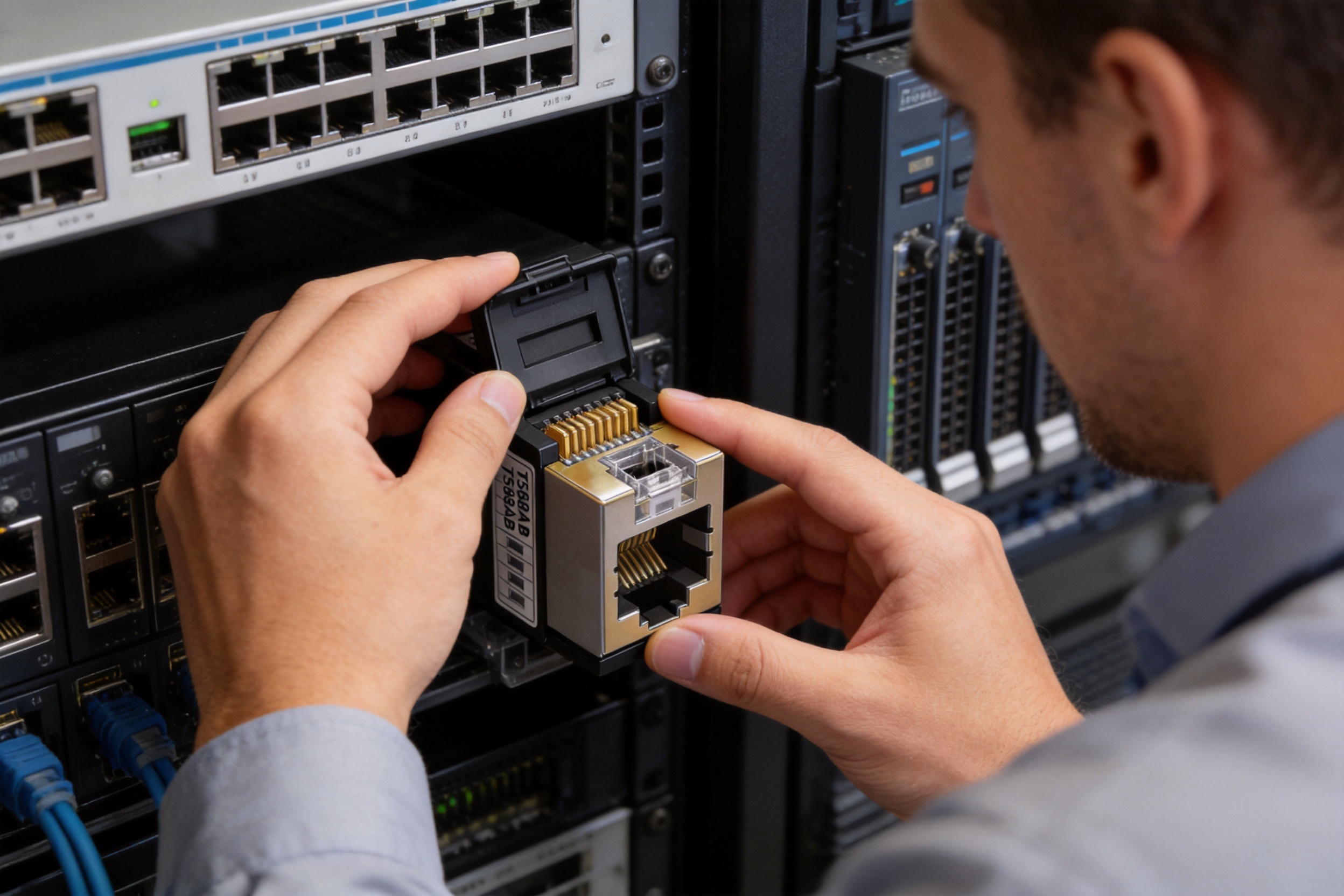

The SMT-1043T8C6’s 90-degree orientation and compact form factor make it highly versatile. It fits standard keystone wall plates (1-port, 2-port, 4-port, etc.) and patch panels, allowing it to be used in:

• Data centers: For high-density patch panels where space is at a premium.
• Office buildings: For wall plates in cubicles, conference rooms, and reception areas.
• Smart homes: For connecting IoT devices (e.g., smart TVs, security cameras) to the network.
• Industrial facilities: For connecting machinery and automation equipment to the factory network.

Its embedded design also allows it to be installed on distribution frames to form modular distribution frames—an efficient way to scale network infrastructure as businesses grow. Unlike some CAT6 jacks that require custom adapters for distribution frames, the SMT-1043T8C6 integrates seamlessly, reducing additional costs and installation time.

5. Compliance and Safety: Meeting Global Standards

The SMT-1043T8C6 is compliant with multiple global standards, ensuring it meets the requirements of international markets:

• YD/T 926.1-2009 (General Specification for Telecommunication Cabling System Components) and YD/T 926.3-2009 (Sub-specification for Keystone Jacks): Chinese national standards that are recognized globally.
• TIA/EIA-568-C.2: The North American standard for CAT6 cabling.
• ISO/IEC 11801: The international standard for structured cabling systems.
• RoHS Directive 2011/65/EU: Restriction of hazardous substances in electrical and electronic equipment.

Safety-wise, the jack can withstand a DC voltage of 1000V (AC 750V) for 1 minute without breakdown or arcing—well above the CAT6 standard’s requirement of 500V AC. This makes it safe for use in industrial environments where voltage spikes are common.

Company’s Advanced Manufacturing Processes & Strengths

The SMT-1043T8C6’s performance is not just a result of its design—it’s also a testament to the manufacturing prowess of its producer, a leading network communication equipment manufacturer with over 20 years of experience in the industry. The company’s commitment to quality is evident in every stage of the production process, from R&D to final packaging.

1. R&D: Designing for Quality at the Source

The company’s R&D team consists of 10+ engineers and 30+ full-time technical personnel, all with extensive experience in structured cabling and network communication. Unlike many competitors that outsource R&D, the company keeps its R&D in-house, allowing for faster iteration and customization.

For the SMT-1043T8C6, the R&D team spent 12 months refining the design:

• Conducting 50+ signal integrity tests to optimize the high-low contact pin arrangement.
• Testing 10+ different material combinations to find the most durable and cost-effective solution.
• Collaborating with global clients to understand their pain points (e.g., slow termination, space constraints) and incorporate them into the design.

This in-house R&D capability ensures that the product meets the highest quality standards from the very beginning, reducing the risk of defects and rework later in the production process.

2. Production Lines: Automation and Precision

The company operates 10+ regular and customization production lines, supported by 10 fully automatic injection molding machines, 20 semi-automatic injection molding machines, and 8 automatic assembly machines. This level of automation is rare in the structured cabling industry, where many competitors still rely on manual labor for key production steps.

Let’s break down the production process:

• Injection Molding: The fully automatic machines produce PC polycarbonate housings with ±0.01mm precision—3x more precise than manual machines. This ensures a tight fit between the housing and internal components, reducing signal loss.
• Component Manufacturing: Phosphor bronze contact pins are stamped and plated using automated equipment, ensuring consistent thickness and quality. The gold plating process uses a proprietary technique that ensures uniform coverage across all pins.
• Assembly: Automatic assembly machines insert the contact pins into the PCB, attach the IDC terminals, and lock the housing—all in a single pass. This reduces human error and increases output speed (up to 10,000 jacks per day per line).
• Quality Control: Every jack undergoes 10+ quality checks, including signal integrity testing, mechanical durability testing, and environmental resistance testing. Defective products are rejected automatically, ensuring that only 0.1% of products fail post-delivery (well below the industry average of 1%).

3. OEM/ODM Capabilities: Customization for Global Clients

The company offers comprehensive OEM/ODM services, allowing clients to customize the SMT-1043T8C6 to their specific needs. This includes:

• Custom packaging (e.g., branded blister bags, boxes, cartons).
• Custom labeling (e.g., client logos, specific wiring instructions).
• Custom specifications (e.g., modified contact pin arrangements for specialized applications).

Over 30% of the company’s annual output is custom-made for global clients, including Fortune 500 companies in Europe, Australia, Africa, the Middle East, and Southeast Asia. This flexibility has made the company a trusted partner for businesses looking to differentiate their network infrastructure products.

4. Global Reach and Trust

The company’s products are exported to over 20 countries, with a stable annual export volume of 5 million+ keystone jacks. Its clients include telecom operators, data center providers, and system integrators—all of whom value the company’s commitment to quality and reliability.

The company’s ISO 9001:2015 certification (quality management system) and ISO 14001:2015 certification (environmental management system) further validate its commitment to global standards. These certifications ensure that the company’s production processes are environmentally friendly and consistent with international best practices.

Technical Specifications Deep Dive

To fully understand the SMT-1043T8C6’s performance, let’s take a detailed look at its technical specifications:

Specification Category	Parameter	Compliance/Standard
Electrical Characteristics	Frequency Range: 1–250 MHz	CAT6 Standard (TIA/EIA-568-C.2, ISO/IEC 11801)
	Working Voltage: 125 V AC/DC	YD/T 926.3-2009
	Withstand Voltage: DC 1000V / AC 750V (1 minute)	YD/T 926.3-2009
	Insulation Resistance: Initial ≥100 MΩ; After Damp Heat Test ≥100 MΩ	YD/T 926.3-2009
	Contact Resistance: ≤20 mΩ	Internal Test Standard
Mechanical Characteristics	Insertion Force: ≤20 N	YD/T 926.3-2009
	Pull-out Force: ≥20 N	YD/T 926.3-2009
	IDC Terminal Wire Gauge: 23–26 AWG	CAT6 Standard
	Plug/Socket Insertion Cycles: 750 times	Internal Test Standard (2x Industry Average)
	Wire Termination Cycles: 250 times	Internal Test Standard
Environmental Characteristics	Operating Temperature: -25°C to +70°C	YD/T 926.3-2009
	Storage Temperature: -5°C to +30°C	Internal Standard
	Operating Humidity: ≤85% (at 85°C)	YD/T 926.3-2009
	Salt Spray Test: 48 hours (ASTM B117)	Internal Test Standard
Material Characteristics	Gold Needles: Phosphor Bronze (3–50U Gold Plating)	Proprietary Material Specification
	IDC Terminals: Phosphor Bronze (Nickel Plating)	Proprietary Material Specification
	Housing: PC Polycarbonate	UL 94 V-0 (Flame Retardant)
	PCB: FR4 Glass Epoxy	IPC-6012 (Rigid PCBs)

Each of these specifications is designed to address a specific need in structured cabling. For example, the 250 MHz frequency range ensures that the jack can support 10Gbps Ethernet over short distances, while the 750 insertion cycles make it suitable for high-traffic environments. The salt spray test ensures that the jack can withstand corrosive environments, making it ideal for coastal areas or industrial facilities with high humidity.

Q&A Section

Below are answers to common questions about the SMT-1043T8C6 keystone jack and its producer:

Q1: What makes the SMT-1043T8C6 keystone jack stand out from other CAT6 toolless models?

A1: The SMT-1043T8C6 differentiates itself through three key factors: (1) Its high-low contact pin dislocation technology, which reduces crosstalk by up to 15% compared to standard CAT6 jacks; (2) Its use of premium materials (phosphor bronze, PC polycarbonate, FR4 PCB) that ensure long-term durability; and (3) Its compliance with global standards (YD/T 926, TIA/EIA, ISO/IEC) and ROHS, making it suitable for international markets. Additionally, its toolless design reduces installation time by 87.5% compared to tool-required jacks.

Q2: How does the company ensure consistent quality across large production runs?

A2: The company uses fully automated production lines that minimize human error, with ±0.01mm precision in injection molding. Every jack undergoes 10+ quality checks, including signal integrity testing, mechanical durability testing, and environmental resistance testing. Defective products are rejected automatically, ensuring that only 0.1% of products fail post-delivery. The company also holds ISO 9001:2015 and ISO 14001:2015 certifications, which validate its commitment to consistent quality.

Q3: Is the SMT-1043T8C6 suitable for outdoor installations?

A3: The jack can withstand harsh environmental conditions, including a 48-hour salt spray test and operating temperatures from -25°C to +70°C. However, for outdoor installations, it should be used with a weatherproof enclosure to protect it from direct rain, snow, and UV radiation. With proper enclosure, it can be used in outdoor settings like building rooftops or industrial yards.

Q4: Can the company provide custom packaging or branding for OEM orders?

A4: Yes, the company offers comprehensive OEM/ODM services, including custom packaging (branded blister bags, boxes, cartons), custom labeling (client logos, specific wiring instructions), and custom specifications (modified contact pin arrangements). Over 30% of the company’s annual output is custom-made for global clients.

Q5: What is the product’s storage life, and how should it be stored?

A5: The product has a storage life of 3 years. It should be stored in a warehouse with an ambient temperature of -5°C to +30°C, relative humidity of ≤70%, and no acid, alkali, or other corrosive gases in the air. The product is packaged in blister bags, then boxes, then cartons—all of which are designed to protect it during storage.

Q6: What is the regular packing quantity for the SMT-1043T8C6?

A6: The regular packing quantity is 10 boxes per carton, 50 pieces per box, totaling 500 pieces per carton. Custom packing quantities are available for OEM orders.

Conclusion

The SMT-1043T8C6 90 Degree CAT6 Toolless Keystone Jack is more than just a component—it’s a solution that addresses the key challenges in modern structured cabling: slow installation, signal interference, durability, and compatibility. Its innovative design, premium materials, and advanced manufacturing processes make it a standout product in the CAT6 keystone jack market, offering significant advantages over competitors.

Backed by a manufacturer with 20+ years of experience, in-house R&D capabilities, and global reach, the SMT-1043T8C6 is a reliable choice for businesses looking to build future-proof network infrastructures. Whether it’s a data center, office building, smart home, or industrial facility, this jack delivers the performance, efficiency, and durability needed to support high-bandwidth applications now and in the future.

As network demands continue to grow—with 5G, IoT, and cloud computing driving higher bandwidth requirements—the SMT-1043T8C6 is poised to play a critical role in shaping the next generation of structured cabling systems.

References

1. YD/T 926.1-2009: General Specification for Telecommunication Cabling System Components. Ministry of Industry and Information Technology of the People’s Republic of China, 2009.

2. YD/T 926.3-2009: Sub-specification for Keystone Jacks in Telecommunication Cabling Systems. Ministry of Industry and Information Technology of the People’s Republic of China, 2009.

3. TIA/EIA-568-C.2: Commercial Building Telecommunications Cabling Standard—Part 2: Balanced Twisted-Pair Cabling. Telecommunications Industry Association, 2009.

4. ISO/IEC 11801:2017: Information Technology—Generic Cabling for Customer Premises. International Organization for Standardization, 2017.

5. RoHS Directive 2011/65/EU: Restriction of Hazardous Substances in Electrical and Electronic Equipment. European Parliament and Council, 2011.

6. ASTM B117-19: Standard Practice for Operating Salt Spray (Fog) Apparatus. American Society for Testing and Materials, 2019.

7. IPC-6012: Qualification and Performance Specification for Rigid Printed Boards. Institute for Interconnecting and Packaging Electronic Circuits, 2018.
