90 Degree Shielded CAT6A Toolless Keystone Jack for High-Performance Structured Cabling

In modern structured cabling, the quality of a single connection point can influence the stability, speed, and long-term reliability of an entire network. The SMT-1043T8C6A-FTP 90 Degree Shielded CAT6A Toolless Keystone Jack is designed for high-performance copper cabling systems that require Category 6A transmission capability, compact installation, reliable shielding, and efficient field termination. Built for communication socket connections between equipment and work areas, this keystone jack supports the practical demands of commercial buildings, data rooms, smart homes, automation systems, and high-density cabling environments.

This product belongs to the CAT6A keystone jack category and is engineered to meet Category 6A transmission standards. It supports both T568A and T568B wiring sequences, allowing installers to match different project specifications without changing the product platform. Its compact form, clearly marked universal wiring label, and toolless termination structure help technicians complete installation with improved accuracy and speed. For cabling projects where performance, repeatability, and installation efficiency matter, this 90 degree shielded CAT6A keystone jack offers a dependable solution.

Yuyao Simante Network Communication Equipment Co., Ltd. manufactures this product as part of its copper and fiber structured cabling system component portfolio. With nearly 20 years of experience in network cabling solutions and optical fiber products, the company integrates product design, development, manufacturing, sales, and service. Its production capabilities, engineering team, automatic and semi-automatic equipment, and OEM/ODM experience contribute to a stable supply of high-quality cabling components for global customers.

Product Overview

The SMT-1043T8C6A-FTP 90 Degree Shielded CAT6A Toolless Keystone Jack is a modular RJ45 connection component used to connect horizontal cabling with work-area wiring on the same floor of a building. It is suitable for network outlets, patch panel installations, modular distribution frames, data sockets, and adapter conversion connections. Its mating cables include copper twisted-pair cables and copper jumpers that match the required performance category.

As a CAT6A product, it is designed for frequency performance up to 500 MHz. This makes it suitable for high-speed data transmission applications where enhanced bandwidth and reduced crosstalk are required. Compared with lower-category modules, a CAT6A keystone jack is better positioned for modern network requirements, including high-speed Ethernet, dense office cabling, IP-based security systems, wireless access point infrastructure, and intelligent building control systems.

The product uses an RJ45 jack for the jumper side and IDC termination for the horizontal wiring side. This structure is widely accepted in structured cabling because it provides a clear separation between field cable termination and patching interface. The IDC termination supports 23 to 26 AWG twisted-pair conductors, giving the product practical compatibility with common network cables used in building cabling projects.

One of the key features of this model is its 90 degree design. In many installation spaces, cable routing is limited by wall boxes, floor boxes, patch panel depth, or cabinet layout. A 90 degree outlet orientation can help reduce cable bending stress, improve routing neatness, and support more controlled cable management. This is especially important for CAT6A systems, because high-performance twisted-pair cabling should avoid excessive deformation and sharp bending that may affect transmission characteristics.

The shielded FTP design also provides an important advantage in environments with electromagnetic interference. In commercial buildings, network cabling may be installed near power cables, lighting systems, motors, elevators, HVAC equipment, or industrial control devices. Shielding helps protect signal integrity and supports stable network operation in these conditions. For installers and project owners, a shielded CAT6A toolless keystone jack provides both performance headroom and environmental resilience.

Key Technical Specifications

Item	Specification	Practical Value
Product Type	90 Degree Shielded CAT6A Toolless Keystone Jack	Supports high-performance modular network connection
Transmission Category	Category 6A	Suitable for enhanced bandwidth structured cabling
Frequency Range	1 to 500 MHz	Supports CAT6A-level transmission applications
Wiring Sequence	T568A and T568B	Compatible with common project wiring standards
Connection Method	RJ45 jack with jumper, IDC with horizontal cable	Enables standard patching and stable cable termination
IDC Cable Range	23 to 26 AWG twisted pair	Works with common structured cabling conductors
Working Voltage	125 V	Meets practical low-voltage network component requirements
Withstand Voltage	DC 1000 V or AC 750 V for 1 minute without breakdown or arcing	Provides electrical safety margin
Insulation Resistance	Initial value at least 200 MΩ; after damp heat test at least 100 MΩ	Helps maintain safe and reliable electrical isolation
Plug Insertion Durability	750 mating cycles	Supports repeated patch cord connection and maintenance
Wire Termination Durability	250 termination cycles	Supports robust IDC structure during installation and service
Plastic Material	PC polycarbonate	Provides mechanical strength and dimensional stability
PCB Material	FR4	Offers stable electrical and mechanical performance
Contact Material	Phosphor bronze with gold plating	Improves conductivity and corrosion resistance
Environmental Requirement	ROHS compliant	Supports responsible material control
Operating Temperature	-25°C to +70°C	Suitable for a wide range of indoor network environments

Why CAT6A Matters in Current Cabling Projects

Network infrastructure is expected to remain useful for many years after installation. A cabling system installed today may need to support higher bandwidth applications tomorrow. This is one reason CAT6A components are widely chosen for new structured cabling projects. Compared with CAT5e or CAT6 solutions, CAT6A provides a higher transmission frequency range and greater performance headroom, especially in applications requiring stable high-speed data transmission.

The SMT-1043T8C6A-FTP supports Category 6A transmission standards and is backward compatible with CAT6, CAT5e, and lower-category systems. This backward compatibility is valuable because building networks often contain mixed generations of equipment. A CAT6A keystone jack can be used with existing lower-category devices while keeping the infrastructure prepared for future upgrades. This reduces the need for repeated replacement and helps project owners protect long-term investment.

In office networks, the number of connected devices continues to grow. Computers, printers, IP phones, access control devices, security cameras, conference systems, wireless access points, and building automation terminals all rely on dependable physical network links. When these devices operate simultaneously, the cabling layer must deliver stable performance. A high-quality CAT6A shielded keystone jack helps reduce the possibility of bottlenecks created by low-grade connection points.

In industrial and automation settings, stability is just as important as bandwidth. Network interruptions can cause data loss, machine downtime, or delayed control response. A shielded keystone jack with reliable mechanical retention, stable electrical characteristics, and robust IDC termination can contribute to a more dependable communications infrastructure. While the keystone jack is a small component, its performance directly affects the quality of the channel.

Advantages Over Ordinary Keystone Jacks

Higher Transmission Capability

Ordinary lower-category jacks may be sufficient for basic networks, but they do not provide the same performance margin as CAT6A. This product is designed for a 1 to 500 MHz frequency range, aligning it with CAT6A structured cabling requirements. For customers building high-speed networks, this frequency range is a major advantage because it helps support higher data rates and stronger resistance to performance degradation.

Shielded Design for Better Signal Integrity

Unshielded jacks are widely used in simple environments, but they may not be ideal where electromagnetic interference is present. The shielded structure of this CAT6A keystone jack supports more stable signal transmission in complex electrical environments. In office buildings with dense cable trays, communication rooms with many active devices, or facilities with electrical equipment nearby, shielding can help maintain consistent link quality.

90 Degree Structure for Practical Cable Routing

Some keystone jacks require cable entry from a straight rear direction. This can create problems in shallow wall boxes or compact panels. The 90 degree design of this product allows more flexible cable routing and may reduce cable stress after installation. This helps preserve pair geometry and supports cleaner cabling layouts. Better physical routing also improves future maintenance because technicians can identify and manage cables more easily.

Toolless Termination for Faster Installation

Traditional IDC termination may require punch-down tools and more installation steps. A toolless keystone jack is designed to simplify field work. It helps reduce dependence on additional tools, improves installation speed, and lowers the risk of inconsistent termination caused by improper tool operation. For large projects involving hundreds or thousands of ports, small time savings per jack can become a major labor advantage.

Clear Wiring Labels for Accuracy

The universal wiring sequence label is clearly marked on the module card wire, supporting both T568A and T568B termination. This reduces installation confusion and helps technicians complete accurate wiring in less time. Miswiring is a common cause of network testing failure, rework, and project delay. Clear labeling improves first-pass success and supports consistent results across installation teams.

Backward Compatibility

This keystone jack can be backward compatible with CAT6, CAT5e, and lower-category systems. This is particularly useful for retrofit projects where existing network equipment may not yet require CAT6A performance. Customers can install CAT6A infrastructure now while continuing to use existing equipment, then upgrade active devices later without replacing the passive cabling components.

Durable Contact and Terminal Materials

The product uses phosphor bronze gold-plated contacts and phosphor bronze nickel-plated IDC terminals. These materials are selected for conductivity, resilience, and corrosion resistance. Gold plating on the contact surface improves electrical connection reliability during repeated plug insertion and withdrawal. The specified gold-plated layer thickness range of 3 to 50 microinches gives customers options suitable for different performance and cost requirements.

Stable Mechanical Performance

The insertion force is not more than 20 N, and the pull-out force is not less than 20 N. This balance provides user-friendly plug insertion while maintaining reliable retention after connection. The plug and socket insertion durability reaches 750 cycles, and wire termination durability reaches 250 cycles. These figures are important for environments where patching, maintenance, testing, or relocation may occur during the product life cycle.

Electrical Performance and Reliability

Electrical performance is central to the value of any keystone jack. A poor connector can introduce crosstalk, return loss, insertion loss, or contact instability, reducing the performance of the entire channel. The SMT-1043T8C6A-FTP is designed with a contact pin arrangement using high and low dislocation technology. This design approach helps reduce near-end crosstalk, which is a critical parameter in high-frequency twisted-pair transmission.

Near-end crosstalk occurs when signal energy from one pair interferes with another pair near the transmitting end of the cable. As frequency increases, controlling crosstalk becomes more difficult. CAT6A cabling components must therefore be carefully designed to manage electromagnetic interaction between pairs. The internal layout of the jack, the contact geometry, the printed circuit board, and the IDC termination all affect the final transmission quality.

The product supports a working voltage of 125 V and withstands DC 1000 V or AC 750 V for one minute without breakdown or arcing. This withstand voltage requirement demonstrates the electrical safety margin of the insulation system. The initial insulation resistance is at least 200 MΩ, and after constant damp heat testing it remains at least 100 MΩ. These parameters support stable performance even when the product is exposed to challenging humidity conditions.

The use of FR4 PCB material contributes to electrical and structural stability. FR4 is widely used in network connectivity products because it offers reliable insulation properties, mechanical strength, and dimensional consistency. Combined with precision contact design and quality material control, it helps the keystone jack maintain performance during operation.

The product also meets ROHS environmental requirements, which means material selection is controlled according to restrictions on certain hazardous substances. For customers exporting products or integrating components into international projects, ROHS compliance is an important consideration. It supports responsible procurement and helps meet the expectations of global markets.

Mechanical Design and Installation Efficiency

Mechanical design affects not only product durability but also installation experience. The compact shape of this CAT6A keystone jack makes it suitable for modular patch panels, wall face plates, communication sockets, and data outlets. Its embedded design allows the module to be installed on distribution frames to form modular distribution frames. This supports flexible system planning and simplifies future expansion or maintenance.

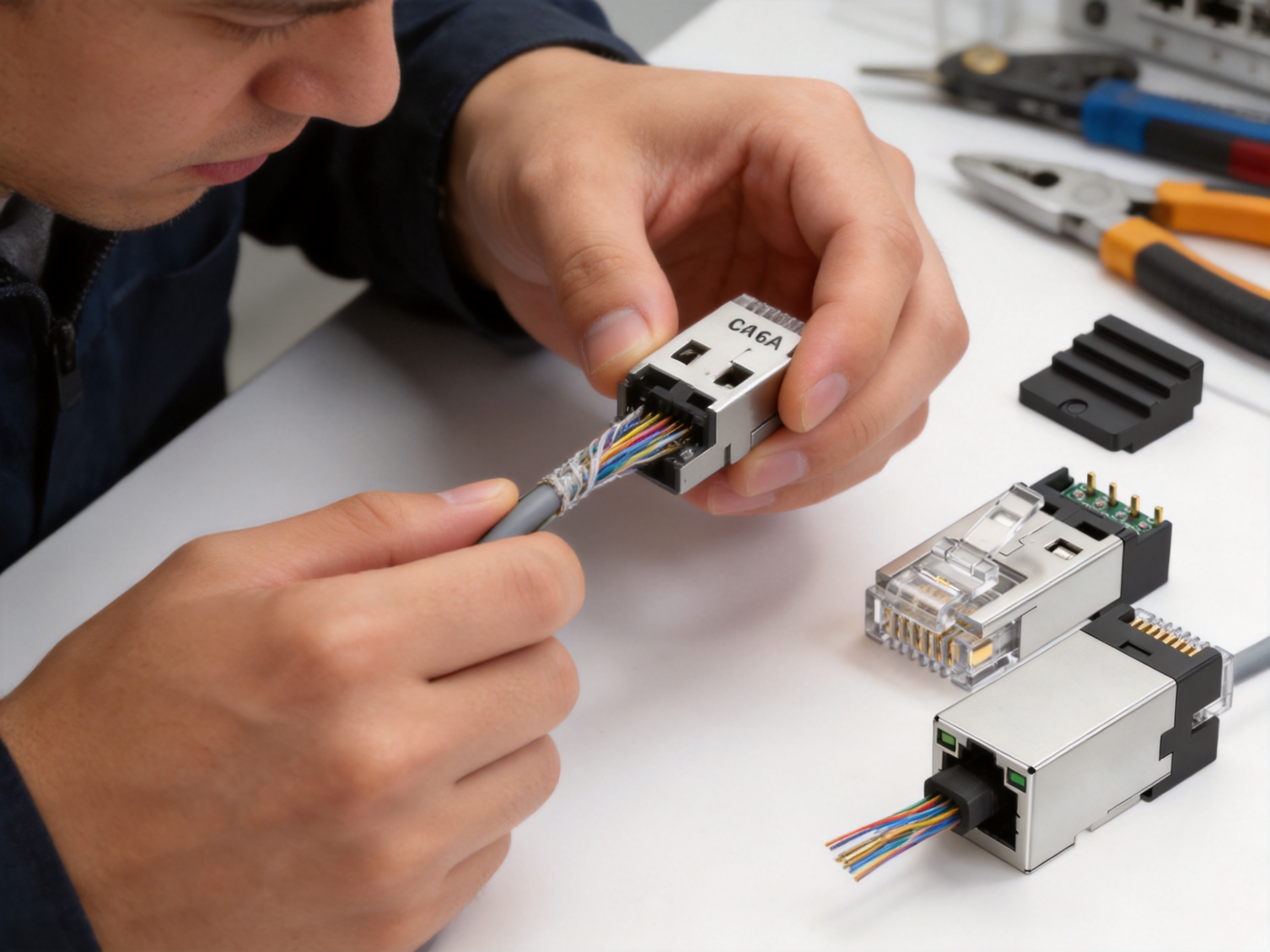

The IDC terminal clamps 23 to 26 AWG twisted-pair cable conductors. This range covers common solid conductors used in structured cabling and allows the product to serve a wide variety of project requirements. The toolless termination structure is especially helpful when installers need to maintain pair twist as close as possible to the termination point. Better pair management helps preserve transmission performance.

In a conventional installation, errors can occur when wires are placed into the wrong slots, insufficiently seated, excessively untwisted, or damaged by improper tool force. A well-designed toolless module helps guide the wire into the correct position and creates a controlled termination action. This reduces variability between installers and improves the consistency of completed ports.

The 90 degree body structure can also improve cable strain management. In shallow mounting boxes, a straight rear cable path may force the cable to bend sharply. Excessive bending can distort twisted-pair geometry and affect high-frequency performance. A right-angle design helps the cable leave the module in a more natural direction, reducing stress at the termination area.

For project contractors, faster installation and fewer failures during final testing can greatly improve profitability. A component that combines clear labels, toolless termination, and stable IDC contact helps reduce rework. For building owners, it can shorten project schedules and provide more confidence in long-term network performance.

Material Selection and Surface Treatment

Material choice is one of the foundations of product quality. The RJ45 contact pins use phosphor bronze with gold plating. Phosphor bronze is known for good elasticity and conductivity, making it suitable for repeated mechanical contact. Gold plating improves surface conductivity and resists oxidation, which is essential for low-resistance signal transfer across many mating cycles.

The IDC card wire terminals use phosphor bronze with nickel plating. Nickel plating provides durability and corrosion resistance, supporting stable contact between the terminal and the copper conductor. IDC contacts must pierce or displace insulation and maintain pressure on the conductor over time. A reliable spring material is therefore necessary to prevent loose contact or intermittent faults.

The non-metallic material is PC polycarbonate. PC is valued for impact resistance, dimensional stability, and heat resistance. In a keystone jack, the plastic housing must hold metal contacts in precise alignment while resisting installation pressure, plug insertion force, and environmental changes. A stable housing helps maintain contact geometry and supports long-term performance.

The printed circuit board material is FR4, a standard material for dependable electrical products. It supports controlled internal circuit paths and contributes to stable high-frequency behavior. In CAT6A connectivity, the internal circuit design is not simply a carrier for contacts; it is part of the signal transmission path. Consistent PCB material and manufacturing control are therefore important for product performance.

The gold-plated layer thickness can range from 3 to 50 microinches, providing flexibility for different market requirements. Applications with frequent patching or stricter reliability requirements may prefer thicker gold plating. Cost-sensitive applications can still benefit from the conductivity of gold plating while selecting a specification aligned with the project budget.

Environmental Performance

The product is designed for an operating temperature range of -25°C to +70°C and humidity conditions up to 85% at 85°C ±3°C. This broad environmental performance range makes it suitable for many indoor building environments, including equipment rooms, office spaces, residential smart home systems, and communication cabinets.

Salt spray testing requirements are also described for the product. The salt solution before atomization has a pH value between 6.5 and 7.2 at 35°C ±2°C. The solution is prepared using sodium chloride and distilled or deionized water at a concentration of 5% ±0.1% by mass. Continuous atomization is adopted, with a recommended duration of 48 hours. During atomization, impurities such as oil and dust must be prevented from affecting the test space.

Salt spray performance is relevant because connectors may be stored, transported, or used in environments where humidity and corrosive elements are present. While most structured cabling products are used indoors, corrosion resistance remains important for preserving electrical contact quality. The combination of appropriate metal plating, controlled materials, and environmental testing helps support long-term reliability.

Applications in Structured Cabling Systems

The SMT-1043T8C6A-FTP is suitable for communication socket connections between equipment and work areas. In a typical structured cabling system, horizontal cables run from telecommunications rooms to work-area outlets. Keystone jacks provide the final modular interface at the outlet or patch panel. Because each network link may depend on two or more terminated jacks, the quality of the keystone jack has a direct impact on channel performance.

In office buildings, this product can be used in wall face plates, floor boxes, and modular furniture cabling. Its compact structure and 90 degree orientation help installers handle limited space. The toolless design supports quick deployment when a large number of workstations must be connected within a short installation window.

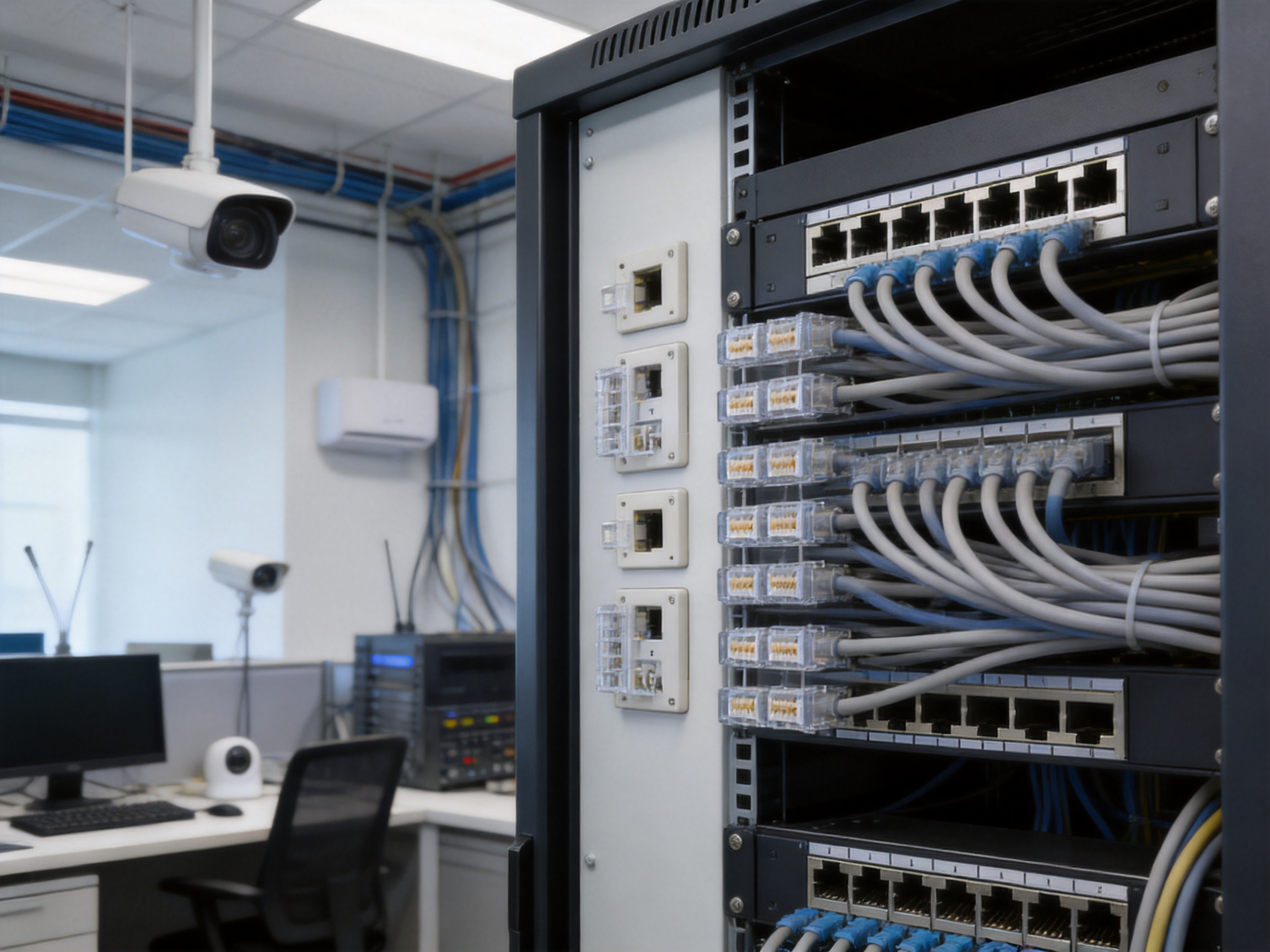

In data rooms and network cabinets, the product can be installed in modular patch panels. The embedded design allows modules to form modular distribution frames, giving administrators flexibility to replace or rearrange individual ports. This modularity is helpful when network needs change, departments move, or new equipment is added.

In smart homes, the keystone jack can support high-speed wired connections for media systems, access points, security devices, home offices, and automation controllers. Although wireless devices are common, wired backbones remain essential for performance-sensitive applications. A CAT6A shielded outlet provides stable connectivity for high-bandwidth home networking.

In automation equipment and industrial-adjacent environments, shielded connectivity can be important because of electromagnetic noise from machinery, drives, motors, and control systems. While system design must consider the entire cabling route, using a shielded CAT6A jack helps maintain a protected connection point.

Company Manufacturing Strengths

Yuyao Simante Network Communication Equipment Co., Ltd. is a professional manufacturer of network cabling solutions and optical fiber products. The company integrates design, development, sales, and service, allowing it to support customers from product selection through customization and supply. Nearly 20 years of service experience gives the company practical knowledge of customer requirements in different markets.

The company’s manufacturing strength begins with its research and development system. Quality is not created only during final inspection; it must be designed into the product from the beginning. Simante has more than 10 engineers and over 30 full-time technical personnel who contribute to product design, quality improvement, and product updates. This technical foundation helps ensure that products such as CAT6A keystone jacks are not merely assembled components but carefully developed connectivity solutions.

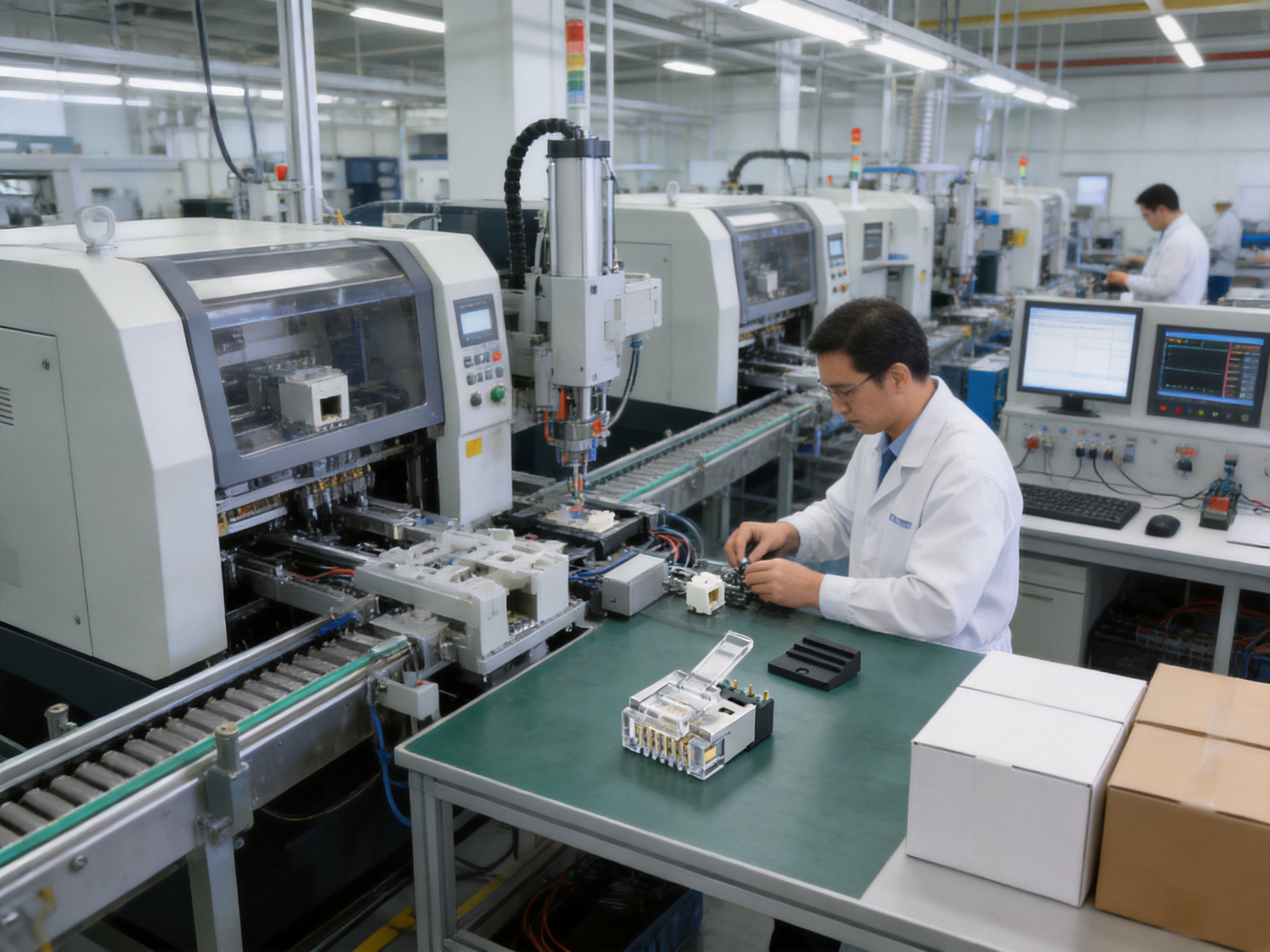

The factory has 10 regular and customization production lines. This combination supports both standardized mass production and customer-specific requirements. For distributors, system integrators, and OEM/ODM customers, production flexibility is important because market needs vary by region, standard, packaging preference, performance level, and branding requirement.

The company operates 10 fully automatic injection molding machines and 20 semi-automatic injection molding machines. Injection molding is a critical process for keystone jack production because the plastic housing must maintain accurate dimensions, stable contact alignment, and consistent assembly fit. High-quality molds and controlled molding conditions help reduce dimensional variation, warping, and assembly defects.

In addition, the factory uses 8 sets of automatic installed machines. Automated assembly improves consistency and production efficiency. For high-volume network components, automation helps reduce human error, improve repeatability, and maintain stable output. The company maintains an annual output of more than 9 million units, demonstrating large-scale manufacturing capability.

The company serves markets in Europe, Australia, Africa, the Middle East, and Southeast Asia. Export experience is valuable because international customers often require consistent quality, stable packaging, reliable delivery, and compliance with market expectations. The company also undertakes OEM and ODM projects, helping customers develop products or packaging solutions aligned with their own market strategies.

Simante emphasizes the high-end market and applies higher requirements to product quality. This includes strict production management and the ability to meet comprehensive testing requirements. In the context of the SMT-1043T8C6A-FTP keystone jack, this manufacturing philosophy supports stable electrical performance, precise mechanical fit, durable materials, and reliable installation performance.

Advanced Production Process Behind the Product

The production of a high-performance CAT6A keystone jack involves multiple controlled stages. It begins with product design and engineering verification. Engineers consider transmission performance, internal contact arrangement, shielding structure, IDC termination geometry, housing strength, and installation convenience. The goal is to produce a connector that satisfies technical standards while remaining practical for installers.

Material procurement is another important step. Contact materials, plating quality, plastic resin, PCB material, and shielding components must meet defined specifications. Inconsistent materials can lead to unstable electrical performance or mechanical failure. By controlling material selection, the manufacturer improves the predictability of finished products.

Injection molding forms the housing components. The accuracy of molded parts directly affects how contacts are positioned and how the module fits into patch panels or face plates. With automatic and semi-automatic injection molding capacity, the company can support both scale and flexibility. Process control helps ensure consistent dimensions across large production batches.

Metal contact production and surface treatment follow strict requirements. Gold-plated phosphor bronze contacts must maintain correct thickness, smoothness, and spring properties. IDC terminals require durable nickel plating and precise geometry to ensure proper conductor contact. Surface treatment is not cosmetic; it directly influences conductivity, corrosion resistance, and contact life.

PCB preparation and internal assembly must be controlled to preserve high-frequency performance. CAT6A connectors require careful internal pair compensation and crosstalk control. Contact pin dislocation technology, PCB layout, and assembly precision all contribute to reducing near-end crosstalk. Even small deviations can affect performance at higher frequencies.

Final assembly brings together the housing, contacts, IDC structure, shielding, and toolless termination mechanism. Automated installed machines improve efficiency and consistency. Workers and technical personnel monitor assembly quality, ensuring that the product operates smoothly, locks correctly, and meets mechanical requirements.

Testing and inspection complete the production cycle. Electrical parameters, mechanical insertion and withdrawal characteristics, insulation resistance, withstand voltage, and visual quality may be checked according to product requirements. Packaging inspection ensures that products are protected during transportation and storage. This systematic manufacturing approach allows the final product to support demanding structured cabling applications.

Quality Control and Testing Philosophy

Quality control for network cabling components must address both visible and invisible characteristics. A keystone jack may look acceptable but fail high-frequency transmission testing if internal geometry is not controlled. Therefore, quality assurance must include material inspection, dimensional control, process monitoring, and performance testing.

The product’s listed technical parameters provide a clear quality framework. The frequency range of 1 to 500 MHz, insulation resistance values, voltage withstand capability, insertion and pull-out force requirements, IDC conductor range, durability cycles, and environmental requirements all function as measurable performance criteria. These parameters give customers confidence when selecting the product for structured cabling projects.

The company’s engineering and technical teams contribute to quality stability by improving product designs and processes. When customer feedback or market demand requires updates, the technical team can support product optimization. This is especially important in cabling products, where installation habits, regional standards, and customer packaging preferences may differ.

Quality also depends on production management. Stable annual output of more than 9 million units requires consistent processes, trained personnel, reliable equipment, and clear inspection procedures. The company’s investment in automatic and semi-automatic machines supports repeatable production, while its experience in export markets encourages strict attention to consistency.

Packaging, Storage, and Logistics Considerations

The product is placed into a special blister bag and then into a cardboard box. Product accessories are placed at the same time, and a label indicating the product model and quantity is affixed on the upper left corner of the front of the carton. Clear labeling supports inventory control, shipping accuracy, and project-site management.

The regular packing quantity is 10 boxes per carton, 50 pieces per box, and 500 pieces per carton. This packaging arrangement is convenient for distributors and project contractors because it supports batch counting and organized storage. For large cabling projects, standardized packaging helps reduce handling errors and improves site efficiency.

Packaged products should be stored in a warehouse with ambient temperature from -5°C to +30°C and relative humidity not more than 70%. The surrounding air should not contain acid, alkali, or other corrosive gases. Under these conditions, the storage period is three years. Proper storage helps preserve contact quality, plastic stability, and packaging integrity before installation.

Customer-specified packaging is also noted. This is important for OEM and ODM customers who require private-label cartons, special instructions, project-specific packaging, or regional documentation. Packaging customization can improve customer brand presentation and simplify distribution in target markets.

Comparison with Common Alternatives

When selecting keystone jacks, customers often compare CAT6A shielded toolless modules with lower-category, unshielded, or punch-down alternatives. Each option has a place, but the SMT-1043T8C6A-FTP offers a stronger combination of speed readiness, installation efficiency, and environmental protection.

Compared with CAT5e or CAT6 jacks, this CAT6A jack offers higher frequency performance. This makes it more appropriate for projects where the network infrastructure must remain useful for future high-bandwidth applications. Lower-category jacks may reduce initial cost, but they can limit future upgrades and require replacement when performance demands increase.

Compared with unshielded jacks, the FTP shielded design provides better protection against electromagnetic interference. In simple residential settings, unshielded components may be sufficient. However, in commercial buildings, equipment rooms, and electrically noisy environments, shielded connectivity adds a valuable layer of signal protection.

Compared with punch-down jacks, the toolless structure can reduce installation time and improve termination consistency. Punch-down tools are effective when used correctly, but improper force or technique can damage conductors or create unreliable contact. Toolless termination helps reduce this risk and is especially useful for contractors managing large teams or fast project schedules.

Compared with straight-entry modules, the 90 degree design improves cable routing flexibility. This advantage becomes significant in shallow boxes, compact panels, or installations where cable bending radius must be carefully managed. By reducing strain at the termination point, the product supports both physical reliability and transmission performance.

Value for Different Customer Groups

For Distributors

Distributors need products that combine market demand, reliable supply, and consistent quality. CAT6A shielded toolless keystone jacks are attractive because they address high-performance network projects and future-ready cabling. With regular packaging of 500 pieces per carton and stable large-scale production capacity, the product is suitable for inventory planning and regional distribution.

For System Integrators

System integrators benefit from components that reduce installation time and testing failures. The toolless structure, clear T568A/T568B label, shielded design, and 90 degree cable orientation help improve project efficiency. A reliable keystone jack supports smoother acceptance testing and reduces the cost of rework.

For OEM and ODM Customers

OEM and ODM customers often need flexible packaging, product adaptation, and stable quality. The manufacturer’s design and development capability, production line flexibility, and export experience support customized cooperation. Customer-specified packaging also helps private-label customers build a consistent market identity.

For End Users and Building Owners

End users care about stable network operation, low maintenance, and upgrade readiness. A CAT6A keystone jack with shielding and durable contacts can support reliable long-term infrastructure. Because it is backward compatible with lower categories, building owners can upgrade cabling infrastructure without immediately replacing all active devices.

Installation Best Practices

To get the best performance from a CAT6A keystone jack, installers should follow structured cabling best practices. The cable jacket should be stripped carefully without damaging conductors. Pair twist should be maintained as close as possible to the termination point. Excessive untwisting can increase crosstalk and reduce high-frequency performance.

The installer should choose the correct wiring sequence, T568A or T568B, and keep the same sequence throughout the link unless a specific crossover configuration is required. The product’s clear wiring label helps avoid mistakes, but technicians should still verify cable routing before final termination.

The cable should be seated fully into the IDC area according to the toolless termination mechanism. After termination, the cable should not be pulled sharply or bent beyond recommended limits. The 90 degree design helps routing, but proper cable management remains essential.

When using shielded cabling, grounding and bonding practices should follow the project design and applicable standards. Shielding is most effective when the entire shielded channel is designed correctly, including cable, patch panel, keystone jack, patch cord, and grounding system. A shielded jack is an important component, but the total channel design determines final performance.

After installation, links should be tested with suitable network cabling test equipment according to the required category and project acceptance criteria. Testing helps confirm wire map, length, insertion loss, return loss, crosstalk, and other parameters. A high-quality jack improves the chance of passing these tests, but proper installation is still essential.

How the Product Supports Future-Ready Cabling

Future-ready cabling does not mean choosing the most expensive product in every situation. It means selecting components that provide a rational balance of performance, durability, compatibility, and installation efficiency. The SMT-1043T8C6A-FTP meets this concept by combining CAT6A transmission capability, backward compatibility, shielding, and toolless termination.

Because the product can be used with CAT6, CAT5e, and lower-category systems, it allows gradual network upgrades. A building may initially use lower-speed switches or endpoint devices, but the passive cabling can already be prepared for higher-performance applications. This reduces disruption when future upgrades occur.

Its modular keystone format also supports long-term flexibility. If a port is damaged or a layout changes, an individual module can be replaced or moved without replacing an entire panel. This modularity helps reduce maintenance cost and supports scalable infrastructure planning.

The durable plug mating cycles and wire termination cycles also support long-term use. In real buildings, outlets may be reconfigured, patch cords may be replaced, and network rooms may be reorganized. A connector designed for repeated use helps preserve reliability through these changes.

Q&A Section

Q1: What is the main purpose of this 90 degree shielded CAT6A toolless keystone jack?

It is used to connect horizontal cabling with work-area wiring in structured cabling systems. It provides an RJ45 interface for patch cords and IDC termination for network cable conductors.

Q2: Why is CAT6A performance important?

CAT6A supports higher-frequency transmission up to 500 MHz, giving the cabling system more bandwidth headroom than lower-category components. This is useful for modern high-speed networks and future upgrades.

Q3: Can it work with CAT6 or CAT5e systems?

Yes. The product has backward compatibility with CAT6, CAT5e, and lower-category systems, allowing it to be used in mixed or upgrade-oriented network environments.

Q4: What is the benefit of the shielded FTP design?

The shielded design helps reduce the influence of electromagnetic interference. This is especially valuable in dense cabling environments, equipment rooms, commercial buildings, and areas near electrical systems.

Q5: Why choose a 90 degree keystone jack?

A 90 degree structure helps with cable routing in limited spaces, shallow wall boxes, patch panels, and cabinets. It can reduce cable bending stress and support cleaner installation.

Q6: What does toolless termination mean?

Toolless termination means the installer can complete IDC cable termination without a traditional punch-down tool. This can improve installation speed and reduce termination variability.

Q7: Which wiring sequences does it support?

It supports both T568A and T568B wiring sequences. The universal wiring label is clearly marked on the module to help installers terminate accurately.

Q8: What cable conductor size is suitable?

The IDC terminal is designed to clamp 23 to 26 AWG twisted-pair conductors, which are common in structured cabling installations.

Q9: What materials are used in the contacts?

The gold needles are phosphor bronze with gold plating, and the IDC terminals are phosphor bronze with nickel plating. These materials support conductivity, elasticity, and corrosion resistance.

Q10: How many insertion cycles does the jack support?

The plug and socket insertion durability is 750 cycles, supporting repeated connection and maintenance over the product life.

Q11: Is the product environmentally compliant?

Yes. The product meets ROHS requirements, supporting controlled material use and responsible procurement.

Q12: What makes the manufacturer suitable for OEM and ODM projects?

The manufacturer has design and development capability, experienced engineers and technical personnel, multiple production lines, automatic and semi-automatic injection molding equipment, automatic assembly equipment, and export experience. These strengths support customization, stable quality, and large-scale supply.

Conclusion

The SMT-1043T8C6A-FTP 90 Degree Shielded CAT6A Toolless Keystone Jack is a compact but important component for reliable structured cabling. Its CAT6A performance, 1 to 500 MHz frequency range, shielded FTP design, 90 degree structure, and toolless termination make it suitable for modern copper cabling systems that require both speed and installation efficiency.

Compared with ordinary lower-category, unshielded, or tool-dependent keystone jacks, this product provides stronger future readiness, better interference resistance, more convenient routing, and faster field termination. Its clear T568A/T568B labeling, durable phosphor bronze contacts, gold-plated RJ45 pins, nickel-plated IDC terminals, PC housing, FR4 PCB, and robust electrical specifications further support reliable long-term performance.

The manufacturing foundation behind the product adds additional value. Yuyao Simante Network Communication Equipment Co., Ltd. combines nearly 20 years of industry experience with engineering capability, technical personnel, advanced injection molding capacity, automatic assembly equipment, multiple production lines, and large annual output. Its focus on quality management, testing, OEM/ODM service, and international markets makes it a capable supplier for distributors, system integrators, and customized cabling product customers.

For high-performance office networks, modular patch panels, wall outlets, smart home systems, automation environments, and future-ready building infrastructure, this 90 degree shielded CAT6A toolless keystone jack offers a practical balance of performance, reliability, and installation convenience.
