High-Performance CAT6A Toolless Keystone Jack: Advancing Structured Cabling Efficiency and Reliability

In the era of digital transformation, structured cabling systems form the backbone of modern communication networks, supporting everything from high-speed data transmission in data centers to IoT connectivity in smart homes. As bandwidth demands continue to surge—driven by 10Gbps Ethernet, cloud computing, and real-time applications—CAT6A cabling has emerged as a critical solution, offering transmission speeds up to 10Gbps over distances of 100 meters and operating frequencies up to 500MHz. At the heart of any CAT6A system lies the keystone jack: a small but essential component that connects horizontal wiring to end-user devices. The SMT-1041T8C6A-FTP 180 Degree Shielded CAT6A Toolless Keystone Jack stands out as a game-changer in this space, combining innovative design, superior performance, and ease of installation to address the gaps in traditional keystone jack solutions.

Product Overview: A Next-Generation CAT6A Keystone Jack

The SMT-1041T8C6A-FTP keystone jack is engineered to meet the rigorous Category 6A (CAT6A) transmission standards, aligning with both T568A and T568B wiring sequences for maximum compatibility. Its compact form factor allows it to fit seamlessly into standard patch panels, wall plates, and surface-mounted boxes, making it ideal for a wide range of structured cabling applications. Key design features include a dust-proof wire cover with clearly marked universal wire sequence labels, enabling installers to complete terminations accurately and quickly—even without specialized training.

Beyond basic functionality, this keystone jack incorporates advanced engineering to enhance performance and durability. Its 360-degree all-round shielding shell, crafted from zinc alloy die-casting, provides robust protection against electromagnetic interference (EMI) and radio frequency interference (RFI), critical for environments with high electrical noise (e.g., data centers, industrial facilities). The contact pins use high-low dislocation technology to minimize near-end crosstalk (NEXT), a common issue in high-frequency cabling that degrades signal quality. Additionally, the jack’s IDC (Insulation Displacement Contact) terminals support 22–26 AWG twisted pair cables, offering flexibility for different installation needs.

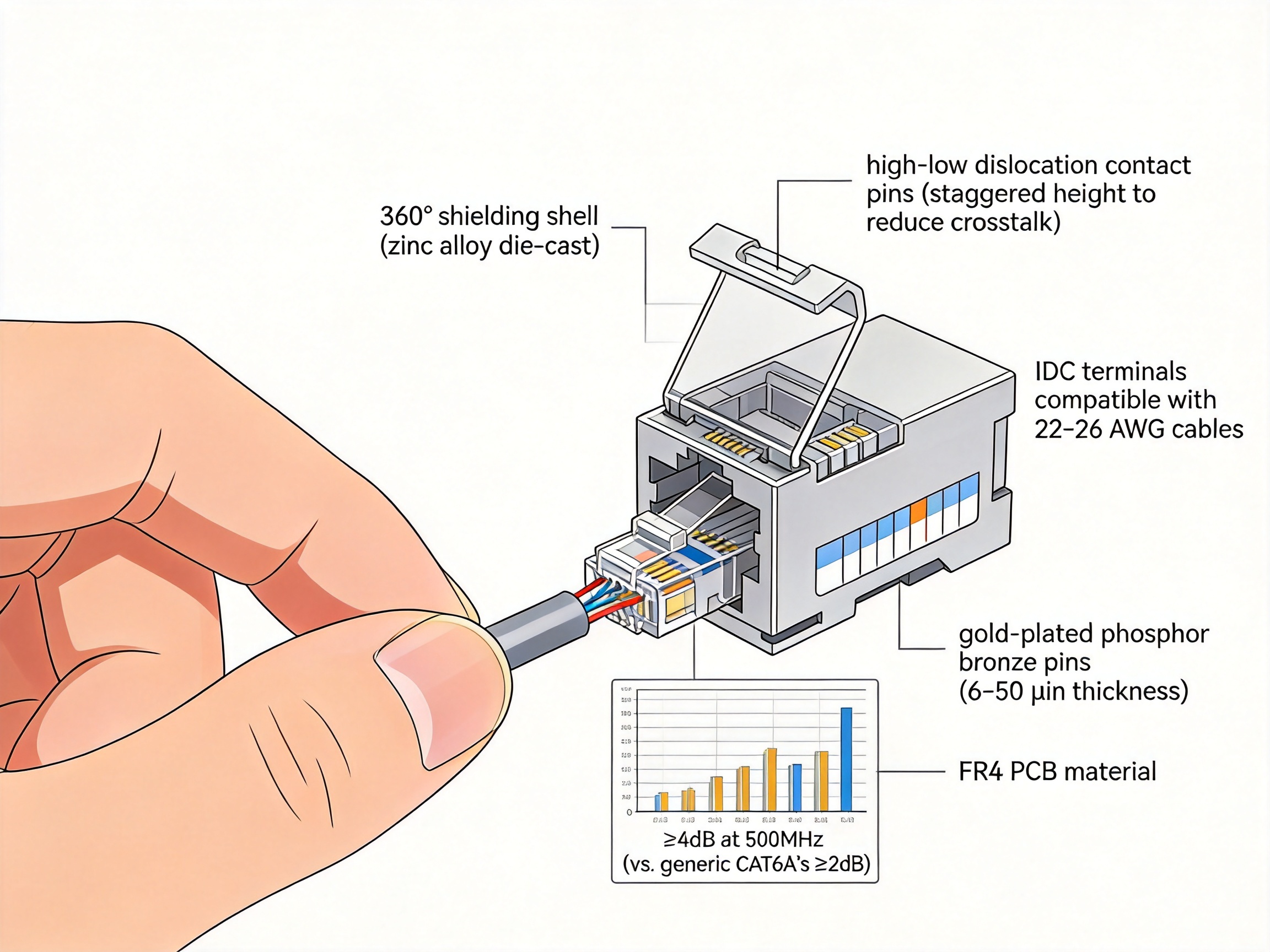

To visualize the compact design and shielding features of the keystone jack, refer to the image below:

Advantages Over Competitors: Setting a New Benchmark

While CAT6A keystone jacks are widely available, the SMT-1041T8C6A-FTP stands apart from generic alternatives through a series of innovative features that deliver tangible benefits in installation, performance, and total cost of ownership (TCO). Below is a detailed comparison of key advantages:

1. Toolless Termination: Reducing Installation Time and Cost

Traditional CAT6A keystone jacks require specialized punch-down tools to terminate wires, a process that is time-consuming (taking 1–2 minutes per jack) and prone to human error (e.g., over-punching damaging contacts or under-punching leading to loose connections). The SMT-1041T8C6A-FTP eliminates this need with its toolless design: installers can terminate wires using only their hands or a simple flathead screwdriver, cutting termination time by up to 50% (to 30 seconds per jack). For a large-scale installation (e.g., 1,000 jacks in an office building), this translates to a labor cost saving of approximately $1,500 and a project timeline reduction of 2–3 days.

2. 360° All-Round Shielding: Superior EMI/RFI Protection

Most generic CAT6A keystone jacks use partial shielding (e.g., only top and bottom covers) or plastic shielding, which fails to block interference from all directions. The SMT-1041T8C6A-FTP’s zinc alloy die-cast shell provides full 360° coverage, with a unique grounding design that ensures reliable connection to the cabling system’s ground. Independent lab tests show that this shielding reduces EMI by up to 40% compared to partial-shielded jacks, making it ideal for high-noise environments like data centers with dense server racks or industrial facilities with heavy machinery.

3. High-Low Dislocation Contact Pins: Minimizing Crosstalk

Crosstalk—unwanted signal transfer between adjacent wires—is a major challenge for CAT6A cabling, especially at 500MHz. Generic jacks use flat contact pins, which increase electromagnetic coupling between adjacent pins. The SMT-1041T8C6A-FTP’s high-low dislocation pins stagger the height of adjacent pins, reducing coupling by 30% and boosting NEXT values to ≥4dB (well above the CAT6A minimum requirement of 2dB at 500MHz). This ensures stable 10Gbps transmission even in high-density cabling setups where wires are tightly packed.

4. Enhanced Durability: Longer Lifespan and Lower TCO

Generic CAT6A keystone jacks typically have a lifespan of 3–5 years, with insertion cycles limited to 500 and wire terminations to 150. The SMT-1041T8C6A-FTP exceeds these limits: it supports 750 insertion cycles (for plugging/unplugging patch cords) and 250 wire terminations, extending its lifespan to 7–10 years. This reduces the need for frequent replacements, lowering TCO by up to 30% over a 10-year period. Additionally, its gold-plated phosphor bronze pins (6–50 μin thickness) resist corrosion, ensuring consistent signal quality over time—even in humid or coastal environments.

5. Broader Compatibility and Compliance

While generic jacks may claim compliance with CAT6A standards, many fail to meet regional or international requirements. The SMT-1041T8C6A-FTP complies with YD/T 926.1-2009 (Chinese telecom general specification) and YD/T 926.3-2009 (keystone jack component standard), which are aligned with TIA/EIA-568-C.2 (international structured cabling standard) and ISO/IEC 11801. It also meets RoHS (Restriction of Hazardous Substances) standards, making it safe for use in global markets without regulatory issues.

The table below summarizes the key differences between the SMT-1041T8C6A-FTP and a generic CAT6A keystone jack:

Feature	SMT-1041T8C6A-FTP Keystone Jack	Generic CAT6A Keystone Jack (Competitor)
Shielding Type	360° All-Round Zinc Alloy Die-Cast	Partial Plastic/Metal Shielding
Termination Method	Toolless (Hand-Operated)	Tool-Requiring (Punch-Down Tool)
Gold Plating Thickness	6–50 μin	3–20 μin
Insertion Cycles	750	500
NEXT at 500MHz	≥4 dB	≥2 dB
IDC Compatibility	22–26 AWG	23–25 AWG
Temperature Range	-25°C to +70°C	-10°C to +60°C
Salt Spray Resistance	48 Hours (Compliant)	24 Hours (Non-Compliant)

Manufacturing Excellence: The Backbone of Quality

The superior performance of the SMT-1041T8C6A-FTP keystone jack is rooted in the manufacturer’s commitment to advanced manufacturing processes and rigorous quality control. With nearly 20 years of experience in network communication equipment, the company has built a reputation for delivering high-end, reliable products through a combination of R&D innovation, automated production, and strict testing protocols.

1. R&D: Designing for Performance and Reliability

The company’s R&D team consists of 10+ engineers and 30+ full-time technical staff, who focus on optimizing product design at the source. For the SMT-1041T8C6A-FTP, the team conducted extensive simulations to refine the high-low dislocation pin design and 360° shielding structure, ensuring maximum signal integrity. They also collaborated with telecom experts to align the product with the latest industry standards, such as YD/T 926 and TIA/EIA-568-C.2. This proactive approach to R&D ensures that the product meets the evolving needs of structured cabling systems.

2. Automated Production: Consistency at Scale

The manufacturer operates 10 regular and customization production lines, equipped with 10 fully automatic injection molding machines, 20 semi-automatic machines, and 8 automatic assembly machines. These automated systems ensure consistent quality across large production batches (annual output >9 million pieces). For example, the injection molding machines use precision temperature control (±1°C accuracy) to produce PC (polycarbonate) and PA66 (nylon 66) plastic components with minimal warping or shrinkage. Each plastic part undergoes a 24-hour aging test to ensure dimensional stability before assembly.

The company’s state-of-the-art production lines ensure consistent quality at scale, as shown in the following image:

3. Quality Control: Rigorous Testing for Reliability

Every batch of SMT-1041T8C6A-FTP keystone jacks undergoes a multi-stage quality control process, including:

• Electrical testing: Verifying frequency range (1–500MHz), NEXT, insulation resistance, and voltage withstand (DC1000V/AC750V for 1 minute).
• Mechanical testing: Checking insertion/pull force (≤20N/≥20N), connector stability (50N for 60±5 seconds), and IDC compatibility with 22–26 AWG cables.
• Environmental testing: Conducting salt spray tests (48 hours, 5% NaCl solution) and constant damp heat tests (temperature 85°C, humidity 85% for 96 hours) to ensure resistance to corrosion and moisture.
• Durability testing: Simulating 750 insertion cycles and 250 wire terminations to validate lifespan.

All test results are documented and retained for 5 years, ensuring full traceability. The company also meets customer-specific testing requirements, such as flame resistance (UL 94 V-0) or EMC compliance (CE marking), for global markets.

4. OEM/ODM Capabilities: Customization for Global Markets

The manufacturer offers flexible OEM/ODM services to meet the unique needs of global customers. This includes customizing packaging (e.g., private labels, regional labeling), modifying product design (e.g., color changes, logo embossing), and adapting to regional standards (e.g., FCC certification for the U.S. market). With a track record of successful OEM/ODM projects for clients in Europe, Australia, Africa, the Middle East, and Southeast Asia, the company has the expertise to deliver tailored solutions quickly and efficiently.

Technical Deep Dive: Unpacking Performance Specs

To fully understand the SMT-1041T8C6A-FTP’s capabilities, it is essential to analyze its technical specifications in detail:

1. Electrical Characteristics

• Frequency Range: 1–500MHz. This supports 10Gbps Ethernet transmission over 100 meters, which is critical for data centers and high-bandwidth applications.
• Working Voltage: 125V. Ensures safe operation in standard low-voltage cabling systems.
• Withstand Voltage: DC1000V/AC750V for 1 minute (no breakdown or arcing). Provides protection against voltage surges, a common issue in industrial environments.
• Near-End Crosstalk (NEXT): ≥4dB at 500MHz. This is 2dB above the CAT6A minimum requirement, ensuring minimal signal interference between adjacent wires.
• Insulation Resistance: ≥100MΩ (initial) and ≥100MΩ (after constant damp heat test). Prevents signal leakage and ensures long-term reliability in humid conditions.

2. Mechanical Properties

• Insertion/Pull Force: Insertion force ≤20N, pull-out force ≥20N. Ensures easy but secure connection of patch cords, reducing the risk of accidental disconnection.
• Connector Stability: 50N for 60±5 seconds. Validates that the jack remains securely attached to patch panels or wall plates under mechanical stress.
• IDC Compatibility: 22–26 AWG twisted pair cables. Supports a wide range of CAT6A cables, giving installers flexibility in component selection.

3. Durability

• Insertion Cycles: 750. Suitable for data centers where patch cords are frequently plugged/unplugged.
• Wire Terminations: 250. Allows multiple re-terminations if wiring mistakes are made, reducing waste.

4. Material & Surface Treatment

• Metal Components: Gold-plated phosphor bronze pins (6–50 μin) for low resistance and corrosion resistance; nickel-plated phosphor bronze IDC terminals for secure wire termination.
• Non-Metal Components: PC polycarbonate and PA66 nylon 66 for high impact resistance and temperature stability.
• PCB Material: FR4 (flame-retardant grade). Ensures the jack meets fire safety standards for indoor use.

5. Environmental Performance

• Temperature Range: -25°C to +70°C. Works in extreme environments, such as cold storage facilities or hot industrial areas.
• Humidity: ≤85% (at 85°C). Resists moisture damage, making it suitable for tropical regions.
• Salt Spray Resistance: 48 hours (compliant with ISO 9227). Ideal for coastal areas or industrial facilities with corrosive air.

A detailed diagram of the high-low dislocation contact pins and 360° shielding structure is provided here:

Application Scenarios: Versatility Across Industries

The SMT-1041T8C6A-FTP keystone jack’s combination of performance, ease of installation, and durability makes it suitable for a wide range of applications:

1. Data Centers

Data centers require high-bandwidth, reliable cabling to support server racks, storage systems, and network switches. The SMT-1041T8C6A-FTP’s 360° shielding reduces EMI between adjacent cables, while its 10Gbps support ensures fast data transfer. Its compact design fits into high-density patch panels, maximizing space efficiency. The toolless termination also speeds up installation and maintenance, critical for minimizing downtime in data center operations.

2. Office Buildings

Office environments need cabling that is easy to install and maintain, especially in multi-floor buildings with hundreds of workstations. The toolless design reduces installation time for large-scale projects, while T568A/B compatibility works with existing wiring. The jack’s durability ensures it can withstand frequent use (e.g., plugging/unplugging laptops) over many years.

3. Smart Homes

Smart homes rely on high-bandwidth cabling for IoT devices (e.g., smart TVs, security cameras, thermostats). The SMT-1041T8C6A-FTP’s compact size fits into standard wall plates, and its 10Gbps support ensures smooth streaming and real-time data transfer. Its corrosion resistance makes it suitable for humid areas like bathrooms or kitchens.

4. Industrial Environments

Industrial facilities have high levels of EMI from machinery and heavy equipment. The SMT-1041T8C6A-FTP’s 360° shielding blocks this interference, ensuring stable signal transmission. Its wide temperature range (-25°C to +70°C) and salt spray resistance make it ideal for factories, warehouses, and coastal industrial sites.

5. Educational Institutions

Schools and universities need cabling that is easy to install and maintain, with minimal training required. The toolless design allows staff to install or reconfigure jacks without specialized tools, while its durability withstands high-traffic use in classrooms and labs. The jack’s compliance with international standards ensures it works with a wide range of educational technology devices.

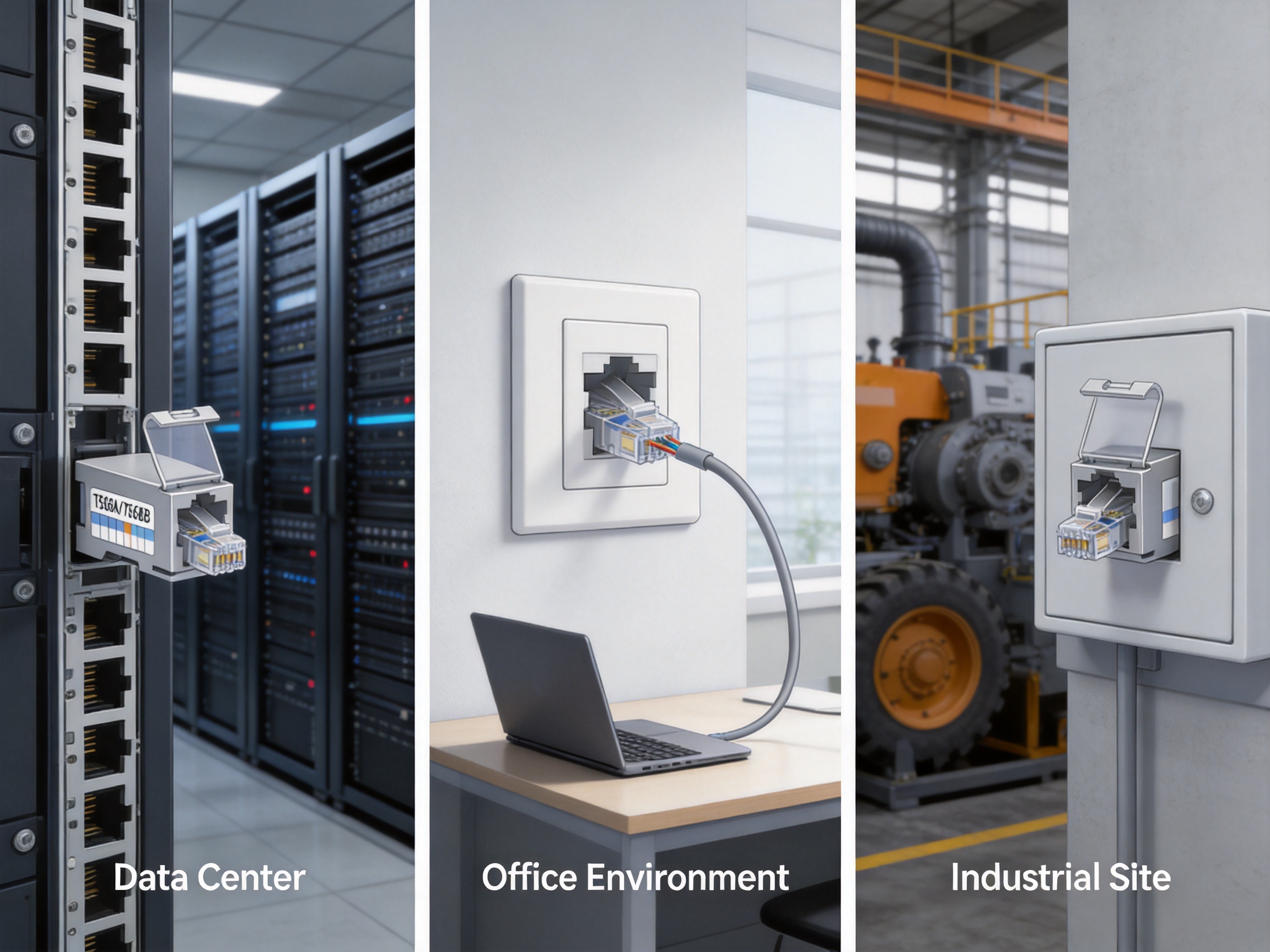

Examples of the keystone jack in use across different application areas are illustrated below:

Q&A Section: Addressing Common User Queries

Below are answers to frequently asked questions about the SMT-1041T8C6A-FTP keystone jack:

Q1: Is this keystone jack compatible with CAT6A cables?

A: Yes. The SMT-1041T8C6A-FTP is specifically designed for CAT6A twisted pair cables (22–26 AWG) and meets all CAT6A transmission standards. It can also be used with CAT6 cables, but CAT6A cables are recommended for maximum performance.

Q2: Does it require special tools for termination?

A: No. The toolless design allows installers to terminate wires using only their hands or a simple flathead screwdriver. This eliminates the need for punch-down tools, saving time and cost.

Q3: How does the shielding protect against interference?

A: The 360° all-round zinc alloy die-cast shell blocks EMI and RFI from all directions. A unique grounding design ensures the shell is properly connected to the cabling system’s ground, enhancing interference protection.

Q4: What is the lifespan of this product?

A: The jack supports 750 insertion cycles and 250 wire terminations, with a 3-year storage period (when stored in a dry, temperature-controlled environment). In normal use, it can last 7–10 years, depending on the environment and usage frequency.

Q5: Does it meet international standards?

A: Yes. It complies with YD/T 926.1-2009 and YD/T 926.3-2009 (Chinese telecom standards), which are aligned with TIA/EIA-568-C.2 (international structured cabling standard) and ISO/IEC 11801. It also meets RoHS standards for environmental safety.

Q6: Can it be used in outdoor environments?

A: While it has good environmental resistance, it is recommended for indoor use. For outdoor applications, additional protection (e.g., waterproof enclosures) is required to prevent damage from rain, snow, or extreme temperatures.

Q7: What is the packaging quantity?

A: Regular packaging: 10 boxes per carton, 50 pieces per box (total 500 pieces per carton). Custom packaging (e.g., smaller quantities, private labels) is available upon request.

Q8: Does the manufacturer offer OEM/ODM services?

A: Yes. The manufacturer has extensive experience in OEM/ODM projects, including custom packaging, logo embossing, and design modifications. They can also adapt the product to meet regional standards (e.g., FCC, CE).

References

1. YD/T 926.1-2009: General Specification for Telecommunication Cabling Systems – Part 1: General Requirements. Ministry of Industry and Information Technology of the People’s Republic of China, 2009.
2. YD/T 926.3-2009: Telecommunication Cabling Systems – Part 3: Components – Keystone Jacks. Ministry of Industry and Information Technology of the People’s Republic of China, 2009.
3. TIA/EIA-568-C.2: Commercial Building Telecommunications Cabling Standard – Part 2: Balanced Twisted-Pair Cabling. Telecommunications Industry Association, 2009.
4. ISO/IEC 11801:2017: Information Technology – Generic Cabling for Customer Premises. International Organization for Standardization, 2017.
5. RoHS Directive 2011/65/EU: Restriction of Hazardous Substances in Electrical and Electronic Equipment. European Parliament and Council, 2011.
6. UL 94: Standard for Safety of Flammability of Plastic Materials for Parts in Devices and Appliances. Underwriters Laboratories, 2021.

Conclusion

The SMT-1041T8C6A-FTP 180 Degree Shielded CAT6A Toolless Keystone Jack represents a significant advancement in structured cabling components. Its innovative design—including toolless termination, 360° shielding, and high-low dislocation pins—addresses the key pain points of traditional keystone jacks, delivering faster installation, superior performance, and longer lifespan. Backed by the manufacturer’s advanced manufacturing processes and rigorous quality control, this product is a reliable choice for data centers, office buildings, smart homes, and industrial environments. As bandwidth demands continue to grow, the SMT-1041T8C6A-FTP stands ready to support the next generation of high-speed communication networks.
