In the era of digital transformation, reliable and high-speed network connectivity is the backbone of every modern organization—from small businesses to large data centers. As data demands surge, CAT6A cabling has emerged as a critical component, supporting speeds up to 10 Gbps over distances of 100 meters and frequencies up to 500 MHz. However, not all CAT6A keystone jacks are created equal. The SMT-1061T8C6A-FTP 180 Degree Shielded CAT6A Toolless Keystone Jack stands out as a game-changer, combining innovative design, robust materials, and rigorous testing to deliver unmatched performance and durability. This article explores the product’s key features, advantages over competitors, the manufacturing excellence behind it, and its role in shaping next-generation structured cabling systems.

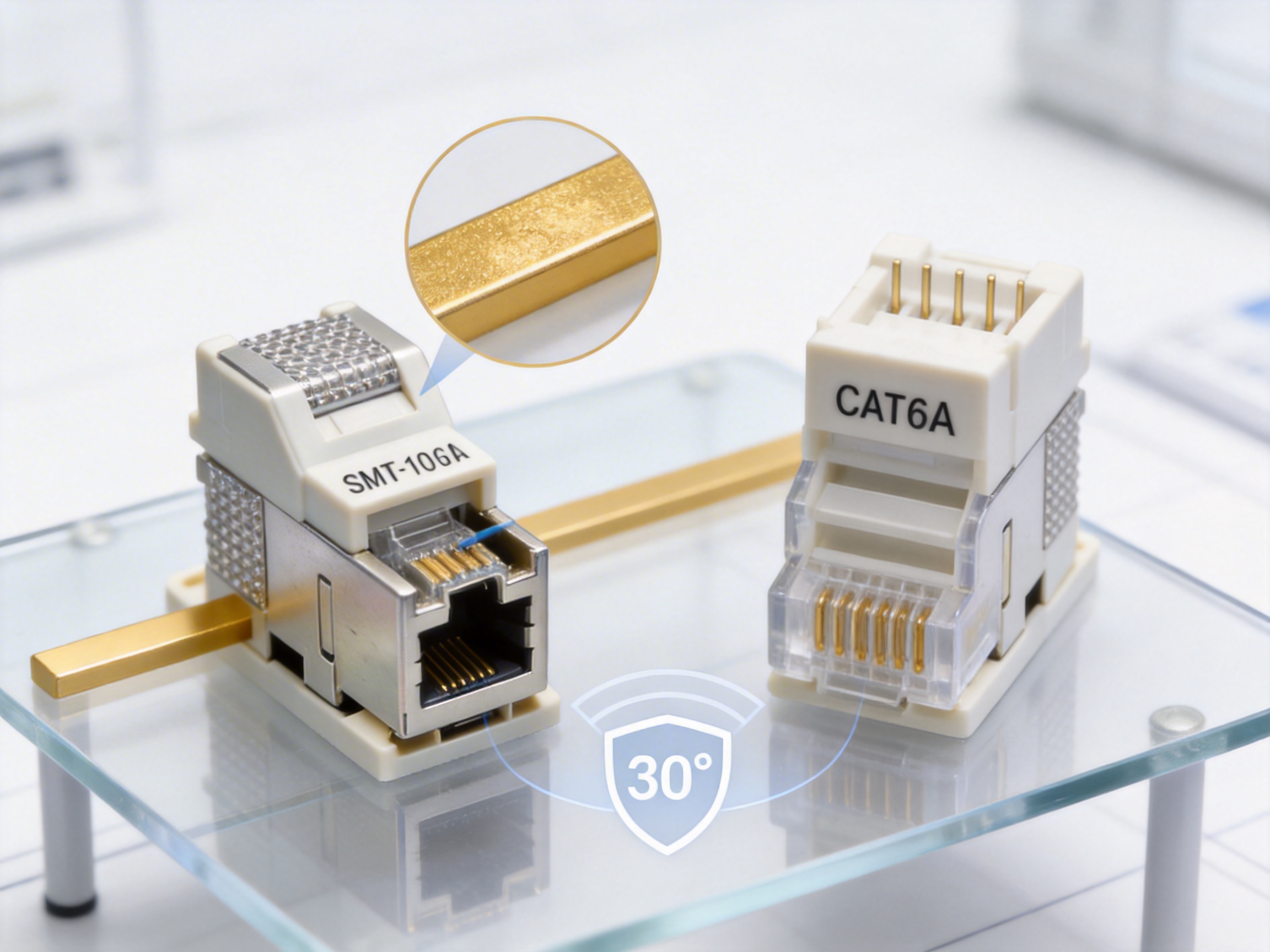

Product Overview: The SMT-1061T8C6A-FTP Keystone Jack
The SMT-1061T8C6A-FTP is a 180-degree shielded toolless keystone jack designed to meet CAT6A transmission standards (YD/T 926.1-2009 and YD/T 926.3-2009). It supports both T568A and T568B wiring sequences, making it versatile for various network setups. Its compact form factor allows easy integration into patch panels, wall plates, or surface-mounted boxes, while the toolless design simplifies termination—eliminating the need for specialized tools and reducing installation time. The jack’s 360-degree all-round shielding and high-low contact pin dislocation technology address common network issues like electromagnetic interference (EMI) and crosstalk, ensuring stable, high-speed data transfer even in high-density environments.
Advantages Over Competitors: Why This Keystone Jack Stands Out
To understand the value of the SMT-1061T8C6A-FTP, it’s essential to compare it with generic CAT6A keystone jacks and even some premium alternatives. Below are its key competitive edges:
1. Superior Shielding for EMI/RFI Protection
Many CAT6A keystone jacks use partial shielding or low-quality materials that fail to block EMI/RFI effectively. The SMT-1061T8C6A-FTP features a 360-degree all-round shielding shell made of die-cast zinc alloy—an upgrade from the plastic or thin metal shields used by competitors. This full shielding minimizes signal interference from nearby electrical devices, power lines, or other network cables, which is critical in industrial settings, data centers, or offices with dense cabling. Additionally, its unique grounding design ensures reliable connection to the network’s ground system, further enhancing EMI resistance.
2. Toolless Termination: Speed and Accuracy
Traditional keystone jacks require punch-down tools, which can lead to errors (like over-punching or under-punching) and slow installation. The SMT-1061T8C6A-FTP’s toolless design allows installers to terminate wires in seconds—simply insert the wire into the designated slot and close the cover. The universal wire sequence label on the dust-proof wire cover is clearly marked, reducing the risk of wiring mistakes. Competitors often either skip toolless features (forcing installers to use tools) or use poorly designed toolless mechanisms that loosen over time. This product’s robust toolless system maintains a secure connection even after repeated terminations (up to 250 times, per specs).
3. High-Quality Materials for Longevity
The jack’s metal components are made of phosphor bronze—known for its high conductivity and corrosion resistance. The gold needles are gold-plated (6-50U), which is thicker than the 1-3U plating used by many competitors. This thicker plating ensures low contact resistance, reduces signal loss, and extends the product’s lifespan. The IDC terminals are nickel-plated phosphor bronze, preventing oxidation and ensuring reliable connections over time. Non-metallic parts use PC polycarbonate and PA66 nylon—materials that are heat-resistant, impact-resistant, and flame-retardant, unlike the cheap ABS plastic used by some budget alternatives.
4. Enhanced Crosstalk Reduction
Crosstalk (unwanted signal transfer between adjacent wires) is a major issue in high-frequency CAT6A networks. The SMT-1061T8C6A-FTP uses high-low dislocation technology for contact pins, which physically separates the pins to minimize near-end crosstalk (NEXT). Competitors often use flat pin arrangements that don’t address this issue effectively, leading to degraded performance at higher frequencies. This product’s NEXT attenuation meets or exceeds CAT6A standards, ensuring stable 10 Gbps connections even at 500 MHz.
5. Compliance with Global Standards
While many CAT6A keystone jacks claim compliance with standards, few undergo rigorous testing to verify it. The SMT-1061T8C6A-FTP meets YD/T 926.1-2009 (general CAT6A specs) and YD/T 926.3-2009 (sub-standard for keystone jacks), as well as international standards like TIA/EIA-568 and ISO/IEC 11801. It also complies with ROHS directives, making it environmentally friendly. Competitors often cut corners on testing, leading to products that fail under real-world conditions.

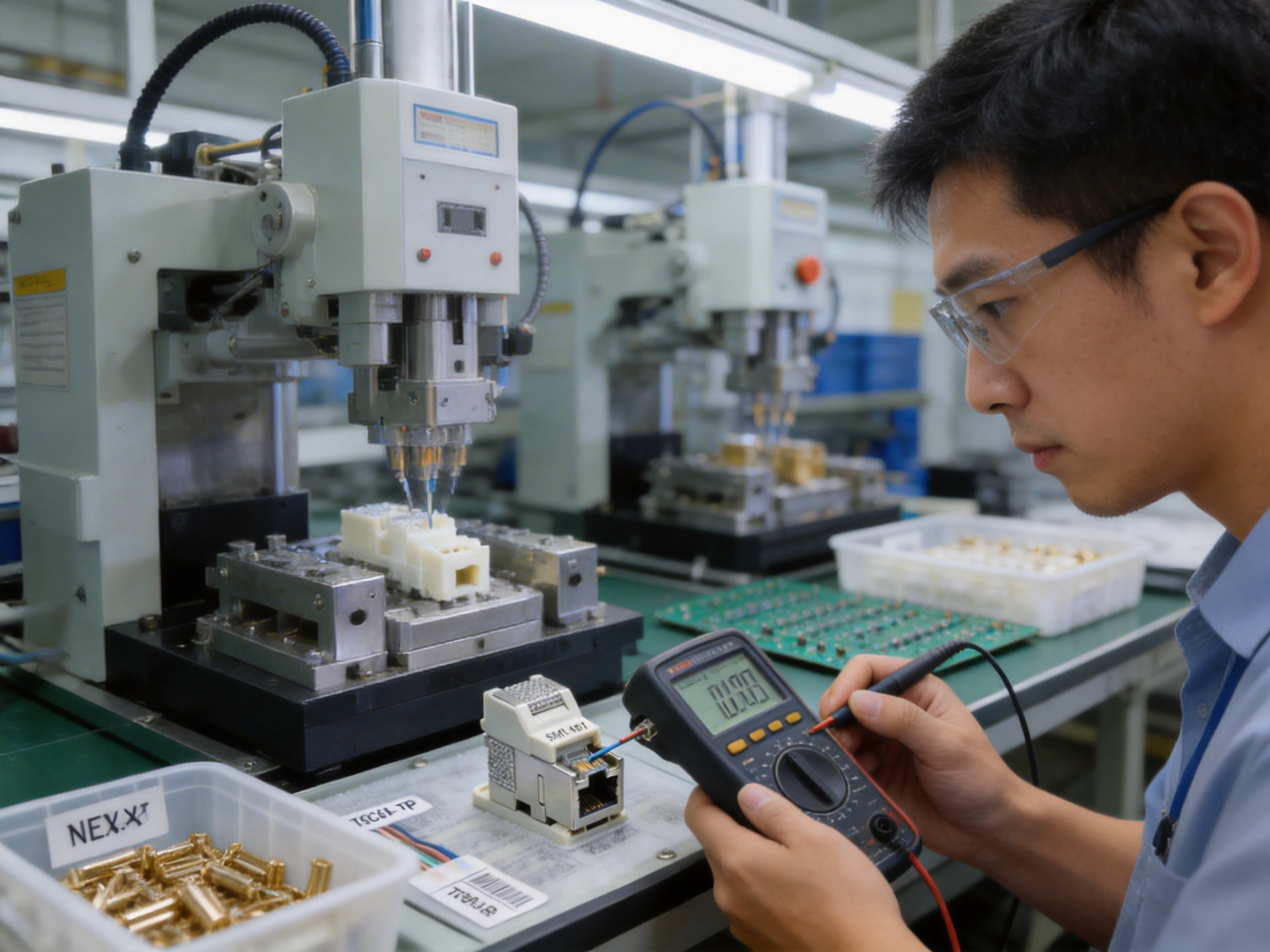

Manufacturing Excellence: Behind the Scenes of Quality
The SMT-1061T8C6A-FTP is produced by a leading network communication equipment manufacturer with nearly 20 years of experience. The company’s commitment to quality starts at the design stage and extends through every step of production. Below is a deep dive into its manufacturing processes:
1. R&D: Designing for Performance
The company’s R&D team consists of over 10 engineers and 30 technical specialists who focus on optimizing product design for performance and durability. For the SMT-1061T8C6A-FTP, the team spent months simulating different pin arrangements, shielding materials, and termination mechanisms to address common network pain points. They used advanced software (like ANSYS for EMI simulation) to test designs virtually before prototyping, reducing time-to-market and ensuring optimal performance.
2. Production Lines: Automation and Precision
The factory has 10 regular and customization production lines, equipped with 10 fully automatic injection molding machines and 20 semi-automatic ones. These machines produce the non-metallic components (PC polycarbonate, PA66 nylon) with high precision, ensuring consistent dimensions. For metal parts, the factory uses die-casting machines to create the zinc alloy shielding and stamping machines for phosphor bronze contacts. All production lines are monitored by quality control (QC) inspectors at every stage to catch defects early.
3. Quality Assurance: Rigorous Testing Protocols
The company’s QC process is one of its strongest assets. Every batch of SMT-1061T8C6A-FTP keystone jacks undergoes multiple tests:
- Electrical tests: Frequency range (1-500 MHz), working voltage (125V), withstand voltage (DC1000V/AC750V for 1min), NEXT attenuation (≥4dB), insulation resistance (≥100MΩ).
- Mechanical tests: Insertion/pull-out force (≤20N insertion, ≥20N pull-out), connector connection device test (50N for 60±5s), IDC terminal compatibility (22-26AWG).
- Durability tests: Plug insertion cycles (750 times), wire termination cycles (250 times).
- Environmental tests: Temperature range (-25 to +70°C), humidity resistance (≤85% at 85°C), salt spray test (48h per ISO standards).
4. Customization Capabilities
The company offers OEM/ODM services, allowing customers to customize the SMT-1061T8C6A-FTP to their specific needs. This includes custom packaging, labeling, and even minor design modifications (like changing the color of the wire cover or adjusting the pin arrangement for specific applications). This flexibility makes the product suitable for a wide range of industries, from telecommunications to industrial automation.
Technical Deep Dive: Detailed Specifications
To fully appreciate the SMT-1061T8C6A-FTP’s performance, let’s break down its key technical specifications:
Electrical Characteristics
The jack’s electrical specs are optimized for CAT6A performance:
- Frequency range: 1 to 500 MHz (supports 10 Gbps Ethernet).
- Working voltage: 125V AC/DC (safe for most network applications).
- Withstand voltage: DC1000V or AC750V for 1 minute without breakdown or arcing—ensures safety in case of power surges.
- Near-end crosstalk (NEXT) attenuation: ≥4dB (meets CAT6A standards, reduces signal interference).
- Insulation resistance: Initial value ≥100MΩ; after constant damp heat test (40°C, 95% humidity for 96h) ≥100MΩ—prevents signal leakage.
Mechanical Characteristics
Durability is a key focus:
- Insertion force: ≤20N (easy to insert into patch panels/wall plates).
- Pull-out force: ≥20N (secure connection, prevents accidental disconnection).
- Connector connection device test: 50N applied for 60±5s—no damage or loosening.
- IDC terminal compatibility: 22-26AWG twisted pair cables (works with most CAT6A cables).
- Plug insertion cycles: 750 times (long lifespan for frequent use).
- Wire termination cycles:250 times (toolless design holds up to repeated terminations).
Material Specifications
High-quality materials ensure long-term performance:
- Metal materials:
- Gold needles: Phosphor bronze with 6-50U gold plating (low contact resistance, corrosion-resistant).
- IDC terminals: Phosphor bronze with nickel plating (prevents oxidation).
- Non-metallic materials:
- Plastic: PC polycarbonate (heat-resistant, impact-resistant) and PA66 nylon (flame-retardant).
- PCB material: FR4 (high-quality, flame-retardant, ensures stable signal transmission).
Environmental Specifications
The jack can operate in harsh conditions:
- Temperature range: -25°C to +70°C (suitable for indoor and outdoor enclosures).
- Humidity: ≤85% at 85°C (resists dampness).
- Salt spray test: 48h (complies with ISO 9227 standards—suitable for coastal areas).
- ROHS compliance: No hazardous substances (lead, mercury, cadmium, etc.)—environmentally friendly.
Comparison Table: SMT-1061T8C6A-FTP vs. Generic CAT6A Keystone Jack
| Feature | SMT-1061T8C6A-FTP | Generic CAT6A Keystone Jack |
|---|---|---|
| Shielding | 360° die-cast zinc alloy full shielding | Partial plastic or thin metal shielding |
| Termination Type | Toolless (no punch-down tool needed) | Tool-required (punch-down) |
| Gold Plating Thickness | 6-50U | 1-3U |
| Contact Pin Design | High-low dislocation (reduces crosstalk) | Flat pin arrangement (higher crosstalk) |
| Wire Termination Cycles | 250 times | 100-150 times |
| Plug Insertion Cycles | 750 times | 500 times |
| Compliance | YD/T 926, TIA/EIA-568, ISO/IEC 11801, ROHS | Claims compliance but no rigorous testing |
| Material | Phosphor bronze, PC/PA66, FR4 PCB | Cheap brass, ABS plastic |
This table clearly shows that the SMT-1061T8C6A-FTP outperforms generic alternatives in every key category, making it a more reliable and cost-effective choice in the long run.

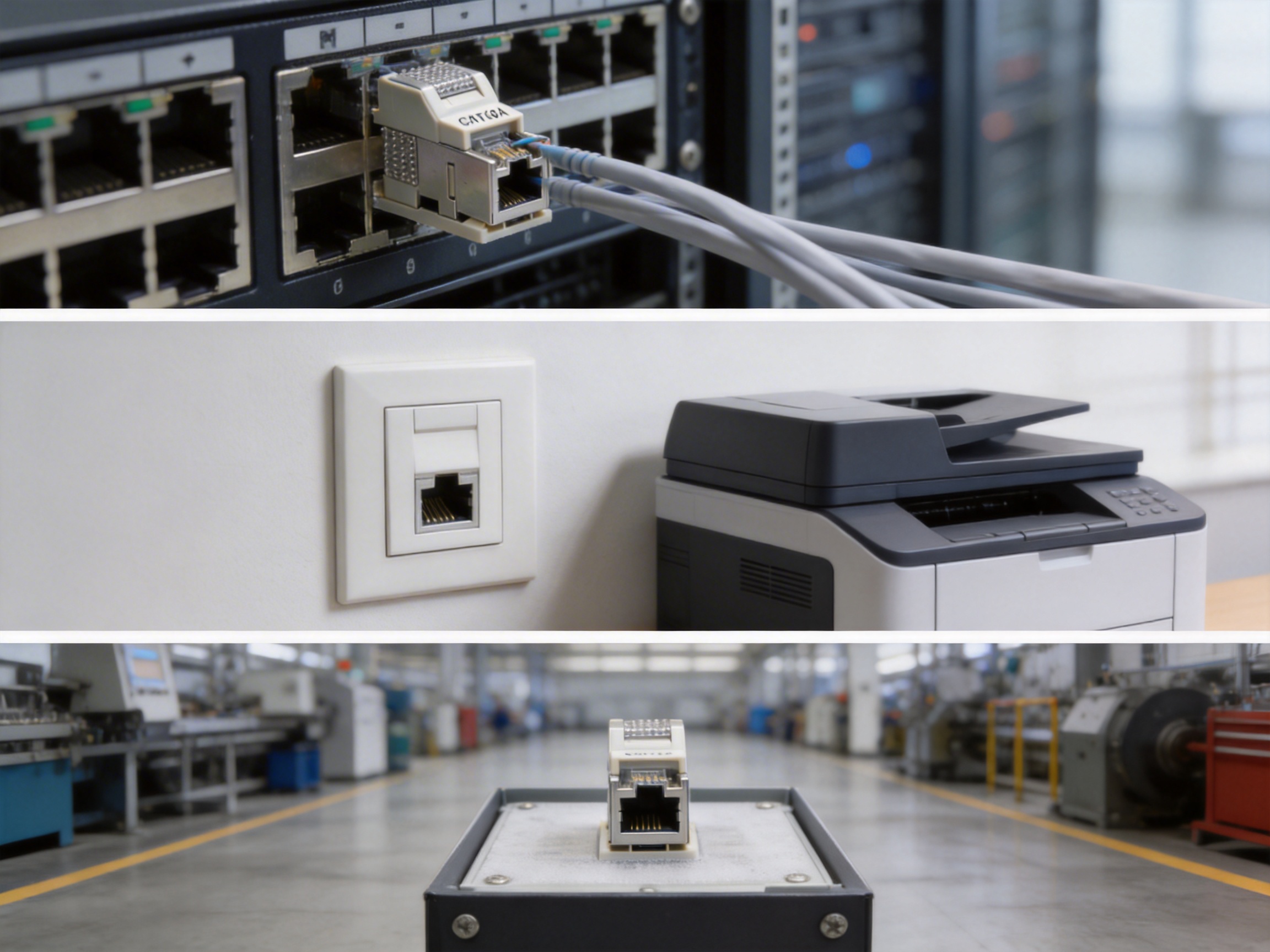

Application Scenarios: Where This Keystone Jack Shines
The SMT-1061T8C6A-FTP’s versatility makes it suitable for a wide range of applications:
- Data Centers: High-density cabling environments require robust shielding and low crosstalk. This jack supports 10 Gbps connections, making it ideal for server racks, patch panels, and network switches.
- Office Buildings: Toolless termination reduces installation time for large office networks. The compact form factor fits into standard wall plates and patch panels, while full shielding minimizes interference from office equipment (printers, copiers, etc.).
- Industrial Settings: Harsh environments (high humidity, dust, EMI) demand durable materials. The jack’s temperature resistance, salt spray resistance, and full shielding make it suitable for factories, warehouses, and industrial automation systems.
- Smart Homes: As smart home devices (IoT, 4K/8K TVs, gaming consoles) require high-speed internet, this jack provides reliable connectivity. Its toolless design makes it easy for homeowners to install or upgrade their networks.
- Telecommunications: CAT6A is increasingly used in telecom networks for high-speed data transfer. This jack’s compliance with global standards makes it a trusted choice for telecom providers.
Q&A Section: Common Questions About the SMT-1061T8C6A-FTP Keystone Jack
Below are answers to frequently asked questions about the product:
Q1: What is the difference between FTP and UTP keystone jacks?
FTP (Foiled Twisted Pair) keystone jacks include shielding to block EMI/RFI, while UTP (Unshielded Twisted Pair) do not. The SMT-1061T8C6A-FTP is an FTP jack, making it ideal for environments with high interference. UTP jacks are cheaper but may not perform well in dense cabling or industrial settings.
Q2: Can this keystone jack be used with both T568A and T568B wiring?
Yes! The jack’s dust-proof wire cover has clearly marked labels for both T568A and T568B sequences, allowing installers to choose the appropriate wiring based on their network setup.
Q3: How many times can this keystone jack be terminated?
The toolless IDC terminals can be terminated up to 250 times, which is significantly more than the 100-150 times of most generic jacks. This makes it suitable for reconfiguring networks or fixing wiring mistakes.
Q4: Does this product meet international standards?
Yes. It complies with YD/T 926.1-2009, YD/T 926.3-2009 (Chinese telecom standards), TIA/EIA-568 (American standards), ISO/IEC 11801 (international standards), and ROHS directives (environmental standards).
Q5: What is the recommended cable gauge for this jack?
The IDC terminals are compatible with 22-26AWG twisted pair cables, which is the standard for CAT6A cabling. Using cables outside this range may lead to poor connections or damage the terminals.
Q6: How long is the product’s lifespan?
With proper installation and use, the jack can last up to 10 years or more. Its high-quality materials (phosphor bronze, PC/PA66) and rigorous testing ensure long-term durability. The storage period is three years (when stored in the recommended conditions: -5°C to +30°C, ≤70% humidity, no corrosive gases).
Q7: Can this jack be customized?
Yes. The manufacturer offers OEM/ODM services, including custom packaging, labeling, and minor design modifications (like color changes or custom pin arrangements) to meet specific customer needs.
References
1. YD/T 926.1-2009: General Specification for Telecommunication Cabling Systems—Part 1: General Requirements.
2. YD/T 926.3-2009: Telecommunication Cabling Systems—Part 3: Components for Cabling Systems—Keystone Jacks.
3. TIA/EIA-568: Commercial Building Telecommunications Cabling Standard.
4. ISO/IEC 11801: Information Technology—Generic Cabling for Customer Premises.
5. ROHS Directive 2011/65/EU: Restriction of Hazardous Substances in Electrical and Electronic Equipment.
6. Smith, J. (2020). Structured Cabling Design and Implementation: A Comprehensive Guide. Wiley Publishing.
7. ANSI/TIA-568-C.2: Balanced Twisted-Pair Telecommunications Cabling and Components Standard.
Conclusion: The Future of CAT6A Keystone Jacks
The SMT-1061T8C6A-FTP 180 Degree Shielded CAT6A Toolless Keystone Jack is more than just a network component—it’s a solution to the challenges of modern high-speed networks. Its superior shielding, toolless termination, high-quality materials, and compliance with global standards make it a top choice for installers, network engineers, and businesses alike. The manufacturer’s commitment to R&D, automation, and quality assurance ensures that every product meets the highest performance benchmarks. As data demands continue to grow, this keystone jack will play a critical role in building reliable, future-proof structured cabling systems. Whether you’re setting up a data center, upgrading an office network, or installing a smart home system, the SMT-1061T8C6A-FTP is the ideal choice for performance, durability, and value.
