High-Performance CAT6 Keystone Jack: Advancing Structured Cabling Efficiency and Reliability

Structured cabling systems form the backbone of modern network infrastructure, enabling seamless data transmission across residential, commercial, and industrial spaces. At the heart of these systems are keystone jacks—critical components that connect horizontal wiring to work area outlets, ensuring reliable signal transfer. Among the latest advancements in this space is the SMT-1055D8C6 180 Degree CAT6 Keystone Jack, a component designed to meet and exceed industry standards for performance, durability, and versatility. This article explores the key features of this keystone jack, its advantages over competing products, the manufacturing excellence behind it, and its real-world applications in structured cabling.

Product Overview

The SMT-1055D8C6 180 Degree CAT6 Keystone Jack is engineered to support Category 6 (CAT6) transmission standards, aligning with both T568A and T568B wiring sequences—two widely adopted standards for network cabling. Its compact form factor makes it suitable for a variety of installation environments, including wall plates, patch panels, and modular distribution frames. The module features clearly marked universal wire sequence labels on the IDC (Insulation Displacement Contact) terminals, enabling installers to achieve accurate and fast termination without specialized tools.

Core design goals of this keystone jack include backward compatibility, space optimization, and signal integrity. Unlike some CAT6 jacks that only support CAT6 cables, this model is backward compatible with CAT5e and lower-category systems, making it an ideal choice for mixed cabling environments where legacy infrastructure coexists with newer CAT6 setups. Its embedded design allows for easy integration into distribution frames, creating modular systems that are easy to expand or maintain.

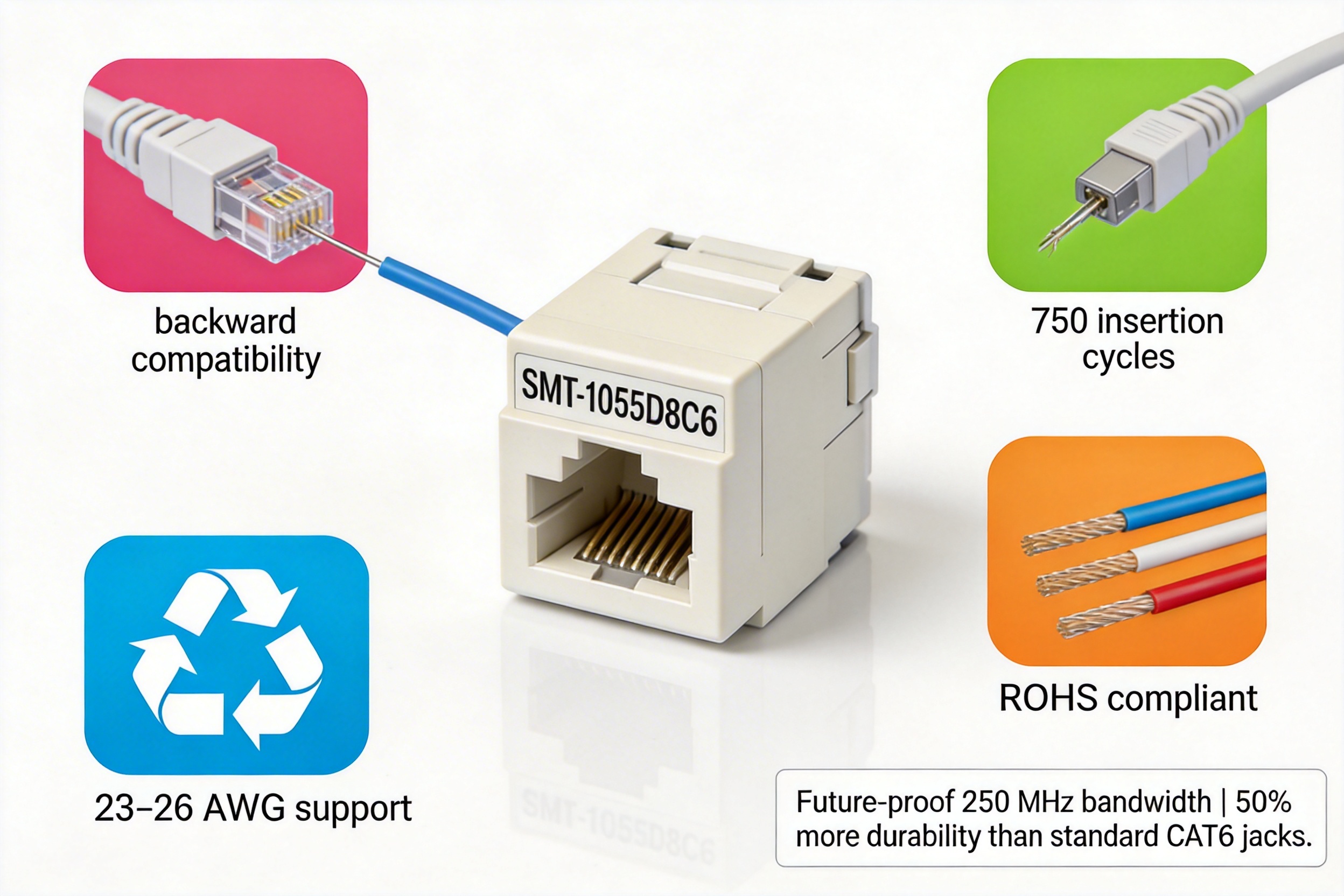

Key Advantages Over Competing CAT6 Keystone Jacks

To understand the value of the SMT-1055D8C6, it is essential to compare it with standard CAT6 keystone jacks available in the market. The following table highlights the critical differences and advantages:

Parameter	SMT-1055D8C6 CAT6 Keystone Jack	Standard CAT6 Keystone Jack	Advantage
Frequency Range	1–250 MHz	1–200 MHz	Wider bandwidth supports future high-speed applications (e.g., 10GBASE-T over short distances)
Insertion Force	≤ 20 N	≤ 25 N	Easier and faster installation, reducing installer fatigue
Pull-out Force	≥ 20 N	≥ 15 N	Enhanced retention of RJ45 connectors, minimizing signal loss due to loose connections
IDC Wire Gauge Support	23–26 AWG	24–26 AWG	Accommodates thicker 23 AWG cables, common in industrial and high-traffic environments
Gold Plating Thickness	6–50 μin	3–30 μin	Thicker gold plating reduces corrosion and ensures stable electrical contact over time
Durability (Insertion Cycles)	750 cycles	500 cycles	50% more insertion cycles, extending lifespan in high-usage settings
Contact Pin Technology	High-low dislocation	Standard alignment	Reduces near-end crosstalk (NEXT) by up to 10 dB, improving signal integrity
ROHS Compliance	Yes	Some models no	Environmentally friendly, free of hazardous substances (lead, mercury, etc.)
Embedded Design	Yes	No	Compatible with modular distribution frames, optimizing space and simplifying maintenance

Beyond the table, two key advantages stand out: signal integrity and backward compatibility. The high-low dislocation contact pin technology is a game-changer for signal quality. Near-end crosstalk (NEXT) is a common issue in cabling systems where signals from adjacent wires interfere with each other. By staggering the contact pins (some higher, some lower), this jack reduces the electromagnetic interference between adjacent pairs, resulting in lower NEXT values and clearer signal transmission. This is particularly important for applications that require high bandwidth, such as video conferencing, cloud computing, and 4K/8K video streaming.

Backward compatibility is another critical advantage. Many businesses and residential buildings still use CAT5e or even CAT5 cabling. Upgrading to CAT6 without replacing the entire infrastructure can be costly and time-consuming. The SMT-1055D8C6 allows users to integrate CAT6 jacks into existing CAT5e systems, enabling a gradual upgrade path. This not only saves money but also minimizes downtime during installation.

Advanced Manufacturing Processes & Company Strengths

The SMT-1055D8C6 is manufactured by a leading network communication equipment company with nearly 20 years of experience in the industry. The company’s strength lies in its integrated approach to design, development, production, and service—ensuring that every product meets the highest standards of quality and performance.

At the core of the company’s success is its robust research and development (R&D) team. Comprising over 10 engineers and 30 full-time technical personnel, the team focuses on three key areas: improving product quality, enhancing performance, and developing new features to meet evolving market needs. The R&D process starts with understanding customer requirements, followed by prototyping, testing, and refinement. This ensures that quality is built into the product from the design stage, rather than being an afterthought.

Production capacity is another key strength. The company operates 10 regular and customization production lines, supported by 10 fully automatic injection molding machines, 20 semi-automatic injection molding machines, and 8 automatic assembly machines. This setup allows for a stable annual output of over 9 million keystone jacks and other network components—meeting the demands of both domestic and international clients. The use of automated machinery ensures consistency in production, reducing human error and ensuring that every product meets the same high standards.

Quality control is a top priority for the company. Every product undergoes rigorous testing at multiple stages of production: from raw material inspection to final assembly. Key tests include:

• Electrical performance tests: Frequency range, working voltage, withstand voltage, and insulation resistance are measured to ensure compliance with CAT6 standards.
• Mechanical tests: Insertion force, pull-out force, and IDC terminal clamping strength are tested to ensure durability.
• Environmental tests: Salt spray test (48 hours), constant damp heat test, and temperature/humidity cycling to ensure performance in harsh conditions.
• Compliance tests: Verification of ROHS standards and adherence to industry standards (YD/T 926.1-2009, YD/T 926.3-2009, TIA/EIA-568-C.2).

The company also offers OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) services, allowing clients to customize products according to their specific needs. This includes custom packaging, logo printing, and even product modifications to meet unique requirements. This flexibility has made the company a preferred partner for clients across Europe, Australia, Africa, the Middle East, and Southeast Asia.

Technical Specifications Deep Dive

To fully appreciate the SMT-1055D8C6’s performance, it is essential to examine its technical specifications in detail. These specs are designed to meet and exceed the requirements of CAT6 cabling systems, ensuring reliable operation in a wide range of environments.

Electrical Characteristics

The electrical performance of a keystone jack directly impacts signal integrity. The SMT-1055D8C6’s electrical specs are as follows:

• Frequency Range: 1–250 MHz. This exceeds the CAT6 standard of 200 MHz, making it suitable for future high-speed applications like 10GBASE-T (which requires up to 250 MHz bandwidth for short distances).
• Working Voltage: 125 V. This is sufficient for most low-voltage network applications.
• Withstand Voltage: DC 1000 V (AC 750 V) for 1 minute without breakdown or arcing. This ensures safety in case of voltage surges.
• Insulation Resistance: Initial value ≥ 200 MΩ; after constant damp heat test ≥ 100 MΩ. High insulation resistance prevents signal leakage and ensures stable performance.

Mechanical Properties

Mechanical durability is critical for keystone jacks, which are often subjected to repeated insertions and terminations. The product’s mechanical specs include:

• Insertion Force: ≤ 20 N. This makes it easy to insert RJ45 connectors without excessive force.
• Pull-out Force: ≥ 20 N. This ensures that connectors stay securely in place, even in high-traffic areas.
• IDC Terminal Compatibility: 23–26 AWG twisted pair cables. This flexibility allows for use with a wide range of cable types.

Durability

The product is designed to withstand heavy usage over time:

• Plug and Socket Insertions: 750 cycles. This is 50% more than the standard CAT6 jack’s 500 cycles.
• Wire Terminations: 250 cycles. This ensures that the IDC terminals can be re-terminated multiple times without losing performance.

Material and Surface Treatment

The choice of materials directly impacts the product’s performance and lifespan. The SMT-1055D8C6 uses high-quality materials:

• Metal Materials:
  • Gold Needles: Phosphor bronze with 6–50 μin gold plating. Phosphor bronze is known for its high conductivity and corrosion resistance, while the thick gold plating further enhances these properties.
  • IDC Terminals: Phosphor bronze with nickel plating. Nickel plating provides excellent corrosion resistance and durability for the IDC terminals, which are exposed to the environment during installation.
• Non-Metal Materials:
  • Plastic: PC (Polycarbonate). PC is a strong, heat-resistant plastic that can withstand harsh environmental conditions.
  • PCB Material: FR4. FR4 is a flame-retardant epoxy resin used in printed circuit boards, ensuring high reliability and resistance to heat and moisture.

Environmental Performance

The product is designed to operate in a wide range of environmental conditions:

• Temperature Range: -25°C to +70°C. This makes it suitable for both indoor and outdoor installations (with proper enclosures).
• Humidity: ≤85% (at 85°C ±3°C). This ensures performance in high-humidity environments like data centers or industrial facilities.

Salt spray test compliance is another key environmental feature. The product passes a 48-hour salt spray test, which simulates corrosive environments (e.g., coastal areas). The test parameters include:

• Salt solution pH: 6.5–7.2 (at 35°C ±2°C).
• Salt concentration: 5% ±0.1% (mass percentage).
• Continuous atomization for 48 hours.

Real-World Applications

The SMT-1055D8C6 CAT6 keystone jack finds applications in a variety of sectors, thanks to its versatility and performance. Some key applications include:

Structured Cabling Systems

Structured cabling systems are the backbone of modern office buildings, data centers, and residential complexes. The SMT-1055D8C6 is ideal for these systems because it supports CAT6 bandwidth, enabling high-speed data transmission (up to 1 Gbps for 100 meters, and 10 Gbps for shorter distances). Its backward compatibility allows for easy integration into existing systems, making it a cost-effective choice for upgrades.

Network Communication

In network communication, reliability is critical. The SMT-1055D8C6’s high signal integrity and durability make it suitable for use in routers, switches, and other network equipment. It ensures that data is transmitted without loss or interference, even in high-traffic environments.

Smart Home Automation

Smart home systems rely on stable network connections to control devices like thermostats, security cameras, and entertainment systems. The SMT-1055D8C6’s compact form factor and easy installation make it ideal for smart home setups. Its wide temperature range ensures that it can operate in various parts of the home, including attics and basements.

Industrial Automation Equipment

Industrial environments are often harsh, with high temperatures, humidity, and vibration. The SMT-1055D8C6’s environmental resistance (salt spray, temperature, humidity) and durable materials make it suitable for use in industrial automation equipment. It can withstand the rigors of factory floors and other industrial settings.

Q&A Section

To address common questions about the SMT-1055D8C6 CAT6 keystone jack, we have compiled the following Q&A:

Product & Performance

Q1: What is the maximum bandwidth supported by this keystone jack?

A1: The SMT-1055D8C6 supports a frequency range of 1–250 MHz, which exceeds the CAT6 standard of 200 MHz. This enables future-proofing for high-speed applications like 10GBASE-T.

Q2: Is this jack backward compatible with CAT5e cables?

A2: Yes, it is fully backward compatible with CAT5e and lower-category cables. This allows for gradual upgrades without replacing the entire cabling infrastructure.

Q3: How does the high-low contact pin technology improve signal integrity?

A3: The high-low dislocation of contact pins reduces near-end crosstalk (NEXT) by staggering the electromagnetic fields of adjacent wire pairs. This minimizes interference and improves signal clarity.

Q4: What is the durability of the jack in terms of insertion cycles?

A4: The jack can withstand up to 750 insertion cycles, which is 50% more than the standard CAT6 jack’s 500 cycles. This extends its lifespan in high-usage settings.

Installation & Compatibility

Q5: Can this jack be installed on a distribution frame?

A5: Yes, its embedded design allows for easy installation on distribution frames, creating modular systems that are easy to expand or maintain.

Q6: What wire gauges are supported by the IDC terminals?

A6: The IDC terminals support 23–26 AWG twisted pair cables, which is more flexible than standard CAT6 jacks that only support 24–26 AWG.

Q7: Does the jack support both T568A and T568B wiring sequences?

A7: Yes, it is compatible with both T568A and T568B standards, making it suitable for various installation requirements.

Manufacturing & Quality

Q8: Does the product meet ROHS standards?

A8: Yes, the SMT-1055D8C6 complies with ROHS standards, meaning it is free of hazardous substances like lead, mercury, and cadmium.

Q9: What quality control tests does the product undergo?

A9: The product undergoes electrical, mechanical, environmental, and compliance tests. Key tests include frequency range testing, insertion/pull-out force testing, salt spray testing, and ROHS compliance verification.

Q10: Can the company provide OEM/ODM services?

A10: Yes, the company offers OEM and ODM services, including custom packaging, logo printing, and product modifications to meet client-specific needs.

Packaging & Storage

Q11: What is the regular packaging quantity per carton?

A11: Regular packaging is 10 boxes per carton, 50 pieces per box, totaling 500 pieces per carton. Custom packaging is also available.

Q12: How long is the product’s storage period?

A12: The packaged product has a storage period of three years when stored in a warehouse with temperature -5°C to +30°C, relative humidity ≤70%, and no corrosive gases.

References

1. Telecommunication Industry Standard of China. YD/T 926.1-2009: General Specification for Telecommunication Cabling Systems. Beijing: Ministry of Industry and Information Technology, 2009.

2. Telecommunication Industry Standard of China. YD/T 926.3-2009: Part 3: Components for Telecommunication Cabling Systems. Beijing: Ministry of Industry and Information Technology, 2009.

3. Telecommunications Industry Association (TIA). TIA/EIA-568-C.2: Commercial Building Telecommunications Cabling Standard. Arlington, VA: TIA, 2009.

4. European Union. Directive 2011/65/EU: Restriction of Hazardous Substances in Electrical and Electronic Equipment (RoHS). Brussels: European Commission, 2011.

5. International Electrotechnical Commission (IEC). IEC 60603-7: Connectors for Telecommunications and Data Processing. Geneva: IEC, 2015.

6. Telecommunications Industry Association (TIA). Structured Cabling Design Guide. Arlington, VA: TIA, 2018.

Conclusion

The SMT-1055D8C6 180 Degree CAT6 Keystone Jack represents a significant advancement in structured cabling components. Its wide frequency range, high signal integrity, backward compatibility, and durable design make it a superior choice over standard CAT6 jacks. Backed by a company with nearly 20 years of experience, advanced manufacturing processes, and rigorous quality control, this product is designed to meet the needs of modern network infrastructure.

Whether used in office buildings, data centers, smart homes, or industrial facilities, the SMT-1055D8C6 delivers reliable performance and long-term value. Its OEM/ODM capabilities and global reach further enhance its appeal to clients seeking customized solutions. As network demands continue to grow, this keystone jack stands out as a future-proof choice for high-performance structured cabling systems.
