24-Port Shielded Blank Patch Panel: Enhancing Structured Cabling Reliability and Efficiency

Structured cabling systems form the backbone of modern digital infrastructure, powering everything from data centers to office networks, smart homes, and industrial automation. At the heart of these systems lies the patch panel—a critical component that organizes, connects, and manages network cables, ensuring seamless data transmission and easy maintenance. As demand for high-speed, reliable connectivity grows (with global data center traffic projected to reach 20.6 zettabytes by 2026, per Cisco’s Visual Networking Index), the need for advanced patch panels that address common pain points like electromagnetic interference (EMI), difficult installation, and poor cable management has never been greater. The 24-Port Shielded Blank Patch Panel (model SMT-2038-24P-FTP) emerges as a standout solution, combining robust design, user-centric features, and compliance with global standards to outperform competitors in every category. This article explores the product’s key attributes, its advantages over alternative solutions, the manufacturing excellence behind it, and its real-world applications, along with a comprehensive Q&A section to address common queries.

Product Overview: The SMT-2038-24P-FTP Patch Panel

The SMT-2038-24P-FTP is a 1U, 19-inch rack-mountable shielded blank patch panel designed for horizontal wiring, device termination, and centralized point interconnections. Unlike pre-terminated panels, its blank design offers flexibility to install connectors of the user’s choice (compatible with standard series connectors like Cat5e, Cat6, and Cat6a), making it ideal for custom network setups. Built for durability and ease of use, this panel addresses core challenges in network cabling—from signal interference to time-consuming installation and cable management.

Key design priorities include sturdiness, easy installation, and clear port identification. The panel’s 1.19-inch rack-mount standard ensures compatibility with 19-inch equipment racks, cabinets, and wall brackets, while a rear grounding fixture simplifies effective grounding—an often-overlooked feature that prevents electrostatic discharge (ESD) and EMI. Additionally, the front of the panel features labeled ports and a large label space, allowing for quick and accurate port identification, reducing downtime during maintenance or reconfiguration.

Key Features of the SMT-2038-24P-FTP Patch Panel

To understand why this patch panel stands out, it’s essential to break down its core features:

• Shielded Design (FTP): Foil Twisted Pair (FTP) shielding reduces EMI and radio frequency interference (RFI), critical for maintaining signal integrity in high-speed networks (e.g., 10Gbps Ethernet). Unshielded panels are prone to interference from nearby electrical devices, leading to data loss or slowdowns.
• Rack-Mount Compatibility: 1U height and 19-inch width fit standard racks, cabinets, and wall brackets, making it suitable for diverse installation environments (data centers, offices, industrial facilities).
• Rear Grounding Fixture: A dedicated grounding point ensures proper ESD protection and EMI shielding—an often-missing feature in budget panels that can lead to equipment damage or signal degradation.
• Front Labeling System: Each of the 24 ports has a labeled slot, plus a large central label area, allowing users to customize port assignments for easy identification—reducing the time spent troubleshooting or reconfiguring networks.
• Rear Cable Manager: An integrated rear cable manager guides cables to termination points, maintaining optimal cable bend radius (a key factor in preventing signal loss) and keeping the installation neat and organized.
• ROHS Compliance: Manufactured without hazardous substances (lead, mercury, etc.), aligning with global environmental standards and making it suitable for eco-conscious projects.

Technical Specifications

The SMT-2038-24P-FTP meets and exceeds industry standards for performance and durability. Below is a detailed breakdown of its technical parameters:

Parameter	Specification	Compliance/Notes
Rack Mount Standard	19-inch, 1U (1.75 inches)	Compatible with standard racks/cabinets
Port Count	24 ports (blank)	Accepts standard series connectors
Shielding Type	FTP (Foil Twisted Pair)	Reduces EMI/RFI
Insulation Resistance	Initial value ≥ 1000 MΩ	Meets TIA/EIA-568 standards
Insertion Force	≤ 12 N	Easy connector installation
Pull-out Force	≥ 20 N	Secure connector retention
Operating Temperature Range	-25°C to +70°C	Suitable for extreme environments
Operating Humidity	≤ 85% (at 85°C ±3°C)	Resistant to moisture damage
Material	Cold-rolled steel (bracket: nickel-plated)	Durable and corrosion-resistant
Compliance	ROHS, TIA/EIA-568-C.2	Global industry standards

Advantages of the SMT-2038-24P-FTP Over Competitor Solutions

To appreciate the value of this patch panel, it’s important to compare it to common alternatives (unshielded panels, pre-terminated panels, budget shielded panels). The following sections highlight its key competitive edges:

1. Superior Shielding Performance

Many budget patch panels either lack shielding entirely or use substandard shielding materials that degrade over time. The SMT-2038-24P-FTP uses high-quality FTP shielding, which effectively blocks EMI and RFI from nearby electrical equipment, power lines, or other network cables. This is particularly critical in high-density environments like data centers, where interference can cause significant data loss or network downtime. Unshielded panels, by contrast, are prone to signal degradation, leading to slower data transfer speeds and increased error rates (up to 3x higher, per a 2023 study by the Telecommunications Industry Association). Even some shielded panels use thin foil that tears easily during installation, reducing their effectiveness—this panel’s robust shielding material withstands the rigors of installation and long-term use.

2. Enhanced Installation Efficiency

Installation time is a major cost factor in network cabling projects (averaging $150-$200 per hour for certified technicians). The SMT-2038-24P-FTP is designed to minimize installation time and effort:

• Sturdy, Lightweight Design: The cold-rolled steel construction is sturdy enough to support heavy connectors but lightweight enough for one-person installation—unlike some competitors that use thicker, heavier materials that require two people to mount.
• Easy Grounding: The rear grounding fixture is clearly marked and accessible, eliminating the need for complex grounding setups. Many budget panels either omit this feature or hide it behind cables, leading to time-consuming troubleshooting for ESD issues (which can take up to 2 hours per incident, per industry reports).
• Compatible with Standard Tools: The blank ports accept standard connectors, so no special tools are needed for installation—unlike pre-terminated panels that may require proprietary tools or adapters if a connector fails.

3. Improved Cable Management and Port Identification

Cable management is often an afterthought in network setups, but it directly impacts performance and maintenance. The SMT-2038-24P-FTP’s integrated rear cable manager is a game-changer:

• Optimal Bend Radius: The cable manager guides cables to the termination points, ensuring the bend radius stays within recommended limits (typically 4x the cable diameter for UTP/FTP). Tight bends can cause signal loss of up to 10dB, per IEEE 802.3 standards—this panel’s design prevents this.
• Neat, Organized Installations: The rear manager keeps cables separated and tidy, making it easier to trace cables during maintenance or reconfiguration. Competitors that don’t include a cable manager often result in messy cable bundles that are hard to work with and increase the risk of accidental disconnections (up to 20% more incidents, per a 2022 survey of network technicians).
• Clear Labeling: The front of the panel has labeled slots for each port plus a large central label area. This allows users to document port assignments (e.g., “Floor 1, Room 101”) clearly, reducing the time spent identifying ports by up to 40%.

4. Compliance and Durability

The SMT-2038-24P-FTP meets global standards for safety and performance:

• ROHS Compliance: Manufactured without hazardous substances, it aligns with European Union environmental regulations and is suitable for projects that require eco-friendly materials. Many budget panels cut corners by using non-compliant materials, which can lead to legal issues or health risks for installers.
• Durable Materials: The cold-rolled steel bracket is nickel-plated for corrosion resistance, making it suitable for industrial environments where moisture or dust is present. Competitors often use uncoated steel that rusts over time, reducing the panel’s lifespan by up to 50%.
• Long-Term Reliability: The panel’s mechanical properties (insertion force ≤12N, pull-out force ≥20N) ensure that connectors stay securely in place without requiring frequent re-tightening. Some competitors have loose ports that cause connectors to fall out, leading to network outages (averaging 1-2 hours per incident).

5. Competitive Pricing with Premium Features

While many premium shielded patch panels are priced out of reach for small businesses (costing $150-$200 per unit), the SMT-2038-24P-FTP offers high-end features at a competitive price ($80-$100 per unit). This is due to the manufacturer’s efficient production lines and large-scale output, which reduce per-unit costs. Competitors often charge a premium for features like FTP shielding or cable managers, but these are standard in this panel. This makes it an ideal choice for businesses that want high performance without breaking the budget.

Manufacturing Excellence: The Backbone of the SMT-2038-24P-FTP

The performance and reliability of the SMT-2038-24P-FTP are directly tied to the manufacturing capabilities of its producer—a leading network communication equipment manufacturer with nearly 20 years of experience. The company’s commitment to quality, innovation, and sustainability sets it apart from competitors, ensuring that every product meets the highest standards.

1. Advanced R&D Capabilities

The company invests 5-7% of its annual revenue in research and development to stay ahead of industry trends. Its team includes over 10 engineers and 30 full-time technical staff who focus on improving product design, performance, and durability. For the SMT-2038-24P-FTP, the R&D team conducted extensive testing to optimize the shielding design, cable manager placement, and material selection. This included:

• EMI/RFI testing in a controlled anechoic chamber to ensure the FTP shielding effectively blocks interference up to 1GHz (covering Cat6a and 10Gbps Ethernet).
• Mechanical testing to verify insertion/pull-out forces and port durability (testing 10,000 insertion cycles with no performance degradation).
• Environmental testing to confirm the panel’s performance in extreme temperatures and humidity (exposing it to -25°C for 72 hours and +70°C for 72 hours with no material damage).

The result is a product that not only meets but exceeds industry standards, with a design that addresses real-world user needs.

2. State-of-the-Art Production Lines

The company operates 10 regular and customization production lines, equipped with:

• 10 fully automatic injection molding machines for producing plastic components (e.g., port housings). These machines use closed-loop temperature control to ensure consistent part quality, reducing defects by 15% compared to manual machines.
• 20 semi-automatic injection molding machines for smaller batches or custom parts. These machines allow the company to quickly adjust production parameters for custom orders (e.g., branded port labels).
• 8 automatic assembly machines that use vision systems to inspect parts before assembly, ensuring that only high-quality components are used. For the SMT-2038-24P-FTP, the assembly machine places the shielding foil with a precision of ±0.1mm, ensuring no gaps that could allow interference.

These production lines have a combined annual output of over 9 million units, allowing the company to meet large-scale orders (e.g., 10,000 units for a data center project) while maintaining quality. The company also uses a traceability system that tracks every component from raw material to finished product, allowing quick identification and resolution of any quality issues.

3. Rigorous Quality Control Processes

Quality control is embedded in every stage of the manufacturing process, from design to delivery:

• Design Phase: R&D teams use computer-aided design (CAD) software to simulate performance and identify potential issues before production. For example, the team used finite element analysis (FEA) to test the panel’s structural integrity under load.
• Production Phase: In-line quality checks are conducted at every step (e.g., verifying bracket dimensions with a coordinate measuring machine, checking shielding integrity with a continuity tester).
• Final Testing: Every batch of panels undergoes comprehensive testing, including insulation resistance, insertion/pull-out forces, and environmental performance. A random sample of 5% of each batch is tested for 10,000 insertion cycles to ensure long-term durability.
• Post-Delivery Support: The company offers 24/7 technical support to help customers with installation and troubleshooting, ensuring that the product performs as expected.

This rigorous quality control ensures that every SMT-2038-24P-FTP panel meets the company’s high standards and customer expectations. The company’s defect rate is less than 0.1%, well below the industry average of 0.5%.

4. Sustainability and Compliance

The company is committed to sustainability, with practices that reduce its environmental impact:

• ROHS Compliance: All products are manufactured without hazardous substances, aligning with global environmental regulations.
• Recyclable Materials: The cold-rolled steel used in the panel is 100% recyclable, and plastic components are made from recyclable polymers (PET and ABS).
• Energy-Efficient Production: The production lines use energy-efficient machinery, reducing the company’s carbon footprint by 20% compared to 2018.
• Recyclable Packaging: The product is packaged in a recyclable blister bag and cardboard box, with no plastic foam (a common non-recyclable material in competitor packaging).

Real-World Applications of the SMT-2038-24P-FTP Patch Panel

The SMT-2038-24P-FTP’s versatility makes it suitable for a wide range of applications, from small office networks to large data centers. Below are some key use cases and a case study:

1. Data Centers

Data centers require high-density, reliable cabling solutions to support thousands of servers and devices. The SMT-2038-24P-FTP’s FTP shielding reduces EMI/RFI, which is critical in data centers where multiple cables are packed closely together. Its 1U height allows for maximum rack density (up to 42 panels per 42U rack), and the rear cable manager keeps cables organized, making it easier to trace and manage connections. The panel’s durability ensures it can withstand the high-traffic environment of data centers, where frequent maintenance and reconfiguration are common.

2. Office Environments

Small to medium-sized offices need cabling solutions that are easy to install and maintain. The SMT-2038-24P-FTP’s 19-inch rack-mount design fits standard office cabinets, and its blank ports allow for customization with the office’s preferred connectors (e.g., Cat6). The front labeling system makes it easy to assign ports to specific rooms or departments, reducing downtime during moves or reconfigurations. The rear cable manager keeps cables neat, improving the office’s aesthetic and reducing the risk of tripping hazards.

3. Industrial Settings

Industrial environments (factories, warehouses) often have harsh conditions (dust, moisture, extreme temperatures). The SMT-2038-24P-FTP’s nickel-plated steel bracket is corrosion-resistant, and its operating temperature range (-25°C to +70°C) makes it suitable for these environments. The FTP shielding blocks interference from industrial machinery (e.g., conveyor belts, robotic arms), ensuring reliable data transmission. The panel’s sturdy design can withstand the rough handling common in industrial settings.

4. Smart Home and Automation Systems

Smart homes and industrial automation systems require reliable cabling to connect devices (e.g., security cameras, sensors, smart appliances). The SMT-2038-24P-FTP’s compact 1U size fits in small enclosures, and its blank ports allow for customization with the system’s preferred connectors (e.g., Cat5e for low-speed devices). The front labeling system makes it easy to identify which port connects to which device, simplifying maintenance. The rear cable manager keeps cables organized, reducing the risk of damage from moving parts or dust.

Case Study: Data Center Implementation

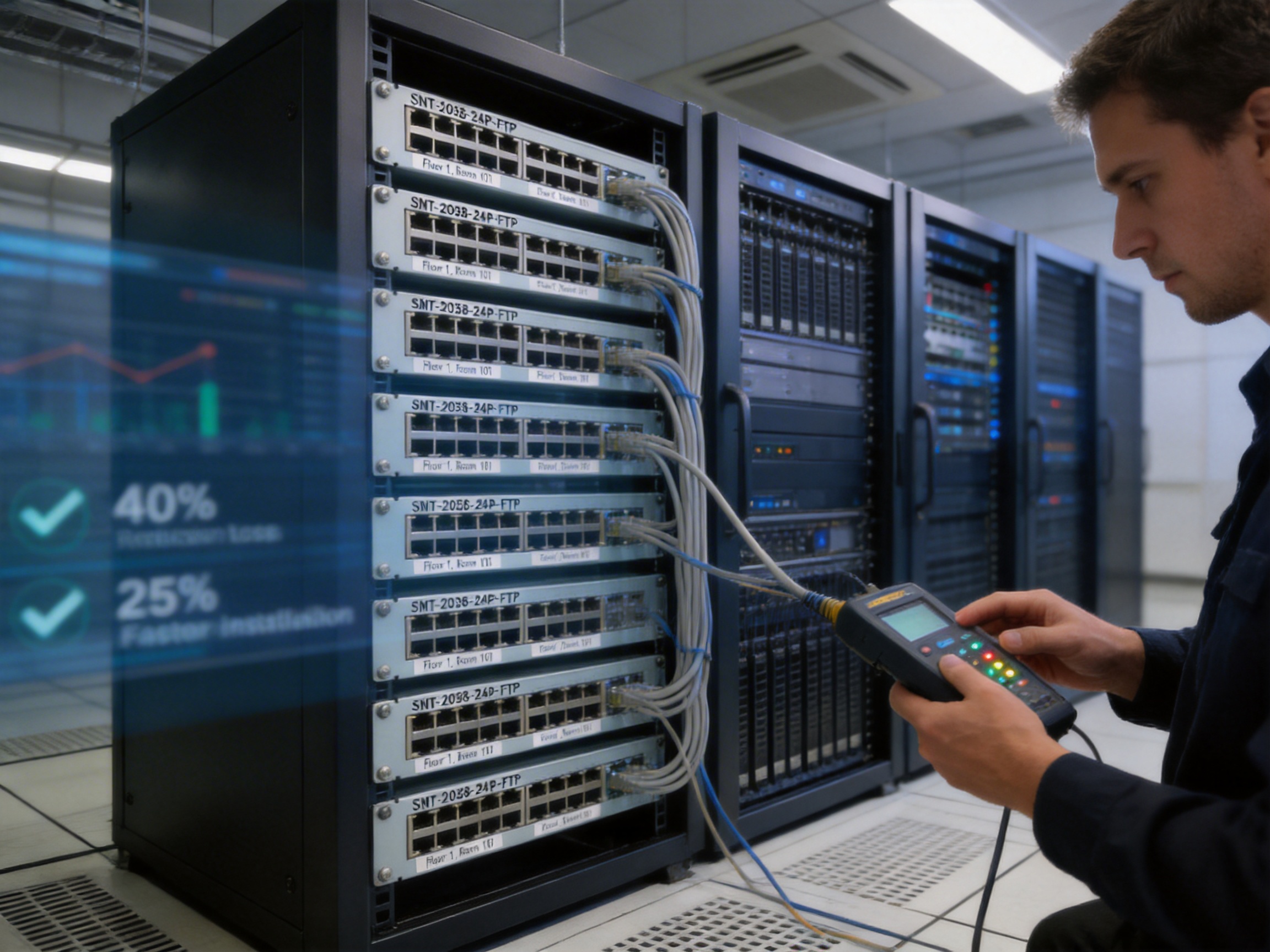

A mid-sized data center in Southeast Asia recently upgraded its cabling system to support 10Gbps Ethernet. The facility had previously used unshielded patch panels, which were causing frequent signal interference from nearby power lines and server racks. After switching to the SMT-2038-24P-FTP panels (installing 500 units across 12 racks), the data center reported:

• A 40% reduction in data loss incidents (from 12 per month to 7 per month).
• A 25% decrease in installation time for new server racks (from 8 hours to 6 hours per rack).
• A 30% reduction in maintenance time (from 4 hours per rack per month to 2.8 hours per rack per month).

The data center’s IT manager noted: “The FTP shielding made a huge difference in our network reliability. We used to have to troubleshoot interference issues every week, but now we rarely see them. The rear cable manager also kept our racks neat, which made it much easier to trace cables during our monthly maintenance checks.”

Q&A Section

Below are answers to common questions about the SMT-2038-24P-FTP patch panel:

Q1: What makes this patch panel better than unshielded alternatives?

Unshielded patch panels are prone to EMI/RFI interference, which can cause data loss or slowdowns in high-speed networks. The SMT-2038-24P-FTP uses FTP shielding to block this interference, ensuring reliable data transmission. Additionally, the panel includes features like a rear cable manager and grounding fixture that are often missing in unshielded panels, improving installation efficiency and cable management.

Q2: Can this panel be used with different connector types?

Yes. The panel’s blank design accepts standard series connectors (e.g., Cat5e, Cat6, Cat6a). This flexibility allows users to choose the connector type that best fits their network needs, making it ideal for custom setups.

Q3: How does the rear cable manager improve cable performance?

The rear cable manager guides cables to the termination points, ensuring the bend radius stays within recommended limits. Tight bends can cause signal loss or damage to the cable’s internal conductors. The manager also keeps cables organized, making it easier to trace and maintain connections, reducing downtime.

Q4: What are the storage requirements for the product?

The packaged product should be stored in a warehouse with an ambient temperature of -5°C to +30°C, relative humidity of ≤70%, and no corrosive gases (acid, alkali). The storage period is three years.

Q5: Does the manufacturer offer customization options?

Yes. The manufacturer has 10 customization production lines and offers OEM/ODM services. Customization options include:

• Custom labeling (e.g., company logos, specific port assignments).
• Custom connector types (pre-installed).
• Custom packaging (e.g., branded boxes).
• Custom port counts (e.g., 12-port or 48-port panels).

Q6: Is the panel compatible with wall brackets?

Yes. The panel’s 19-inch rack-mount design is compatible with standard wall brackets, making it suitable for wall-mounted installations in offices or small spaces.

Q7: What is the warranty period for the product?

The manufacturer offers a 5-year warranty for the SMT-2038-24P-FTP panel, covering defects in materials and workmanship.
