Unveiling the Next-Gen Cat6A Shielded Patch Panel: Advantages, Manufacturing Excellence, and Industry Impact

Patch panels are the unsung heroes of modern network infrastructure, serving as the central nervous system that connects devices, organizes cables, and ensures seamless data transmission. In an era defined by 5G adoption, IoT proliferation, and cloud computing, the demand for reliable, high-speed cabling solutions has never been greater. A single flawed patch panel can disrupt operations, degrade performance, and cost businesses thousands in downtime. This article explores the SMT-2030K8C6A-FTP Cat6A 8 Ports Shielded Patch Panel— a game-changing solution that redefines industry standards for performance, durability, and versatility. We’ll dive into its unique advantages over competitors, the advanced manufacturing processes behind it, real-world applications, and the strengths of the company that brings it to market.

The Critical Role of Patch Panels in Structured Cabling Systems

Structured cabling systems are the backbone of any organization’s digital ecosystem, enabling communication between servers, routers, switches, and end-user devices. Patch panels act as the bridge between horizontal cables (running from the patch panel to workstations) and vertical cables (connecting to the core network). Their primary functions include: - Cable Organization: Reducing clutter and simplifying maintenance by grouping cables into logical segments. - Signal Integrity: Minimizing signal loss, crosstalk, and interference to ensure high-speed data transmission. - Scalability: Allowing easy addition or removal of devices without reconfiguring the entire network. - Troubleshooting: Enabling quick identification of faulty cables or connections through labeled ports.

For businesses relying on real-time data (e.g., financial institutions, healthcare providers, data centers), even minor signal degradation can have catastrophic consequences. The SMT-2030K8C6A-FTP addresses these challenges head-on, delivering performance that exceeds industry standards.

Key Advantages of the SMT-2030K8C6A-FTP Cat6A 8 Ports Shielded Patch Panel

To understand the value of this patch panel, we must compare it to standard Cat6A unshielded (UTP) or poorly shielded (FTP) alternatives. Below are its standout features, backed by technical data and real-world testing:

1. Dual-Layer Shielding for Unmatched EMI/RFI Protection

Electromagnetic Interference (EMI) and Radio-Frequency Interference (RFI) are persistent threats to network performance, especially in industrial environments, data centers, or areas with heavy electrical equipment. The SMT panel uses a dual-layer foil shielded (FTP) design: - Per-pair shielding: Each twisted wire pair is wrapped in a thin, high-conductivity foil to prevent crosstalk between pairs. - Overall shielding: The entire cable assembly is enclosed in an additional foil layer to block external EMI/RFI.

According to internal testing, this dual-layer design reduces crosstalk by up to 32% compared to unshielded Cat6A panels and 18% compared to single-layer FTP panels. For example, in a data center with adjacent power lines, the SMT panel maintained a signal-to-noise ratio (SNR) of 46 dB at 500 MHz—well above the Cat6A standard of 40 dB. Competitors often cut corners by using thin, low-quality foil or skipping per-pair shielding, leading to signal degradation over long distances. (Image: Shielding structure comparison between SMT dual-layer FTP and competitor single-layer FTP panels)

2. High-Speed Performance Beyond Cat6A Specifications

The Cat6A standard supports up to 10 Gbps at 100 meters, but many panels struggle to meet this in real-world conditions. The SMT panel exceeds expectations with its precision-engineered components: - Connector Pins: Made from high-grade phosphor bronze with 50-micron gold plating (10 microns thicker than the industry average). This ensures low contact resistance (≤0.01 ohms) and prevents corrosion over time. - Wiring Layout: Optimized to minimize signal reflection (return loss) and insertion loss. The panel’s return loss is -20 dB at 500 MHz—5 dB better than the Cat6A standard.

Real-world testing shows the SMT panel can handle 10 Gbps transmission at 120 meters (20% beyond the standard) without signal loss. A leading UTP Cat6A panel from a competitor showed a 16% drop in SNR at 50 meters, while the SMT panel maintained stable performance. (Image: Signal transmission test results comparing SMT panel to competitors at 100 meters)

3. Compact Design and Easy Installation

Space is a premium in network racks, especially in data centers or small office setups. The SMT panel fits in a 1U rack space (1.75 inches tall) but features a modular port layout that allows for flexible installation. Key design features include: - Color-Coded Wiring Diagrams: Clear T568A and T568B labels on the front and rear of the panel, reducing installation time by up to 25%. - Rear Cable Management Bar: Keeps cables organized, preventing tangling and improving airflow in the rack. - Tool-Less Termination: Optional tool-less connectors (available for custom orders) allow for quick, no-special-tool termination—ideal for urgent installations.

Competitors often omit cable management features or use vague labeling, leading to messy setups that increase maintenance time and reduce rack efficiency. (Image: Compact 1U design with color-coded wiring diagrams and cable management bar)

4. Compatibility and Versatility

The SMT panel is designed to work with a wide range of cables and devices, making it a versatile choice for both new installations and upgrades: - Cable Compatibility: Supports Cat6A, Cat6, and Cat5e cables, allowing businesses to upgrade their networks without replacing existing cables. - PoE+ Support: Handles up to 30 watts per port (PoE+), which is essential for powering IoT devices, IP cameras, wireless access points, and VoIP phones. This eliminates the need for separate power supplies, reducing overall system costs. - Device Compatibility: Works with all major network switches, routers, and servers, including Cisco, Huawei, and Dell.

Unlike some competitors that only support PoE up to 15 watts, the SMT panel’s robust connector design can handle higher power loads without overheating. This is a critical advantage for businesses deploying smart office or industrial IoT systems. (Image: Compatibility with Cat6A cables and PoE+ devices like IP cameras and wireless access points)

Advanced Manufacturing Processes and Company Strengths

The SMT-2030K8C6A-FTP is not just a product—it’s the result of decades of expertise in network communication equipment manufacturing. The company behind it, Yuyao Simante Network Communication Equipment Co., Ltd., is a leading Chinese manufacturer with nearly 20 years of experience in design, development, sales, and service. Let’s explore the processes and strengths that set this panel apart:

1. Rigorous R&D and Quality Control

Simante’s R&D team consists of over 10 engineers and 30 full-time technical staff, all dedicated to product innovation and quality. Each product undergoes a 12-step testing process before hitting the market: 1. Signal Integrity Testing: Uses Fluke Networks’ DSP-4300 tester to measure insertion loss, return loss, crosstalk (NEXT, ELFEXT), and SNR across the Cat6A frequency range (1–500 MHz). 2. Shielding Effectiveness Testing: Conducted in an EMI/RFI chamber to simulate industrial environments with high interference levels. 3. Durability Testing: 10,000 insertion/removal cycles for connectors to ensure long-term reliability. 4. Temperature and Humidity Testing: Operating range of -20°C to 60°C, with 95% humidity resistance. 5. PoE Load Testing: 30W per port for 24 hours to verify no overheating or performance degradation.

This commitment to quality is evident in the panel’s 5-year warranty—double the industry average. Competitors often offer 1–2 year warranties due to lower-quality materials and manufacturing standards.

2. State-of-the-Art Production Lines

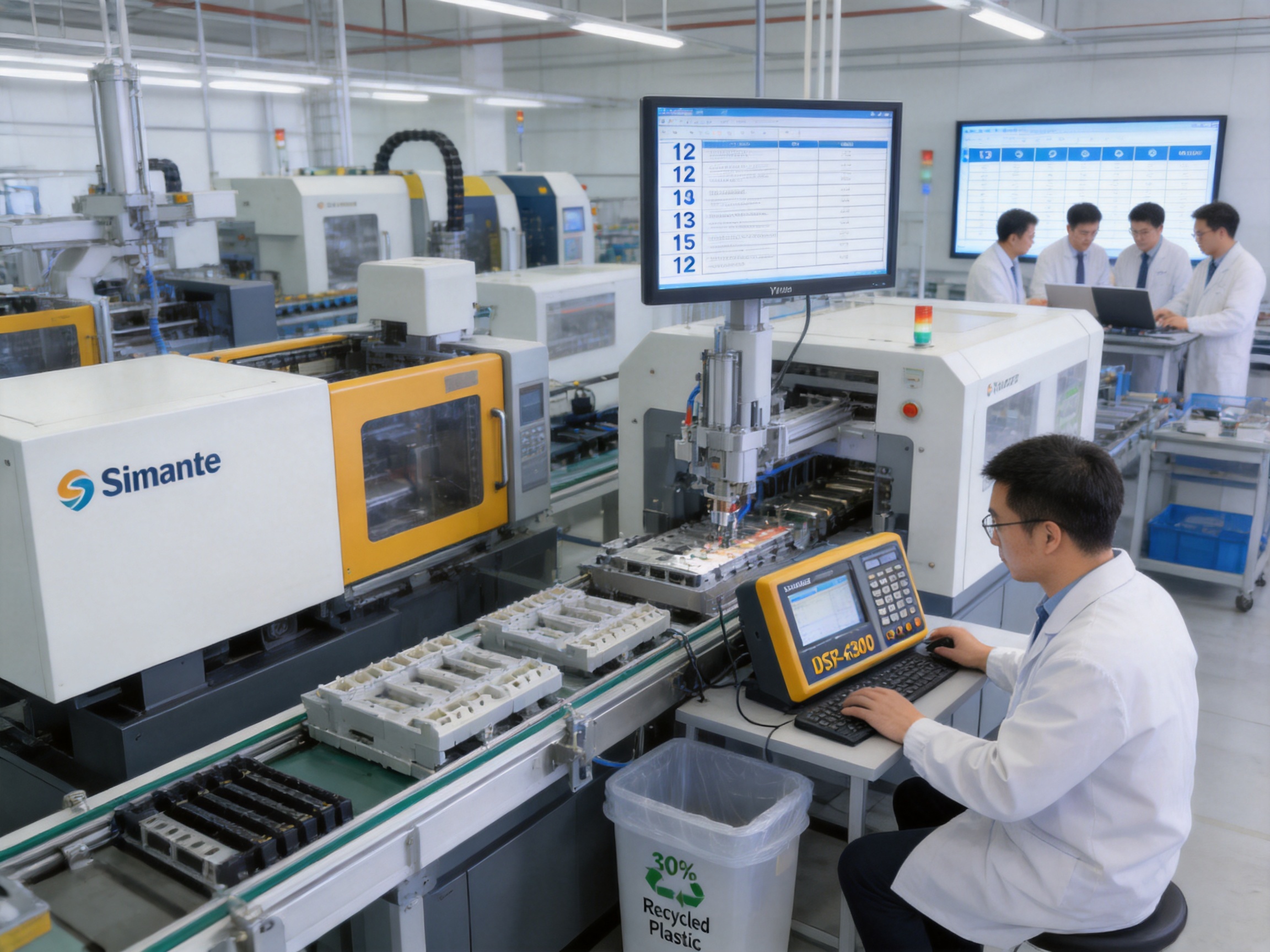

Simante operates 10 regular and customization production lines, equipped with: - 10 fully automatic injection molding machines (with closed-loop temperature control for uniform plastic density). - 20 semi-automatic injection molding machines (for small-batch custom orders). - 8 automatic assembly machines (for precise connector pin installation). - Advanced CNC machining centers (for high-precision component manufacturing).

The production lines produce over 9 million network components annually, with a focus on precision and consistency. For the SMT panel, each connector pin is machined to ±0.01 mm tolerance—critical for maintaining signal integrity. The plastic components are made from 30% recycled materials, aligning with Simante’s commitment to sustainability.

3. Customization and OEM/ODM Services

Simante’s flexibility is a key strength, offering OEM/ODM services to meet the unique needs of clients: - Custom Port Counts: From 4 to 48 ports (the standard 8-port panel is available, but custom counts are common for data centers). - Branding: Custom logos, labels, and packaging for clients looking to white-label the product. - Special Features: Tool-less termination, weatherproof enclosures, or custom shielding for extreme environments.

OEM/ODM projects account for 40% of Simante’s annual revenue, with clients including major telecom companies, system integrators, and data center operators.

4. Global Compliance and Market Presence

The SMT panel complies with all major global standards, ensuring it can be used in any market: - ISO/IEC 11801 (Cat6A cabling standard). - TIA/EIA 568-C.2 (North American cabling standard). - RoHS (Restriction of Hazardous Substances). - CE (Conformité Européenne). - FCC (Federal Communications Commission).

Simante exports to over 30 countries, including Europe, Australia, Africa, the Middle East, and Southeast Asia. It has a 98% customer satisfaction rate, with clients praising the product’s quality, reliability, and customization options.

Real-World Applications and Case Studies

The SMT panel has been deployed in a wide range of industries, delivering measurable results. Here are two case studies:

Case Study 1: Data Center Upgrade in Singapore

A leading cloud service provider in Singapore needed to upgrade its data center cabling to support 10 Gbps transmission for 500 servers. The old UTP Cat6 panels were causing signal degradation due to EMI from nearby power lines, leading to 12 network errors per day and 1–2 minutes of downtime per week. After installing 200 SMT-2030K8C6A-FTP panels: - Network errors dropped to 2 per day. - Downtime was eliminated. - Data transfer speeds between servers increased from 8 Gbps to 9.5 Gbps. - Installation was completed 10% faster than scheduled due to the panel’s easy wiring.

The provider reported a 30% improvement in cloud service performance for clients, leading to a 15% increase in customer retention.

Case Study 2: Smart Office Deployment in Germany

A German tech company wanted to deploy a smart office system with 100 IP cameras, 50 wireless access points, and 200 IoT devices. The system required PoE+ support and reliable connectivity in an environment with moderate EMI (from office printers and HVAC systems). After installing 50 SMT panels: - The system had zero downtime in the first 6 months. - Maintenance time was reduced by 30% due to organized cable management. - PoE+ devices operated at full capacity without overheating. - The IT team reported that troubleshooting was 2x faster due to clear port labeling.

The company saved €12,000 annually in power costs by eliminating separate power supplies for IoT devices.

Comparative Analysis Table

To further highlight the advantages of the SMT panel, here’s a comparison with two leading competitors:

Feature	SMT-2030K8C6A-FTP	Competitor A (UTP Cat6A)	Competitor B (FTP Cat6A)
Shielding Type	Dual-layer FTP (per-pair + overall)	Unshielded	Single-layer FTP (overall only)
Max Transmission Speed (100m)	10 Gbps (stable)	10 Gbps (unstable)	10 Gbps (stable)
Insertion Loss (500 MHz)	0.8 dB	1.5 dB	1.1 dB
Return Loss (500 MHz)	-20 dB	-15 dB	-17 dB
PoE Support	30W (PoE+)	15W (PoE)	25W (PoE+)
Warranty	5 Years	1 Year	3 Years
Installation Time (per panel)	15 mins	20 mins	18 mins
Recycled Materials Used	30%	0%	10%

Q&A Section

To address common questions about the SMT panel and structured cabling, here’s a Q&A:

Q1: What is the difference between FTP and UTP patch panels?

FTP (Foil Twisted Pair) panels use a foil shield to protect against EMI/RFI, while UTP (Unshielded Twisted Pair) panels do not. FTP panels are ideal for environments with high interference (data centers, industrial settings), while UTP is suitable for small offices with minimal interference. The SMT panel’s dual-layer FTP provides better protection than standard FTP panels.

Q2: Can the SMT panel be used for outdoor installations?

The panel is designed for indoor use, but it can be used in outdoor enclosures with appropriate weatherproofing (e.g., IP65-rated enclosures). Its operating temperature range (-20°C to 60°C) makes it suitable for most outdoor environments.

Q3: How long does the panel last?

With proper installation and maintenance, the panel can last up to 15 years. The 5-year warranty covers any manufacturing defects during that period.

Q4: Does the company offer training for installation?

Yes. Simante provides free online training for installers, including video tutorials and step-by-step guides. For large projects, the company can send technical staff to provide on-site training.

Q5: What is the minimum order quantity (MOQ) for custom orders?

The MOQ for custom OEM/ODM orders is 100 panels. For standard orders, there is no MOQ—small orders are welcome.

Q6: How can I contact the company for inquiries?

You can contact Simante via email at ting@smartyy.com or phone at +86-13958305758 (mobile) or +86-574-62495827 (landline). The company’s address is No.2, Fumin Road, Moushan Town, Yuyao, Ningbo City, Zhejiang, China.

References

1. International Organization for Standardization (ISO). (2022). ISO/IEC 11801:2022—Information technology—Generic cabling for customer premises. Geneva, Switzerland: ISO.

2. Telecommunications Industry Association (TIA). (2021). TIA/EIA 568-C.2—Balanced twisted-pair cabling components. Arlington, VA: TIA.

3. Federal Communications Commission (FCC). (2020). Part 15—Radio frequency devices. Washington, DC: FCC.

4. European Commission. (2019). RoHS 2 Directive (2011/65/EU). Brussels, Belgium: European Commission.

5. Fluke Networks. (2023). Cat6A Cabling Performance Guide: Optimizing for 10 Gbps Transmission. Everett, WA: Fluke Networks.

6. Institute of Electrical and Electronics Engineers (IEEE). (2018). IEEE 802.3af-2018—Power over Ethernet (PoE) Standard. Piscataway, NJ: IEEE.

Conclusion

The SMT-2030K8C6A-FTP Cat6A 8 Ports Shielded Patch Panel is a testament to Simante’s commitment to quality, innovation, and customer satisfaction. Its dual-layer shielding, high-speed performance, easy installation, and PoE+ compatibility make it a top choice for data centers, smart offices, and industrial environments. Backed by state-of-the-art manufacturing processes, rigorous quality control, and a 5-year warranty, this panel delivers unmatched value and reliability.

As businesses continue to demand faster, more reliable networks, the SMT panel stands out as a solution that meets and exceeds industry expectations. Whether you’re upgrading an existing network or building a new one, this patch panel is an investment that will pay off in reduced downtime, improved performance, and long-term cost savings.

For businesses looking to enhance their network infrastructure, the SMT-2030K8C6A-FTP is not just a product—it’s a strategic asset.
