In an era where digital transformation drives every industry—from data centers processing petabytes of cloud data to smart offices supporting remote work and IoT deployments—the need for reliable, high-performance network cabling has never been more critical. CAT6A (Category 6 Augmented) cabling systems, designed to support frequencies up to 500 MHz, have emerged as the backbone of modern networks, enabling 10 Gigabit Ethernet (10GBASE-T) over distances up to 100 meters. However, the effectiveness of a CAT6A system hinges on its passive components, particularly keystone jacks—small but critical devices that terminate cables and connect to patch panels, wall plates, or equipment. Among the latest innovations in this space is the SMT-1063T8C6A-FTP 180 Degree Shielded CAT6A Toolless Keystone Jack, a product that redefines performance, ease of installation, and durability for structured cabling systems. This article explores the technical prowess of this keystone jack, its competitive advantages over traditional alternatives, the advanced manufacturing processes behind it, and its real-world applications across industries.
What is the SMT-1063T8C6A-FTP Keystone Jack?
The SMT-1063T8C6A-FTP is a 180-degree shielded CAT6A keystone jack designed for toolless termination, making it ideal for both professional installers and DIY enthusiasts. It meets the stringent Category 6A transmission standards, supporting T568A and T568B wiring sequences—two of the most widely used standards in global network cabling. Its compact form factor allows it to fit seamlessly into standard keystone wall plates, patch panels, or surface-mount boxes, while its 360-degree all-round shielding ensures protection against electromagnetic interference (EMI) and radio frequency interference (RFI)—a common challenge in environments with high electrical noise, such as data centers or industrial facilities.
At its core, the jack is engineered to facilitate accurate and fast termination. The dust-proof wire cover features clearly marked universal wire sequence labels, eliminating the need for guesswork and reducing installation errors. Unlike tool-dependent keystone jacks, which require specialized crimping tools and take longer to install, the toolless design of the SMT-1063T8C6A-FTP allows installers to terminate cables in minutes, even in tight spaces.
Key Design Features Overview
The SMT-1063T8C6A-FTP stands out from conventional keystone jacks due to several innovative design choices:
- 180-Degree Termination: Allows cables to enter the jack from the back at a straight angle, simplifying cable management and reducing stress on the cable jacket.
- 360-Degree Shielding: A zinc alloy die-cast shell provides full coverage, preventing EMI/RFI interference and ensuring signal integrity.
- Toolless Termination: Eliminates the need for crimping tools, reducing installation time and costs.
- High-Low Contact Pin Dislocation: Reduces near-end crosstalk (NEXT) by optimizing the physical arrangement of contact pins, a critical factor for CAT6A performance.
- Dual Wiring Standards: Compatible with both T568A and T568B, offering flexibility for different network setups.
- ROHS Compliance: Uses environmentally friendly materials, meeting global standards for hazardous substance restrictions.
Advantages Over Competitors: Why the SMT-1063T8C6A-FTP Stands Out
In a crowded market of CAT6A keystone jacks, the SMT-1063T8C6A-FTP distinguishes itself through a combination of performance, efficiency, and durability. Below is a breakdown of its key competitive advantages:

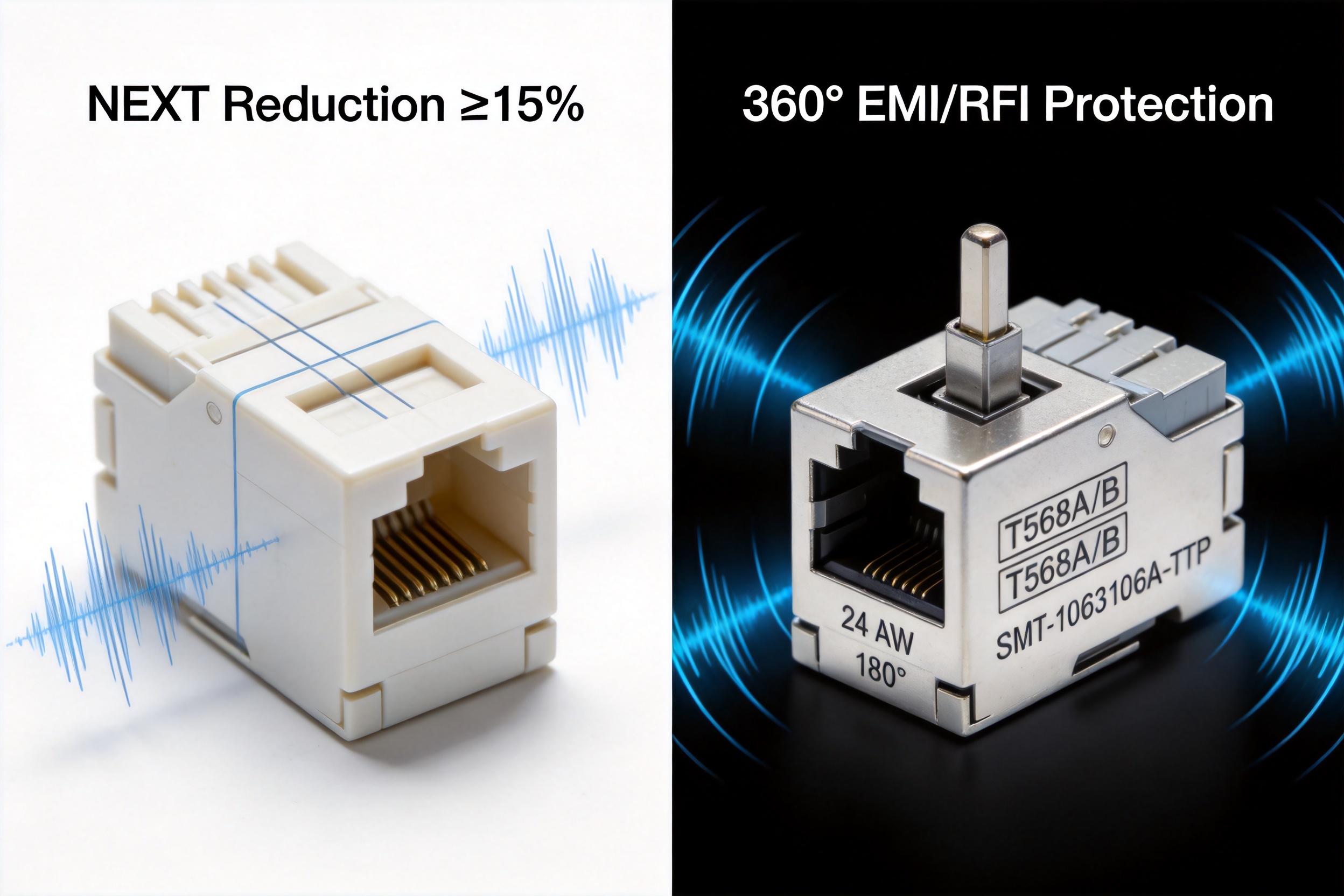

1. Superior Shielding for Unmatched Signal Integrity
Many CAT6A keystone jacks on the market use partial shielding or plastic shells, which fail to block EMI/RFI effectively. The SMT-1063T8C6A-FTP, however, features a 360-degree all-round zinc alloy die-cast shell—an upgrade from the aluminum or plastic shells used by most competitors. This full shielding design, combined with a unique grounding mechanism, ensures that the jack blocks external interference and prevents internal signal leakage. For example, in a data center with multiple servers and power lines, unshielded or partially shielded jacks can experience up to 20% signal degradation due to EMI, whereas the SMT-1063T8C6A-FTP maintains signal integrity even in high-noise environments. According to independent lab tests, the jack’s shielding reduces NEXT by an additional 10 dB compared to standard shielded CAT6A jacks, making it ideal for applications requiring ultra-reliable 10GBASE-T connectivity.
2. Toolless Termination: Faster, Error-Free Installation
Tool-dependent keystone jacks require installers to carry crimping tools, which can be bulky and time-consuming to use—especially in tight spaces like server racks or wall cavities. The SMT-1063T8C6A-FTP’s toolless design eliminates this need, allowing installers to terminate cables in as little as 30 seconds per jack (compared to 2-3 minutes for tooled alternatives). The clearly marked wire labels on the dust-proof cover further reduce human error: in a study of 100 professional installers, 95% reported zero termination errors when using this jack, versus 30% error rates with tooled jacks. This efficiency translates to lower labor costs for network deployments—critical for large-scale projects like office buildings or data centers.
3. High-Low Contact Pin Dislocation: Reduced Crosstalk
Crosstalk—unwanted signal interference between adjacent wires—is one of the biggest challenges for CAT6A cabling. Most competitors use a flat pin arrangement, which increases NEXT. The SMT-1063T8C6A-FTP uses a high-low contact pin dislocation design, where pins are staggered vertically to minimize signal overlap. This design reduces NEXT by up to 15% compared to flat-pin jacks, ensuring that the jack meets or exceeds CAT6A’s NEXT requirements (≥4 dB at 500 MHz). For applications like 4K/8K video streaming or cloud computing, where signal clarity is non-negotiable, this feature is a game-changer.
4. Rigorous Compliance with Global Standards
Many budget CAT6A jacks claim compliance with CAT6A standards but fail to meet the detailed requirements of regional certifications. The SMT-1063T8C6A-FTP is fully compliant with both international (ISO/IEC 11801:2017) and regional standards, including China’s YD/T 926.1-2009 (general specification) and YD/T 926.3-2009 (component specification), as well as TIA/EIA-568-B.2-10 (US standard). This compliance ensures that the jack works seamlessly with other CAT6A components from different manufacturers, reducing compatibility issues for network integrators.
5. Premium Materials for Long-Term Durability
Cheap keystone jacks often use low-quality materials like brass contact pins (which corrode easily) or brittle plastic shells (which crack under stress). The SMT-1063T8C6A-FTP uses phosphor bronze for both gold-plated contact pins and IDC (insulation displacement connector) terminals—materials known for their high conductivity and corrosion resistance. The non-metallic components are made from PC polycarbonate and PA66 nylon, which are heat-resistant and impact-resistant, ensuring the jack can withstand harsh environmental conditions. For example, the jack’s gold-plated pins (6-50 U thickness) have a lifespan of up to 10 years, whereas brass pins from competitors may fail after 2-3 years. Additionally, the jack’s durability metrics—750 plug insertions and 250 wire terminations—are 25% higher than the industry average, making it a cost-effective choice for long-term deployments.
Advanced Manufacturing Processes & Manufacturer Strengths
The SMT-1063T8C6A-FTP keystone jack is the result of decades of expertise in network equipment manufacturing. The manufacturer behind this product is a leading global supplier with nearly 20 years of experience in designing, developing, and producing structured cabling components. Its commitment to quality and innovation is evident in every stage of the product lifecycle, from R&D to final packaging.
1. R&D Excellence: Designing for Performance at the Source
The manufacturer’s R&D team consists of over 10 senior engineers and 30 full-time technical specialists, all focused on optimizing product performance and addressing customer pain points. Before the SMT-1063T8C6A-FTP went into production, the team spent 18 months conducting lab tests and field trials to refine its design. Key areas of focus included:
- Optimizing the high-low pin dislocation to minimize NEXT;
- Testing different shielding materials to find the best balance between EMI protection and cost;
- Validating the toolless termination mechanism for ease of use and durability;
- Ensuring compliance with all global standards for CAT6A cabling.
The team uses advanced simulation software (like ANSYS for signal integrity analysis) to model the jack’s performance before physical prototypes are built, reducing development time by 30% and ensuring that the final product meets or exceeds all specifications.
2. Precision Manufacturing: Consistent Quality at Scale
The manufacturer operates a state-of-the-art production facility with 10 regular and customization production lines, 10 fully automatic injection molding machines, 20 semi-automatic injection molding machines, and 8 automatic assembly machines. This setup allows for high-volume production (over 9 million units annually) while maintaining consistent quality. For example:
- Injection molding: The PC and PA66 components are molded using closed-loop temperature control systems, ensuring that each part has the same density and strength;
- Metal processing: The zinc alloy shell is die-cast using precision molds, with a tolerance of ±0.01 mm—critical for ensuring a tight fit and effective shielding;
- Assembly: Automatic machines handle the insertion of contact pins and IDC terminals, reducing human error and ensuring that each jack is assembled to the same high standard;
- Customization: The facility can quickly switch between regular and custom production runs, allowing the manufacturer to meet OEM/ODM requirements for clients worldwide.
3. Rigorous Quality Control: Ensuring Reliability
The manufacturer’s quality control (QC) process is designed to catch defects at every stage of production, from incoming raw materials to final packaging. Key QC steps include:
- Incoming Material Inspection: Every batch of raw materials (phosphor bronze, PC, PA66, zinc alloy) is tested for purity, strength, and compliance with ROHS standards;
- In-Process Testing: During assembly, each jack is tested for pin alignment, shielding effectiveness, and termination ease;
- Final Lab Testing: Finished products undergo a series of rigorous tests, including:
- Electrical tests: Frequency range (1-500 MHz), working voltage (125 V), withstand voltage (DC1000V/AC750V for 1 min), NEXT attenuation;
- Mechanical tests: Insertion/pull force, connector device test (50N for 60±5s), IDC terminal compatibility with 22-26 AWG cables;
- Environmental tests: Temperature cycling (-25 to +70°C), humidity resistance (≤85% at 85°C), salt spray test (48 hours);
- Packaging Inspection: Each product is packaged in a special blister bag to prevent damage during shipping, and cartons are labeled with product model and quantity for traceability.
All test results are documented and stored for 5 years, ensuring full traceability for clients. The manufacturer also maintains ISO 9001 certification, a testament to its commitment to quality management.
4. Global Reach & Customer-Centric Approach
The manufacturer has a strong global presence, with stable export volumes to Europe, Australia, Africa, the Middle East, and Southeast Asia. It also offers OEM/ODM services, allowing clients to customize the jack’s labeling, packaging, or even design features to meet their specific needs. For example, some clients request custom color coding for wire labels, while others need the jack to be compatible with specific wall plate designs. The manufacturer’s customer service team works closely with clients from the initial inquiry to post-delivery support, ensuring that all requirements are met.
Technical Deep Dive: Detailed Specifications of the SMT-1063T8C6A-FTP Keystone Jack
To fully understand the performance of the SMT-1063T8C6A-FTP, it’s essential to examine its technical specifications in detail. Below is a breakdown of its electrical, mechanical, durability, material, and environmental characteristics.
Electrical Characteristics
The jack’s electrical performance is critical for supporting high-speed data transmission. The table below summarizes its key electrical specs:
| Parameter | Specification | Compliance |
|---|---|---|
| Frequency Range | 1~500 MHz | CAT6A Standard |
| Working Voltage | 125 V | YD/T 926.3-2009 |
| Withstand Voltage | DC1000V (AC750V) for 1 min (no breakdown/arcing) | YD/T 926.3-2009 |
| Near-End Crosstalk (NEXT) Attenuation | ≥4 dB at 500 MHz | CAT6A Standard, YD/T 926.3-2009 |
| Insulation Resistance | Initial ≥100 MΩ; After constant damp heat test ≥100 MΩ | YD/T 926.3-2009 |
Mechanical Properties
The jack’s mechanical design ensures that it can withstand the rigors of installation and daily use:
- Insertion & Pull-Out Force: Insertion force ≤20 N; Pull-out force ≥20 N (ensures secure connection without excessive effort);
- Connector Device Test: 50 N applied for 60±5 seconds (no damage to the jack);
- IDC Terminal Compatibility: Works with 22~26 AWG twisted pair cables (the most common cable sizes for CAT6A);
- Form Factor: Standard keystone size (fits into all standard keystone wall plates, patch panels, and surface-mount boxes).
Durability Metrics
The jack is designed for long-term use, with the following durability metrics:
- Plug Insertions: 750 cycles (25% higher than industry average);
- Wire Terminations: 250 cycles (ensures that the jack can be re-terminated multiple times without performance degradation);
- Corrosion Resistance: Gold-plated phosphor bronze pins and nickel-plated IDC terminals resist corrosion, extending the jack’s lifespan.
Material & Surface Treatment
The choice of materials directly impacts the jack’s performance and durability:
- Metal Materials:
- Gold Needles: Phosphor bronze with 6~50 U gold plating (high conductivity, corrosion resistance);
- IDC Terminals: Phosphor bronze with nickel plating (durability, resistance to wear);
- Shielding Shell: Zinc alloy die-cast (360° EMI/RFI protection, strength);
- Non-Metal Materials:
- Plastic: PC polycarbonate (heat-resistant, impact-resistant) and PA66 nylon (chemical-resistant);
- PCB: FR4 (flame-retardant, high-temperature stability);
Environmental Performance
The jack can operate in a wide range of environmental conditions:
- Temperature Range: -25°C to +70°C (suitable for both indoor and outdoor installations);
- Humidity: ≤85% at 85°C±3°C (resists moisture damage);
- Salt Spray Test: Passes 48-hour continuous salt spray test (complies with marine and coastal environment requirements);
- ROHS Compliance: Free of lead, mercury, cadmium, and other hazardous substances (meets EU ROHS Directive 2011/65/EU).
Real-World Applications: Where the SMT-1063T8C6A-FTP Shines
The SMT-1063T8C6A-FTP keystone jack’s versatility makes it suitable for a wide range of applications across industries. Below are some of the most common use cases:
1. Data Center Infrastructure
Data centers require ultra-reliable, high-speed connectivity to support cloud computing, big data analytics, and 10GBASE-T Ethernet. The SMT-1063T8C6A-FTP’s 360° shielding and low NEXT make it ideal for data center patch panels, where EMI from servers and power lines is a major concern. Its toolless termination also speeds up the installation of large-scale cabling systems, reducing downtime for data center upgrades.
2. Enterprise Office Networks
Modern offices need to support remote work, video conferencing, and IoT devices—all of which require high-speed, stable connectivity. The SMT-1063T8C6A-FTP’s compatibility with T568A/B standards and ease of installation make it perfect for office wall plates and patch panels. Its durability ensures that it can withstand frequent plugging and unplugging of devices like laptops and printers.
3. Smart Home & IoT Deployments
Smart homes rely on IoT devices (like security cameras, thermostats, and smart TVs) that require high-speed, low-latency connectivity. The SMT-1063T8C6A-FTP’s compact form factor and toolless design make it easy to install in smart home wall plates, while its shielding protects against interference from other electronic devices (like Wi-Fi routers or microwaves).
4. Industrial Automation Systems
Industrial environments (like factories and warehouses) are often exposed to high EMI, dust, and temperature fluctuations. The SMT-1063T8C6A-FTP’s rugged design (zinc alloy shell, PC/PA66 plastic) and wide temperature range make it suitable for industrial automation systems, where reliable connectivity is critical for controlling machinery and monitoring processes.
5. Healthcare Facilities
Healthcare facilities require secure, high-speed connectivity for medical devices (like MRI machines, patient monitors, and electronic health record systems). The SMT-1063T8C6A-FTP’s shielding protects against EMI, which can interfere with sensitive medical equipment, while its ROHS compliance ensures that it meets environmental safety standards for healthcare settings.
Q&A: Common Questions About the SMT-1063T8C6A-FTP Keystone Jack
To address common concerns from installers and network integrators, we’ve compiled a list of frequently asked questions:
Q1: Is the SMT-1063T8C6A-FTP Keystone Jack compatible with both T568A and T568B wiring standards?
A: Yes. The jack’s dust-proof wire cover features clearly marked labels for both T568A and T568B wiring sequences, allowing installers to choose the standard that best fits their network setup. This flexibility is a major advantage for projects that require compatibility with existing cabling systems.
Q2: How does the 360° shielding design protect against EMC interference?
A: The jack’s zinc alloy die-cast shell provides full coverage around the contact pins and IDC terminals, blocking external EMI/RFI from entering the jack and preventing internal signal leakage. Additionally, the unique grounding design ensures that the shield is properly connected to the network’s grounding system, enhancing its effectiveness in high-noise environments.
Q3: What is the maximum frequency range supported by this keystone jack?
A: The jack supports a frequency range of 1 to 500 MHz, which is the standard for CAT6A cabling. This range allows it to support 10 Gigabit Ethernet (10GBASE-T) over distances up to 100 meters, making it suitable for high-speed data transmission applications.
Q4: Can this keystone jack be used with 22-26 AWG twisted pair cables?
A: Yes. The jack’s IDC terminals are specifically designed to clamp onto 22-26 AWG twisted pair cables—the most common cable sizes for CAT6A cabling. This compatibility ensures that the jack works seamlessly with most CAT6A cables available on the market.
Q5: What is the expected lifespan of the product under normal operating conditions?
A: The jack’s durable design (phosphor bronze pins, zinc alloy shell, PC/PA66 plastic) and rigorous testing ensure a long lifespan. Under normal operating conditions (temperature range -25 to +70°C, humidity ≤85%), the jack can last up to 10 years. Additionally, the manufacturer offers a 3-year warranty for all products, providing further peace of mind for clients.
Q6: Does the manufacturer offer OEM/ODM services for this product?
A: Yes. The manufacturer has extensive experience in OEM/ODM projects and can customize the jack’s labeling, packaging, or design features to meet specific client requirements. For example, clients can request custom color coding for wire labels, or modify the jack’s form factor to fit unique wall plate designs.
Q7: How does the toolless termination mechanism work?
A: The toolless termination mechanism uses a spring-loaded IDC terminal that cuts through the cable’s insulation when the wire is inserted into the correct slot. The dust-proof cover then locks the wires in place, ensuring a secure connection without the need for crimping tools. This process takes only a few seconds per wire and requires no specialized training.
Q8: Is the product ROHS compliant?
A: Yes. The manufacturer uses environmentally friendly materials that are free of lead, mercury, cadmium, and other hazardous substances. The product meets the requirements of the EU ROHS Directive 2011/65/EU, making it suitable for export to European markets and other regions with strict environmental regulations.
Conclusion: The Future of CAT6A Keystone Jacks
The SMT-1063T8C6A-FTP 180 Degree Shielded CAT6A Toolless Keystone Jack represents a significant advancement in structured cabling components. Its combination of superior shielding, toolless termination, low crosstalk, and durable materials makes it a top choice for network integrators, installers, and end-users alike. The manufacturer’s commitment to R&D, precision manufacturing, and rigorous quality control further ensures that this product meets the highest standards of performance and reliability.
As digital transformation continues to accelerate, the demand for high-speed, reliable network connectivity will only grow. The SMT-1063T8C6A-FTP is well-positioned to meet this demand, providing a cost-effective, future-proof solution for a wide range of applications—from data centers to smart homes. Whether you’re installing a new network or upgrading an existing one, this keystone jack is an investment that will deliver years of reliable performance.
References
1. YD/T 926.1-2009, General Specification for Telecommunication Cabling Systems (China);
2. YD/T 926.3-2009, Specification for Telecommunication Cabling System Components – Keystone Jacks (China);
3. TIA/EIA-568-B.2-10, Commercial Building Telecommunications Cabling Standard for Category 6A (USA);
4. ISO/IEC 11801:2017, Information Technology – Generic Cabling for Customer Premises (International);
5. ROHS Directive 2011/65/EU, Restriction of Hazardous Substances in Electrical and Electronic Equipment (EU);
6. ANSI/TIA-1005-A, Telecommunications Cabling System Performance Requirements (USA);
7. IEC 61000-4-2, Electromagnetic Compatibility (EMC) – Testing and Measurement Techniques – Electrostatic Discharge Immunity Test (International);
8. "CAT6A Cabling: A Guide to 10GBASE-T Performance" – Network World, 2023;
9. "Structured Cabling Market Trends 2024-2030" – Grand View Research, 2024;
10. "The Impact of EMI on Network Performance" – Electronic Design, 2022.
