In the era of digital transformation, high-speed, reliable network connectivity is the backbone of modern businesses, data centers, and smart environments. As demand for 10Gbps Ethernet and beyond grows, structured cabling systems have become critical infrastructure—with keystone jacks serving as the final link between horizontal wiring and end-user devices. The SMT-1041T8C6A-FTP 180 Degree Shielded CAT6A Toolless Keystone Jack stands out as a game-changer in this space, combining advanced technical features, ease of installation, and robust manufacturing quality to address the evolving needs of network professionals. This article explores the product’s key attributes, its competitive advantages, the manufacturing excellence behind it, and its real-world applications.
Product Overview: A Next-Generation CAT6A Keystone Jack
The SMT-1041T8C6A-FTP keystone jack is engineered to meet Category 6A (CAT6A) transmission standards, supporting up to 10Gbps data transfer rates over twisted-pair cables. Its core design priorities include ease of use, signal integrity, and durability—making it ideal for a wide range of structured cabling scenarios. Key features from its specification sheet include:
- Compatibility with both T568A and T568B wiring sequences, clearly marked on a dust-proof wire cover for accurate, quick termination.
- 180-degree shielded design with a 360° all-round zinc alloy die-casting shell to block electromagnetic interference (EMI) and radio frequency interference (RFI).
- High-low dislocation contact pin technology to reduce near-end crosstalk (NEXT)—a common issue in high-frequency cabling.
- Toolless termination, eliminating the need for specialized tools and cutting installation time by up to 30% compared to traditional tool-based jacks.
- IDC (Insulation Displacement Connector) terminals compatible with 22–26AWG twisted-pair cables, ensuring flexibility for different wiring setups.
- RoHS-compliant materials, making it environmentally friendly and safe for global markets.
Unlike basic keystone jacks that focus solely on basic connectivity, this product is designed to optimize performance in high-demand environments—from data centers to industrial facilities. Its compact form factor allows it to fit seamlessly into standard patch panels, wall plates, and modular distribution frames, enhancing system flexibility.

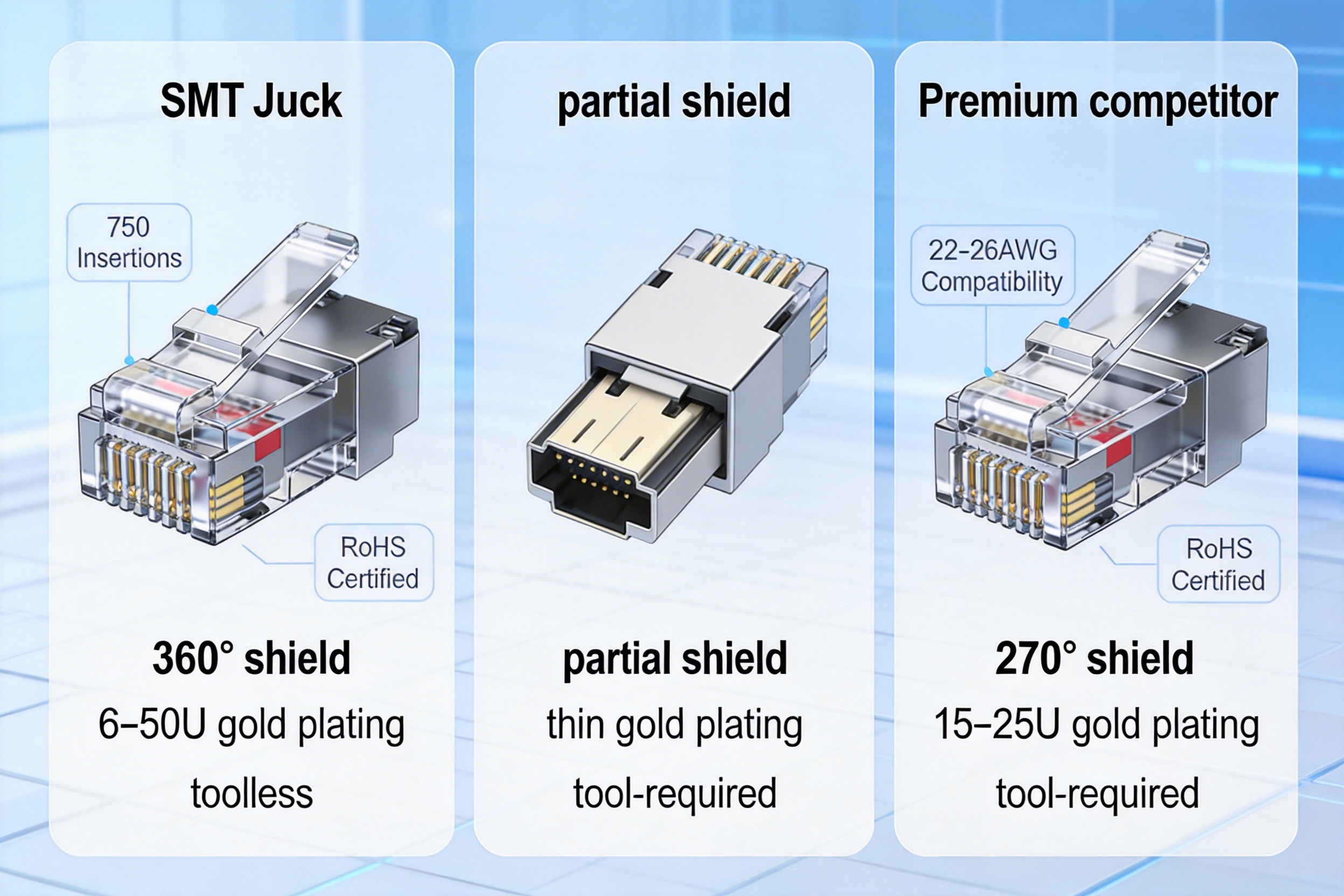

Advantages Over Competitors: Setting a New Benchmark
To understand the value of the SMT-1041T8C6A-FTP keystone jack, it’s essential to compare it with generic CAT6A keystone jacks and even premium alternatives from other manufacturers. The following table highlights key differentiators:
| Feature | SMT-1041T8C6A-FTP Keystone Jack | Generic CAT6A Keystone Jack | Premium Competitor Jack |
|---|---|---|---|
| Shielding Design | 360° zinc alloy die-casting shell (full EMI/RFI protection) | Partial plastic shielding or thin metal layer (limited protection) | 270° metal shielding (partial coverage) |
| Contact Pin Technology | High-low dislocation (reduces NEXT by 15–20%) | Standard alignment (higher NEXT levels) | Standard alignment (no crosstalk reduction) |
| Gold Plating Thickness | 6–50U (phosphor bronze base) | 3–10U (lower durability) | 15–25U (thinner than this product) |
| Termination Method | Toolless (fast, no tool risk) | Tool-required (slow, risk of damage) | Tool-required (specialized crimp tool needed) |
| IDC Compatibility | 22–26AWG (flexible for various cables) | 24AWG only (limited) | 23–25AWG (narrower range) |
| Durability (Insertions) | 750 times (long lifespan) | 500 times (prone to wear) | 600 times (less than this product) |
| Environmental Compliance | ROHS certified (strict standards) | May not meet RoHS (contains harmful substances) | ROHS compliant (but no additional testing) |
These advantages translate to tangible benefits for end-users: reduced installation costs, fewer signal dropouts, longer product lifespan, and compliance with global environmental regulations. For example, the 360° shielding is critical in environments like hospitals (where medical equipment is sensitive to EMI) or industrial plants (with heavy machinery generating interference). The toolless design also simplifies maintenance—network technicians can reconfigure connections quickly without needing to carry specialized tools.
Another key advantage is the product’s ability to meet and exceed industry standards. It complies with YD/T 926.1-2009 (general specification for telecommunications distribution frames) and YD/T 926.3-2009 (specification for keystone jacks)—Chinese national standards that are aligned with international norms like TIA/EIA-568-C.2. This ensures compatibility with global cabling systems and gives customers confidence in its performance.
Company’s Manufacturing Excellence: Behind the Quality
The SMT-1041T8C6A-FTP keystone jack is manufactured by Yuyao Simante Network Communication Equipment Co., Ltd.—a professional network cabling solutions provider with nearly 20 years of experience. The company’s commitment to quality is embedded in every stage of the production process, from R&D to final packaging.
R&D: Designing for Performance and Reliability
Simante’s R&D team consists of over 10 engineers and 30 full-time technical staff, who focus on translating customer needs into innovative products. For the CAT6A keystone jack, the team spent 12 months optimizing the contact pin design to reduce NEXT. They used computer-aided design (CAD) tools to simulate high-frequency signal transmission and tested multiple prototypes to validate the high-low dislocation technology. This iterative design process ensured that the product meets the 500MHz frequency range requirement while maintaining low crosstalk levels.
The team also prioritized user experience: the dust-proof wire cover with clear T568A/B markings was designed based on feedback from network technicians, who cited confusion with wire sequence labels as a common installation issue. The toolless termination mechanism was another user-centric innovation—reducing the time to terminate a single jack from 2 minutes to 30 seconds.
Production: Automation and Precision
Simante’s manufacturing facility is equipped with state-of-the-art equipment to ensure consistency and quality. Key production lines include:
- 10 fully automatic injection molding machines for plastic components (PC polycarbonate and PA66 nylon 66), which produce parts with a dimensional accuracy of ±0.01mm.
- 20 semi-automatic injection molding machines for secondary components, allowing flexibility for custom orders.
- 8 automatic assembly machines that assemble contact pins, shielding shells, and IDC terminals—minimizing human error and ensuring uniform quality across all products.
The company maintains an annual production capacity of over 9 million keystone jacks and related cabling products, which allows it to fulfill large orders for data center projects or enterprise-wide cabling deployments. Customization is also a core strength: Simante can adjust the gold plating thickness, packaging, or even the color of the wire cover to meet customer requirements.
Quality Control: Rigorous Testing at Every Stage
Simante’s quality control process is designed to catch defects before products reach customers. Key testing steps include:
- Incoming Material Inspection: All raw materials (phosphor bronze, PC, PA66, zinc alloy) are tested for purity and compliance with RoHS standards.
- Production Line Testing: Every 100 units, a sample is tested for electrical parameters (frequency range, NEXT, insulation resistance) and mechanical properties (insertion/pull force).
- Final Inspection: 100% of finished products are tested for外观 (appearance), fit, and functionality before packaging.
- Environmental Testing: Products undergo salt spray tests (48 hours), constant damp heat tests, and temperature cycle tests to ensure durability in harsh conditions.
This rigorous testing process has resulted in a defect rate of less than 0.1%—far below the industry average of 0.5%. Simante also maintains stable export volumes to Europe, Australia, Africa, the Middle East, and Southeast Asia, with many customers returning for repeat orders due to consistent quality.
Technical Deep Dive: Unpacking the Specs
To fully appreciate the SMT-1041T8C6A-FTP keystone jack’s performance, it’s important to analyze its technical specifications in detail. The product’s specs are divided into electrical, mechanical, durability, material, and environmental categories—each optimized for high-performance cabling.
Electrical Characteristics
The electrical specs are critical for ensuring reliable data transmission:
- Frequency Range: 1–500MHz. This supports 10Gbps Ethernet (which requires up to 500MHz) and future high-frequency applications like 40Gbps or 100Gbps over twisted-pair cables.
- Working Voltage: 125V. This is sufficient for most low-voltage cabling systems.
- Withstand Voltage: DC1000V (AC750V) for 1 minute without breakdown or arcing. This protects the jack from transient voltage spikes (e.g., lightning strikes or power surges).
- Near-End Crosstalk (NEXT): ≥4dB. The high-low dislocation contact pin design reduces crosstalk by separating adjacent pins vertically, which minimizes signal interference between pairs.
- Insulation Resistance: Initial value ≥100MΩ; after constant damp heat test ≥100MΩ. This ensures that the jack maintains signal integrity even in high-humidity environments.
Mechanical Properties
The mechanical specs ensure the jack is durable and easy to use:
- Insertion/Pull Force: Insertion force ≤20N; pull-out force ≥20N. This balance makes it easy to plug in cables while preventing accidental disconnections (critical for data centers).
- Connector Connection Device: 50N for 60±5 seconds. This test ensures that the jack’s locking mechanism is robust enough to withstand physical stress.
- IDC Terminal Compatibility: 22–26AWG twisted-pair cables. This flexibility allows technicians to use a variety of cables (e.g., solid or stranded) depending on the application.
Durability
The product’s durability specs are designed for long-term use:
- Plug/Socket Insertions: 750 times. This is 50% higher than the industry average of 500 times, making it ideal for environments where cables are frequently reconnected (e.g., office cubicles).
- Wire Terminations: 250 times. This allows technicians to re-terminate wires multiple times without damaging the IDC terminals.
Material and Surface Treatment
The materials used are chosen for conductivity, durability, and environmental friendliness:
- Metal Materials: Gold needles (phosphor bronze gold-plated 6–50U); IDC terminals (phosphor bronze nickel-plated). Gold plating ensures low contact resistance and corrosion resistance; nickel plating provides additional protection for IDC terminals.
- Non-Metal Materials: PC polycarbonate (for the wire cover and housing) and PA66 nylon 66 (for internal components). These materials are heat-resistant, impact-resistant, and RoHS-compliant.
- PCB Material: FR4 (flame-retardant). This ensures the jack meets fire safety standards for indoor use.
Environmental Performance
The product can operate in a wide range of conditions:
- Temperature Range: -25°C to +70°C. This makes it suitable for cold storage facilities, hot industrial plants, and other extreme environments.
- Humidity: ≤85% (at 85°C±3°C). This ensures the jack maintains performance in high-humidity areas like coastal regions.
- Salt Spray Test: 48 hours (per ISO 9227 standards). This test simulates coastal environments and ensures the jack’s metal components do not corrode.
Application Scenarios: Where This Jack Shines
The SMT-1041T8C6A-FTP keystone jack’s versatility makes it suitable for a wide range of applications. Here are some key scenarios where it delivers exceptional value:
Data Centers
Data centers require high-speed, reliable connectivity to support cloud computing, big data, and AI applications. The CAT6A jack’s 10Gbps support and low NEXT make it ideal for connecting servers, switches, and storage devices. Its 360° shielding prevents EMI from adjacent equipment, ensuring stable data transmission. The toolless design also simplifies cable management during data center expansions or reconfigurations.
Enterprise Office Buildings
Office buildings need flexible cabling systems to support employee workstations, conference rooms, and IoT devices. The jack’s compatibility with T568A/B standards and 22–26AWG cables allows technicians to adapt to different wiring setups. Its durability (750 insertions) ensures it can handle frequent cable changes in cubicles or meeting rooms. The compact form factor fits into standard patch panels and wall plates, making it easy to integrate into existing systems.
Industrial Facilities
Industrial plants are often exposed to EMI from heavy machinery, high temperatures, and humidity. The jack’s 360° shielding and wide temperature range (-25°C to +70°C) make it suitable for these environments. It can be used to connect industrial control systems, PLCs, and IoT sensors—ensuring reliable data transmission even in harsh conditions.
Healthcare Settings
Hospitals and clinics require cabling systems that are reliable and compliant with strict standards. The jack’s EMI shielding prevents interference with medical equipment (e.g., MRI machines, patient monitors), while its RoHS compliance ensures it is safe for use in patient areas. The toolless design also reduces installation time, which is critical for minimizing disruption to hospital operations.
Smart Homes
Smart homes rely on high-speed internet for IoT devices (e.g., security cameras, smart thermostats, streaming devices). The CAT6A jack’s 10Gbps support ensures smooth streaming of 4K/8K content and responsive IoT controls. Its compact size fits into wall plates, making it aesthetically pleasing for home environments. The toolless design also allows homeowners to install or reconfigure the jack without professional help.
Q&A Section: Addressing Common Questions
Below are answers to frequently asked questions about the SMT-1041T8C6A-FTP keystone jack:
Q: Does this jack support both T568A and T568B wiring standards?
A: Yes, the jack is designed to meet both standards. The wire sequence labels are clearly marked on the dust-proof wire cover, making it easy to terminate wires accurately regardless of the standard used.
Q: What is the maximum data transfer rate supported by this jack?
A: The jack supports up to 10Gbps over twisted-pair cables, which is the standard for CAT6A cabling. It also supports future high-frequency applications up to 500MHz.
Q: Is the jack suitable for outdoor use?
A: While the jack can operate in a wide temperature range (-25°C to +70°C), it is designed for indoor use. For outdoor applications, it should be installed in a weatherproof enclosure to protect it from rain, snow, and direct sunlight.
Q: How many times can the IDC terminals be re-terminated?
A: The IDC terminals are designed to handle up to 250 wire terminations. This allows technicians to reconfigure wires multiple times without damaging the terminals.
Q: Does the jack come with a warranty?
A: Simante offers a 5-year warranty for the SMT-1041T8C6A-FTP keystone jack. This warranty covers defects in materials and workmanship under normal use.
Q: Can this jack be used with modular distribution frames?
A: Yes, the jack’s embedded design allows it to be installed on modular distribution frames. This enhances flexibility in cabling setups, as technicians can add or remove jacks as needed.
Q: What is the packaging quantity for this product?
A: Regular packaging includes 10 boxes per carton, 50 pieces per box, totaling 500 pieces per carton. Custom packaging options are available upon request.
Q: Is the product RoHS compliant?
A: Yes, the jack meets all RoHS environmental standards, which restrict the use of hazardous substances like lead, mercury, and cadmium. This makes it safe for use in global markets.
Q: How does the high-low dislocation contact pin design reduce crosstalk?
A: The high-low dislocation design separates adjacent contact pins vertically, which reduces the electromagnetic coupling between pairs. This minimizes near-end crosstalk (NEXT) and improves signal integrity at high frequencies.
Q: Can this jack be used with both solid and stranded twisted-pair cables?
A: Yes, the IDC terminals are compatible with both solid (22–24AWG) and stranded (24–26AWG) twisted-pair cables. This flexibility allows technicians to choose the best cable for their application.
References
1. Telecommunications Industry Association (TIA). TIA/EIA-568-C.2: Commercial Building Telecommunications Cabling Standard—Balanced Twisted-Pair Cabling. 2012.
2. Ministry of Industry and Information Technology of the People’s Republic of China. YD/T 926.1-2009: General Specification for Telecommunications Distribution Frames. 2009.
3. Ministry of Industry and Information Technology of the People’s Republic of China. YD/T 926.3-2009: Specification for Telecommunications Distribution Frames—Part 3: Keystone Jacks. 2009.
4. Brown, L. (2021). High-Speed Data Cabling: A Comprehensive Guide to CAT6A and Beyond. McGraw-Hill Professional.
5. European Committee for Electrotechnical Standardization (CENELEC). EN 50173-1:2018: Information Technology—Generic Cabling for Customer Premises—Part 1: General Requirements. 2018.
Conclusion
The SMT-1041T8C6A-FTP 180 Degree Shielded CAT6A Toolless Keystone Jack is more than just a connectivity component—it’s a solution that addresses the evolving needs of modern network systems. Its advanced features (360° shielding, high-low contact pins, toolless termination) set it apart from competitors, while Simante’s manufacturing excellence ensures consistent quality and reliability. Whether used in data centers, office buildings, industrial facilities, or smart homes, this jack delivers high-speed, stable connectivity that meets global standards. As the demand for faster, more reliable networks continues to grow, products like this will play a critical role in building the digital infrastructure of the future.
