180 Degree Shielded CAT7 Toolless Keystone Jack for High-Performance Structured Cabling

In modern structured cabling, every connection point matters. A high-speed network is not determined only by the cable installed in the ceiling or the switch selected for the equipment room; it is also shaped by the performance of each connector, socket, patch panel module, and termination interface. The SMT-1061T8C7-FTP 180 Degree Shielded CAT7 Toolless Keystone Jack is designed for demanding copper cabling environments where stable transmission, electromagnetic protection, efficient installation, and long-term mechanical durability are required.

This product belongs to the CAT7 keystone jack category and is developed for copper structured cabling systems that require frequency performance up to 500 MHz. It supports category 7 transmission requirements, follows T568A and T568B wiring schemes, and is suitable for work area outlets, distribution frames, modular patch panels, equipment connection points, and communication sockets between devices and users. With a compact embedded structure, a 180 degree wiring direction, a 360 degree shielded metal housing, and a toolless termination design, it provides installers and system integrators with a practical solution for high-density and high-reliability projects.

For enterprise networks, data centers, intelligent buildings, industrial communication rooms, smart home systems, and automation equipment, the stability of the physical layer is a foundation for everything above it. If a connector suffers from poor termination, unstable shielding, weak contact pressure, or low durability, the entire channel may experience signal loss, crosstalk, packet errors, or maintenance problems. This shielded CAT7 toolless keystone jack is engineered to reduce these risks by combining a robust zinc alloy shell, phosphor bronze contacts, IDC termination for 22 to 26 AWG twisted pair conductors, clear wiring labels, and a compact modular form that can be used with compatible structured cabling accessories.

Beyond the product itself, the manufacturer behind it has nearly two decades of experience in network cabling solutions and optical fiber products. With engineering teams, technical personnel, regular and customized production lines, injection molding capacity, automatic assembly equipment, testing capability, and export experience across multiple regions, the company supports both standard product supply and OEM or ODM customization. This combination of product design and manufacturing strength gives the CAT7 toolless keystone jack a competitive advantage in quality consistency, installation efficiency, and project adaptability.

SMT-1061T8C7-FTP 180 Degree Shielded CAT7 Toolless Keystone Jack

Product Overview and Core Positioning

The SMT-1061T8C7-FTP 180 Degree Shielded CAT7 Toolless Keystone Jack is a universal connector-level component designed for structured copper cabling systems. It is intended to connect horizontal cabling with work area cabling on the same floor of a building and can also serve as a conversion or adapter connection point between wiring equipment and terminal devices. The product can be installed into compatible modular patch panels, faceplates, data outlets, and other keystone-compatible structures.

The 180 degree design means that the cable approaches the module in a straight-back direction, making it practical for many patch panel and wall outlet installations where routing space must be controlled. In compact cabinets or behind wall plates, a properly oriented keystone jack can reduce unnecessary cable bending, improve cable management, and help installers maintain the cable’s twist integrity during termination. This is important because high-frequency copper transmission depends not only on the rated category of the components but also on how consistently the installation preserves the electrical geometry of the twisted pairs.

The product is shielded and suitable for FTP or other shielded twisted pair cabling environments. Its 360 degree all-round shielding shell is designed to reduce electromagnetic interference and support stable channel performance in environments where power cables, electronic equipment, wireless systems, motors, lighting systems, or other interference sources may exist. The all-metal zinc alloy die-casting structure and grounding design help create a reliable shielding path when installed with compatible shielded cabling and properly grounded infrastructure.

The toolless termination design is another major benefit. Traditional punch-down keystone jacks often require a separate impact tool and more installation time. A toolless design allows the installer to place the conductors according to the wiring label and close the termination cover to complete IDC contact engagement. This can reduce labor time, simplify training, improve repeatability, and lower the chance of tool-related damage. For large cabling projects involving hundreds or thousands of ports, even small reductions in termination time per port can translate into significant labor savings.

Why CAT7 Connectivity Matters

Category 7 cabling components are used in applications requiring high shielding performance and high-frequency capability. While many office networks still rely on CAT5e or CAT6, higher-category shielded systems are increasingly selected for future-ready installations, especially where network traffic, electromagnetic interference, equipment density, or long-term upgrade planning must be considered. A CAT7 keystone jack with a frequency range of 1 to 500 MHz provides a strong physical interface for cabling channels that must support high-speed data communication with stable electrical behavior.

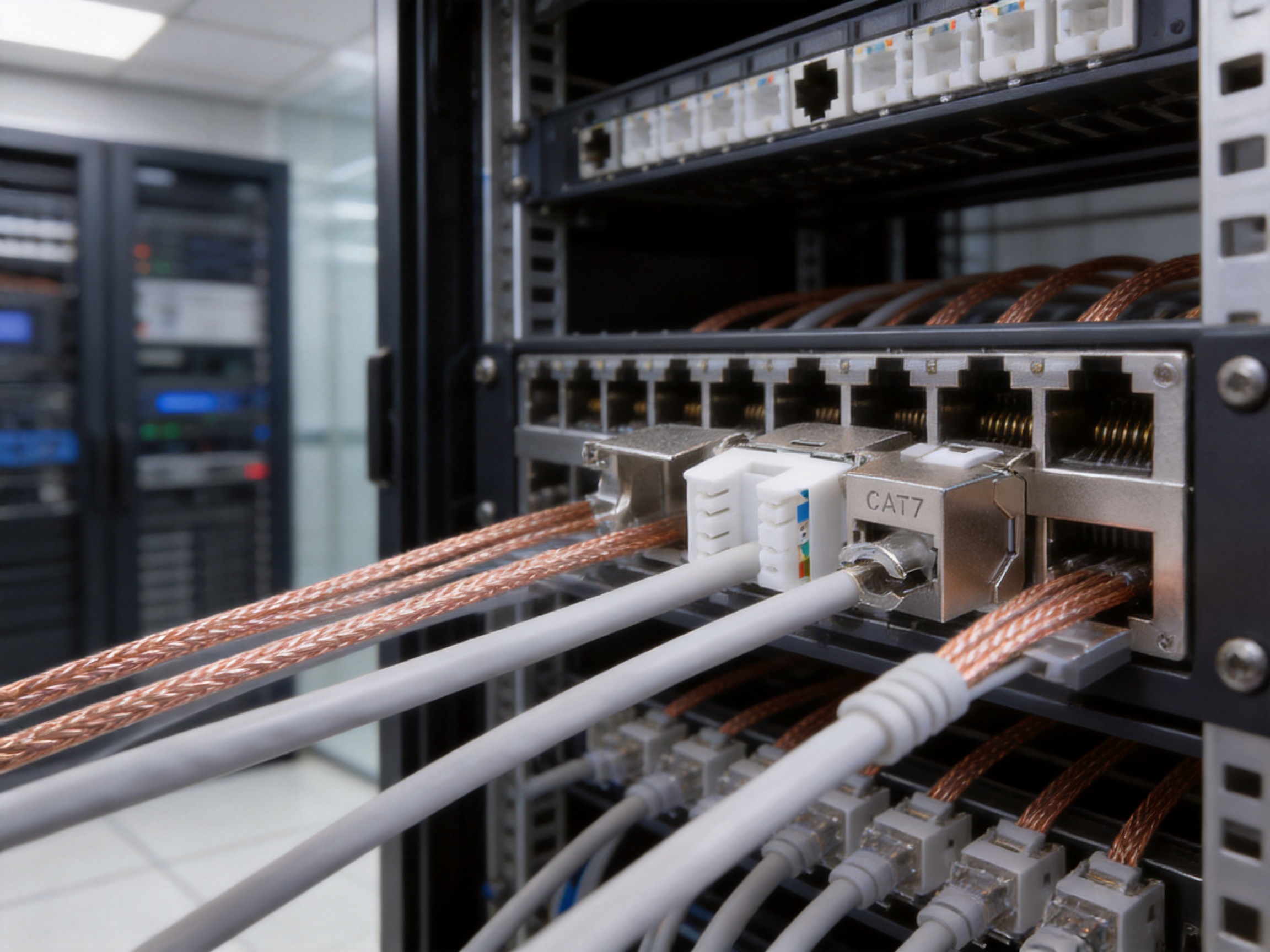

In a structured cabling system, the keystone jack is part of the permanent link or channel. Its role is not passive in the quality sense; it actively influences insertion loss, return loss, crosstalk, shielding continuity, contact resistance, and mechanical reliability. A connector that is poorly designed can become the weakest point of an otherwise high-grade cable system. The high and low dislocation technology used in the contact pin arrangement of this product is intended to reduce near-end crosstalk, helping the jack maintain better signal separation between pairs.

In practice, this means the product is suitable for network environments where transmission integrity and shielding are priorities. Examples include commercial offices with centralized patch panels, security monitoring networks, access control systems, building automation networks, multimedia systems, industrial offices, high-density work areas, and communication rooms where many copper links are gathered in limited space. In these environments, stable connectors help reduce troubleshooting time and support more predictable network performance.

Key Technical Features

The product provides a combination of electrical, mechanical, material, and environmental characteristics that make it suitable for professional structured cabling work. It supports T568A and T568B wiring sequences, allowing installers to match the wiring standard required by the project. The universal wiring label is clearly marked on the dust-proof wire cover, helping users complete termination accurately and quickly.

The connection method combines an RJ45 jack interface for patch cord insertion and IDC termination for horizontal cabling. The IDC terminal is designed to clamp 22 to 26 AWG twisted pair conductors. This covers a common conductor range used in network cabling and gives the installer flexibility when matching the keystone jack with different qualified cables. The product also supports repeated plug and socket insertion up to 750 cycles and wire termination up to 250 cycles, indicating a design suitable for long-term service and maintenance.

The electrical characteristics include a frequency range of 1 to 500 MHz, working voltage of 125 V, withstand voltage of DC 1000 V or AC 750 V for one minute without breakdown or arcing, and insulation resistance with an initial value of at least 100 megaohms. After constant damp heat testing, the insulation resistance remains at least 100 megaohms. These parameters show that the product is intended to maintain insulation stability under defined environmental stress.

The mechanical characteristics include insertion force not more than 20 N and pull-out force not less than 20 N. This balance is important: the plug should be easy enough to insert during daily use but secure enough to prevent accidental disconnection. The effect of the connector connection device is specified at 50 N for 60 plus or minus 5 seconds, demonstrating mechanical resistance to applied force under test conditions.

Feature	Specification or Benefit	Practical Value
Product Type	180 degree shielded CAT7 toolless keystone jack	Suitable for professional copper structured cabling systems
Frequency Range	1 to 500 MHz	Supports high-frequency transmission requirements for category 7 environments
Wiring Standards	T568A and T568B	Compatible with common installation practices
Termination Method	Toolless IDC termination	Improves installation speed and consistency
Shielding	360 degree all-round metal shielding shell	Helps protect against EMC electromagnetic interference
Housing Material	All-metal zinc alloy die-casting structure	Provides durability, shielding continuity, and stable grounding support
Contact Material	Phosphor bronze with gold plating	Supports conductivity, corrosion resistance, and long service life
IDC Terminal Material	Nickel-plated phosphor bronze	Provides reliable conductor clamping and contact stability
Cable Range	22 to 26 AWG twisted pair	Compatible with common copper network cables
Durability	750 plug insertion cycles and 250 wire terminations	Suitable for long-term installation and maintenance operations

Advantages Over Conventional Keystone Jacks

Compared with many basic unshielded or tool-required keystone jacks, this CAT7 shielded toolless module offers several important advantages. The first is shielding performance. In environments where electromagnetic interference is a concern, unshielded connectors cannot provide the same protective continuity as a fully shielded design. This product’s 360 degree metal shell helps surround the connection area and contributes to a continuous shield path when used with suitable shielded cable and grounding accessories.

The second advantage is installation efficiency. Toolless termination reduces dependence on impact tools and can make the termination process cleaner and faster. In projects with a large number of ports, installers often face time pressure, limited workspace, and repetitive tasks. A dust-proof wire cover with clear universal wiring labels helps reduce wiring errors, while the toolless mechanism helps complete termination with fewer separate steps. This advantage is particularly valuable for contractors who need both speed and consistent quality.

The third advantage is the compact embedded modular design. The jack can be installed into distribution frames to form a modular patch panel. This supports flexible system planning because the same keystone module can be used across different compatible components. If a project requires a mixture of copper categories, shielded and unshielded modules, or future port changes, modular construction can reduce replacement difficulty and inventory complexity.

The fourth advantage is material quality. The gold needle is made of phosphor bronze with gold plating, while the IDC card wire terminal uses nickel-plated phosphor bronze. Phosphor bronze is widely used in connector contacts because it combines elastic recovery, conductivity, and fatigue resistance. Gold plating improves surface conductivity and corrosion resistance at the mating interface. Nickel plating on IDC terminals helps protect the metal surface and supports stable long-term contact with the conductor.

The fifth advantage is mechanical reliability. The product is rated for 750 insertion cycles at the plug and socket interface and 250 wire terminations. For a component that may be installed in an office outlet, patch panel, or equipment room, repeated connection and maintenance cycles are a real-world concern. A jack that maintains physical and electrical integrity after repeated operations can reduce replacement costs and service interruptions.

Finally, the product’s design supports both T568A and T568B wiring patterns. This is a simple but essential advantage because different projects, regions, or customer standards may require different pinout conventions. Clear labeling helps installers maintain consistency, especially when multiple technicians work on the same site.

Shielding and Grounding Design

Electromagnetic compatibility is one of the defining features of a shielded high-performance connector. As networks become denser and buildings contain more electrical and electronic systems, cabling pathways may pass near power distribution, lighting controls, HVAC equipment, wireless access points, elevators, motors, and automation devices. These sources can introduce electromagnetic noise. While cable design is important, the connector must also protect the termination zone, where pair geometry is most vulnerable.

The 360 degree all-round shielding shell of this keystone jack is designed to provide comprehensive protection around the RJ45 and termination areas. The all-metal zinc alloy die-casting housing gives the product strength and forms a conductive enclosure. When paired with shielded cable and properly grounded patch panels or faceplates, the shielding system can help reduce external interference and improve signal integrity.

A unique grounding design improves convenience and reliability. Grounding is often a practical challenge in shielded cabling systems because it must be continuous and correctly implemented. A connector that makes grounding difficult can lead to inconsistent field results. By integrating a reliable and convenient grounding concept into the module, the product helps installers achieve better shielding continuity while reducing complexity.

Competitors may offer shielded keystone jacks with partial shielding or less robust housing materials. Some may rely on thin stamped metal covers that can deform during handling or provide less complete protection around the termination point. The die-cast zinc alloy approach provides a more solid feel, better mechanical protection, and a more secure housing structure. For projects requiring long service life and stable transmission, this difference can be significant.

Toolless Termination and Installation Efficiency

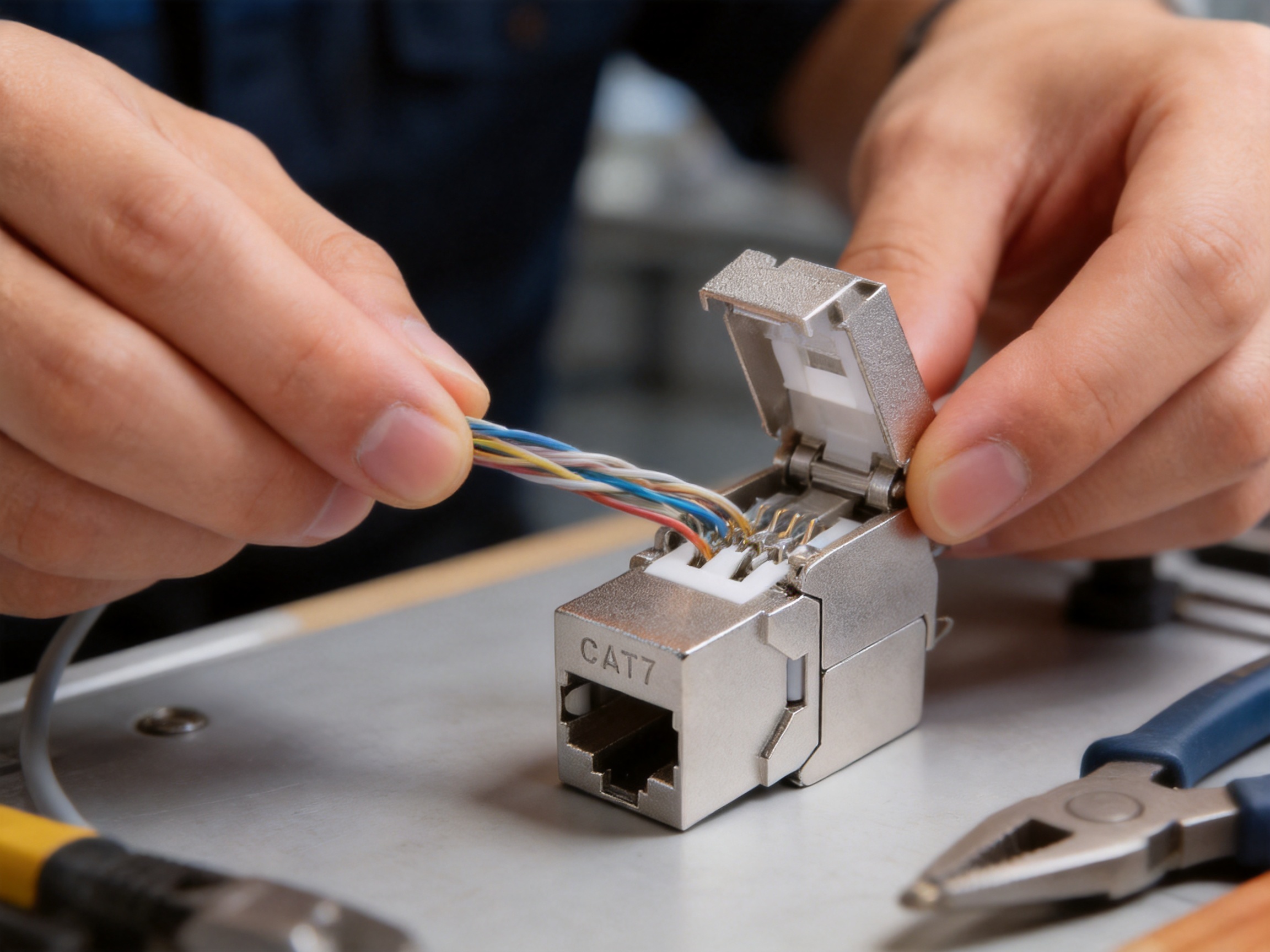

The toolless termination system is designed to simplify work in the field. Instead of using a punch-down impact tool to seat each conductor individually, the installer arranges the cable pairs according to the selected T568A or T568B color code, places the conductors into the designated channels, and closes the termination cover. The IDC contacts pierce or grip the conductor insulation to establish electrical contact. This process supports faster and more repeatable termination.

Clear labeling on the dust-proof wire cover is especially useful during installation. In structured cabling projects, errors often occur when conductors are placed in the wrong sequence, when pair twists are untwisted too far, or when the installer must interpret unclear markings in poor lighting. A clearly marked universal wiring label reduces guesswork and supports accurate termination. It also supports quality control because supervisors can visually confirm wiring alignment before final closure.

The 180 degree cable entry direction helps maintain a clean installation path. In patch panels, cables typically approach from the rear, so a straight-back orientation can make routing intuitive. In wall outlets, the suitability depends on the depth and cable approach of the box, but a 180 degree layout often helps reduce sharp cable bends. Maintaining bend radius is important for high-performance twisted pair cabling because excessive bending can alter pair spacing and impedance.

Another practical advantage is reduced tool dependency. Contractors may work across multiple sites, and missing or inconsistent tools can slow installation. A toolless module allows teams to perform reliable terminations with fewer specialized accessories. This does not eliminate the need for proper cable preparation tools or testing instruments, but it reduces one step in the process and can improve productivity.

Electrical Performance and Signal Integrity

The keystone jack is specified for a frequency range of 1 to 500 MHz, which is appropriate for category 7 transmission requirements. High-frequency transmission places greater demands on connector design because crosstalk, return loss, impedance mismatch, and insertion loss become more sensitive to small mechanical details. Contact geometry, pair separation, PCB layout, shielding, and termination consistency all affect performance.

The contact pin arrangement uses high and low dislocation technology to reduce near-end crosstalk. Near-end crosstalk occurs when a signal transmitted on one pair couples into another pair at the same end of the link. Because the connector is a point where pair geometry changes from cable form to contact interface, it is a critical area for controlling crosstalk. By staggering contact positions and optimizing internal structure, the product can better manage pair interaction.

The product includes a PCB made from FR4 material. FR4 is widely used in electronic products due to its mechanical strength, dimensional stability, and electrical insulation properties. In a keystone jack, the PCB helps manage signal routing from the IDC termination area to the RJ45 contact interface. Consistent PCB quality supports predictable electrical behavior from batch to batch.

Insulation resistance of at least 100 megaohms, both initially and after damp heat testing, indicates attention to dielectric stability. In environments where humidity may fluctuate, insulation performance helps prevent leakage current, signal degradation, or premature failure. The withstand voltage rating of DC 1000 V or AC 750 V for one minute without breakdown or arcing adds another layer of electrical safety assurance under specified test conditions.

Although the product specification notes near-end crosstalk attenuation as at least 4 dB, installers and project engineers should always evaluate the complete channel according to the applicable cabling standard and test requirements. The final installed channel performance depends on cable quality, patch cord quality, termination workmanship, grounding, patch panel design, and test equipment calibration. The keystone jack provides a high-quality component foundation, but system-level performance must be confirmed after installation.

Mechanical Durability and Daily Reliability

A keystone jack must withstand more than initial installation. It may experience repeated patch cord insertions, accidental pulls, panel maintenance, cleaning, relocation, or network upgrades. Mechanical durability is therefore a key part of product value. The specified insertion force of not more than 20 N supports user-friendly plug insertion, while the pull-out force of not less than 20 N provides secure retention under normal use.

The plug and socket interface is rated for 750 insertion cycles. This is important for patch panels in communication rooms, where patch cords may be reconfigured during network changes. It is also relevant for work area outlets in offices, classrooms, laboratories, and industrial spaces where devices may be moved or replaced. A durable jack reduces the risk of contact wear, loose connection, or intermittent faults.

The IDC termination durability of 250 wire terminations supports maintenance flexibility. In real-world projects, installers may need to reterminate a cable due to testing results, routing changes, cable replacement, or customer modifications. A jack that can tolerate repeated wire termination operations provides more resilience during installation and service. However, best practice is still to terminate carefully the first time and avoid unnecessary rework.

The housing materials also contribute to durability. PC polycarbonate and PA66 nylon 66 are used for non-metallic components. These plastics are known for strength, heat resistance, dimensional stability, and suitability for electrical products. The metal components are selected for conductivity, elasticity, corrosion resistance, and shielding. Together, these materials create a connector that is compact but not fragile.

Material Selection and Surface Treatment

The performance of a keystone jack is closely linked to its materials. A connector is a small component, but it includes multiple functional zones: the mating contact interface, IDC termination area, shielding body, plastic insulation structure, PCB, wire guide, and dust-proof cover. Each zone requires suitable material properties.

The gold needle contact uses phosphor bronze with gold plating. Phosphor bronze provides spring performance, meaning it can maintain contact pressure after repeated insertions. Gold plating provides a stable conductive surface and helps resist oxidation. The specified gold-plated layer thickness range is 6 to 50 microinches, allowing adaptation to different customer requirements or product configurations. In network connectors, the thickness and quality of gold plating affect durability, conductivity, and corrosion resistance.

The IDC wire terminal uses nickel-plated phosphor bronze. The IDC area must cut through insulation and maintain pressure on the copper conductor. It requires hardness, elasticity, and resistance to corrosion. Nickel plating provides a protective surface and supports stable contact over time. A weak IDC terminal can cause intermittent faults that are difficult to diagnose; therefore, strong terminal material is essential.

The metal shielding body uses all-metal zinc alloy die casting. Zinc alloy is suitable for complex shapes, consistent dimensions, and solid mechanical protection. Die casting allows the housing to integrate shielding and grounding features in a compact structure. Compared with simple sheet metal parts, a die-cast structure can provide a more rigid shell, better assembly stability, and a professional appearance.

The plastic components use PC polycarbonate and PA66 nylon 66. PC is valued for impact resistance and dimensional stability, while PA66 offers mechanical strength and heat resistance. For a keystone jack, these properties help maintain conductor position, contact alignment, and housing fit. The PCB uses FR4, a standard and reliable substrate material for electronic interconnection structures.

Environmental Performance and Storage Reliability

The product is designed for operation in temperatures from minus 25 degrees Celsius to plus 70 degrees Celsius, with humidity up to 85 percent under specified temperature conditions. This makes it suitable for many indoor network environments, communication rooms, office buildings, residential systems, industrial control spaces, and equipment cabinets. While it is not intended to replace outdoor-rated waterproof connectors, its environmental range supports reliable performance across typical building conditions.

Environmental performance also includes compliance with ROHS requirements. This demonstrates attention to restricted substances and supports use in markets where environmental compliance is necessary. For buyers, ROHS compliance is not only a regulatory matter but also part of responsible supply chain management.

The salt spray test conditions are specified in detail. The salt solution pH before atomization is between 6.5 and 7.2 at 35 plus or minus 2 degrees Celsius. The solution concentration is 5 plus or minus 0.1 percent by mass, prepared with sodium chloride and distilled or deionized water. Continuous atomization is adopted, with a recommended duration of 48 hours. These conditions help evaluate corrosion resistance under controlled exposure. For metal connector components, corrosion resistance is important because oxidation can affect conductivity, grounding, and appearance.

Packaging and storage requirements also support long-term reliability. The product is placed into a special blister bag and then into a cardboard box, with accessories included and labeling applied to identify product model and quantity. Packaged products should be stored in a warehouse with ambient temperature from minus 5 degrees Celsius to plus 30 degrees Celsius, relative humidity not more than 70 percent, and no acid, alkali, or other corrosive gases in the surrounding air. Under these conditions, the storage period is three years.

Manufacturing Strength Behind the Product

A high-quality keystone jack requires more than a good design. It requires stable manufacturing, process control, material management, assembly accuracy, inspection, and testing. Yuyao Simante Network Communication Equipment Co., Ltd. is a professional manufacturer of network cabling solutions and optical fiber products integrating design, development, sales, and service. With nearly 20 years of industry service, the company focuses on meeting customer requirements through technical expertise and practical manufacturing capability.

The company has more than 10 engineers and over 30 full-time technical personnel. This technical foundation supports product development, quality improvement, process optimization, and customized project support. For a component such as a CAT7 shielded keystone jack, engineering capability is essential because small structural details can influence electrical performance, mechanical reliability, assembly efficiency, and compatibility with other cabling accessories.

The factory operates 10 regular and customization production lines, 10 fully automatic injection molding machines, 20 semi-automatic injection molding machines, and 8 automatic assembly machines. This equipment base supports both volume production and customized orders. A stable annual output of more than 9 million units demonstrates production scale and experience. For buyers and distributors, capacity matters because structured cabling projects often require consistent supply, matching batches, and reliable delivery schedules.

Advanced manufacturing processes begin with design source control. The company emphasizes mature research and development systems to ensure quality stability from the design stage. This is important because quality cannot be fully inspected into a product after manufacturing; it must be designed into the product through material selection, tolerance control, mold accuracy, assembly structure, and test criteria. For the CAT7 toolless keystone jack, the design must balance compact form, shielding continuity, conductor management, contact pressure, and installation convenience.

Injection molding capability is particularly relevant because the plastic parts inside a keystone jack must be precise. Wire channels, conductor separators, latch features, covers, and internal supports must align correctly. If molded parts vary too much, termination quality and contact alignment can suffer. Automatic and semi-automatic injection molding equipment helps improve repeatability, while experienced technical personnel can monitor material drying, mold temperature, cycle time, and dimensional stability.

Automatic assembly machines improve consistency in operations that require repeatable positioning and pressure. Connector manufacturing involves small components such as contacts, terminals, covers, PCB parts, and shielding shells. Automation helps reduce human variation, increase throughput, and maintain stable assembly quality. Combined with process inspection, it supports consistent product batches for domestic and international customers.

Quality Control and Testing Philosophy

Product quality in structured cabling is measured not only by appearance but also by performance after installation. The company focuses on high-end markets and therefore applies strict production management and product testing. Customers often require comprehensive testing, especially for products used in professional cabling systems. A strong testing philosophy helps ensure that keystone jacks meet both standard requirements and project expectations.

Quality control for this type of product may include incoming material inspection, contact plating inspection, dimensional measurement, insertion and withdrawal force testing, termination reliability checks, insulation resistance testing, withstand voltage testing, continuity inspection, shielding continuity evaluation, salt spray testing, damp heat testing, packaging inspection, and final sampling. While the exact production workflow may vary by order and customer requirement, the product information shows that electrical, mechanical, environmental, and material characteristics are defined in detail.

For OEM and ODM customers, the ability to customize while maintaining quality is especially valuable. Customization may involve packaging, labeling, gold plating thickness, housing details, customer-specified accessories, or compatibility with particular panels and faceplates. The company’s production lines and engineering team support such flexibility. This is a key advantage over suppliers that can only provide standard catalog products without technical adaptation.

Stable export volume in Europe, Australia, Africa, the Middle East, and Southeast Asia indicates the company’s experience with varied market requirements. Different regions may have different expectations regarding standards, packaging, documentation, price structure, and delivery. A manufacturer with international experience can communicate more effectively with distributors, contractors, and system integrators.

Applications in Structured Cabling Systems

The CAT7 shielded toolless keystone jack can be used in a wide range of copper network applications. In office buildings, it can be installed in wall faceplates or floor boxes to provide work area connections for computers, phones, access points, printers, and other networked equipment. In communication rooms, it can be installed into modular patch panels to create organized distribution points for horizontal cabling.

In smart home systems, shielded high-performance cabling may be used for data distribution, multimedia connections, security systems, wireless access point backhaul, and automation controllers. A compact keystone jack allows installers to create clean outlets and central panels. In automation environments, shielding can be particularly helpful because control equipment, power devices, and motors may create electromagnetic noise.

In educational facilities and public buildings, network outlets may experience frequent use and device changes. A keystone jack with 750 insertion cycles provides practical durability. In healthcare or laboratory spaces, stable connections and electromagnetic management may be important for data systems and sensitive equipment environments. In retail or hospitality projects, modular installation supports efficient deployment and later reconfiguration.

The product can also be used by system integrators who need a reliable component for custom panels, equipment cabinets, or communication enclosures. Because it follows common wiring schemes and uses a universal modular format, it can fit into many structured cabling designs when compatibility is confirmed.

Installation Best Practices

To achieve the best performance, installers should use the keystone jack as part of a complete qualified cabling system. The cable, patch cord, patch panel, faceplate, grounding system, and test method should all match the project requirements. A high-performance connector cannot compensate for poor cable quality, excessive untwisting, improper grounding, or damaged conductors.

Before termination, the installer should confirm whether the project uses T568A or T568B. Consistency is essential. Mixing wiring schemes within the same link can create connection errors unless a crossover configuration is intentionally required. The universal wiring label on the dust-proof cover helps guide conductor placement, but the installer must still follow the project documentation.

When preparing the cable, the jacket should be stripped carefully without damaging the conductor insulation or shield. Pair twists should be preserved as close as practical to the termination point. Excessive untwisting can increase crosstalk and reduce high-frequency performance. For shielded cable, the foil or braid should be managed according to the grounding design of the connector and the overall cabling system.

After the conductors are placed in the wire channels, the toolless cover should be closed evenly and fully. The installer should confirm that the latch is secure and that the cable strain is properly managed. Sharp bends near the rear of the connector should be avoided. The completed link should be tested with appropriate field test equipment according to the project’s required standard and category.

Packaging, Logistics, and Project Supply

Packaging is part of product quality because it protects the connector during transport and storage. The regular packing quantity is 10 boxes per carton, 50 pieces per box, and 500 pieces per carton. This packaging structure is practical for distributors, contractors, and large project purchasing because it supports counting, handling, inventory planning, and site distribution.

Each product is placed into a special blister bag and then into a cardboard box, with accessories included. A label showing product model and quantity is attached to the carton. Clear labeling reduces warehouse confusion and helps project managers track material usage. For OEM or customer-specified packaging, the product can be marked according to customer requirements.

For large structured cabling projects, consistent packaging and supply are important. A project may require thousands of keystone jacks delivered in stages. If packaging is unclear or quantities vary, installation teams can lose time verifying materials. Standardized carton quantities and labeling help keep deployment organized.

Competitive Value for Buyers and Integrators

From a buyer’s perspective, the value of this keystone jack is found in the combination of performance, installation speed, durability, shielding, manufacturing scale, and customization support. Many low-cost connectors compete primarily on price, but the hidden cost of poor connectors can be much higher than the initial saving. Failed tests, retermination labor, intermittent faults, replacement work, and customer dissatisfaction can all increase project cost.

This product addresses those risks through a shielded CAT7 design, toolless termination, durable materials, modular compatibility, and defined test parameters. For contractors, faster installation and fewer errors improve job profitability. For distributors, stable manufacturing capacity and export experience support reliable supply. For end users, the benefit is a more dependable cabling infrastructure with better protection against interference and future network demands.

Compared with competitors that offer only basic CAT6 or unshielded modules, this product provides a higher-category shielded solution. Compared with tool-required shielded jacks, it offers improved installation convenience. Compared with fragile or partially shielded modules, its all-metal zinc alloy die-cast housing supports better mechanical strength and shielding continuity. Compared with suppliers without engineering depth, the manufacturer’s technical team and production equipment provide stronger support for customization and quality stability.

Role in Copper and Fiber Structured Cabling Portfolios

Although this product is a copper cabling component, it fits into a broader structured cabling product portfolio that may also include fiber system components. Modern buildings often use both copper and fiber. Fiber may be used for backbone connections, long-distance links, data center interconnects, or high-bandwidth aggregation, while copper remains widely used for work area outlets, wireless access points, IP cameras, access control devices, and general endpoint connectivity.

A manufacturer with experience in both copper and optical fiber products can support customers who need complete cabling solutions. This is useful for contractors and distributors because they can source multiple components from a supplier familiar with the overall system. The CAT7 keystone jack contributes to the copper side of that system by providing a reliable endpoint and patching interface.

Structured cabling is a long-term investment. Buildings may remain in service for decades, while network equipment changes every few years. Installing high-quality physical infrastructure helps reduce future upgrade difficulty. A shielded CAT7 keystone jack can be part of a forward-looking cabling strategy where the customer wants strong electrical performance and robust mechanical design from the beginning.

Frequently Asked Questions

What is the main purpose of this CAT7 toolless keystone jack?

Its main purpose is to provide a shielded RJ45 connection point for copper structured cabling systems. It connects horizontal cabling to work area outlets, patch panels, or other modular interfaces while supporting category 7 transmission requirements and a frequency range of 1 to 500 MHz.

Why is the 180 degree design useful?

The 180 degree structure allows the cable to enter from the rear in a straight direction. This can simplify cable routing in patch panels and some outlet installations, reduce unnecessary bending, and support cleaner cable management.

Does the product support both T568A and T568B wiring?

Yes. The dust-proof wire cover includes clear universal wiring labels for both T568A and T568B wiring sequences. Installers should follow the wiring scheme specified by the project and maintain consistency throughout the installation.

What makes the shielding design competitive?

The product uses a 360 degree all-round shielding shell with an all-metal zinc alloy die-cast structure. This helps reduce EMC electromagnetic interference and supports reliable grounding when used with compatible shielded cabling and grounded system components.

What cable conductor sizes can be used?

The IDC terminal is designed for 22 to 26 AWG twisted pair conductors, which are commonly used in copper network cabling systems.

How durable is the jack?

The plug and socket interface is rated for 750 insertion cycles, and the IDC wire termination area is rated for 250 wire terminations. These durability ratings support long-term use, maintenance, and reconfiguration.

What materials are used in the contacts?

The gold needle contact is made from phosphor bronze with gold plating. The IDC wire terminal is made from nickel-plated phosphor bronze. These materials are selected for conductivity, elasticity, corrosion resistance, and contact stability.

Is the product suitable for high-interference environments?

It is designed for shielded cabling environments where electromagnetic interference protection is important. For best results, it should be installed with shielded cable, compatible shielded patch panels or faceplates, and proper grounding practices.

Can it be used in modular patch panels?

Yes. The embedded modular design allows the keystone jack to be installed on distribution frames to form modular patch panels, provided that the panel is compatible with the module format.

What manufacturing strengths support product quality?

The manufacturer has nearly 20 years of experience, more than 10 engineers, over 30 full-time technical personnel, 10 regular and customization production lines, 10 fully automatic injection molding machines, 20 semi-automatic injection molding machines, and 8 automatic assembly machines. This supports stable production, quality consistency, and OEM or ODM customization.

Conclusion

The SMT-1061T8C7-FTP 180 Degree Shielded CAT7 Toolless Keystone Jack is a high-performance copper structured cabling component designed for demanding network installations. Its value comes from the combination of category 7 transmission support, 1 to 500 MHz frequency capability, 360 degree shielding, zinc alloy die-cast housing, reliable grounding design, toolless IDC termination, clear T568A and T568B labeling, durable phosphor bronze contacts, and modular installation compatibility.

For installers, it offers faster and more accurate termination. For system integrators, it provides a dependable component for shielded cabling channels. For distributors and project buyers, it offers a competitive balance of quality, manufacturing capacity, and customization support. For end users, it contributes to a stable and future-ready network infrastructure.

Supported by a manufacturer with extensive experience in network cabling and optical fiber products, advanced production lines, injection molding capability, automatic assembly equipment, engineering personnel, and international market experience, this keystone jack is positioned as a practical and reliable choice for professional structured cabling systems. In a market where network reliability depends on every physical connection, choosing a well-designed shielded CAT7 toolless keystone jack is a strategic decision that can improve installation quality, reduce maintenance risk, and support long-term communication performance.

References

1. YD/T 926.1-2009, Generic Cabling for Customer Premises, General Specification.

2. YD/T 926.3-2009, Generic Cabling for Customer Premises, Connecting Hardware and Patch Cords Specification.

3. ISO/IEC 11801, Information Technology, Generic Cabling for Customer Premises.

4. ANSI/TIA-568 Series, Commercial Building Telecommunications Cabling Standard.

5. IEC 60603-7 Series, Connectors for Electronic Equipment, Detail Specifications for 8-Way Connectors.

6. RoHS Directive Guidance, Restriction of Hazardous Substances in Electrical and Electronic Equipment.

Product: SMT-1061T8C7-FTP 180 Degree Shielded CAT7 Toolless Keystone Jack
